Hikrobot MV-CS040-A0UC Area Scan Camera

Name: Hikrobot MV-CS040-A0UC Area Scan Camera
Brand: Hikrobot
SKU: VS-3983
Availability: InStock

Hikrobot CS Area Scan Camera

Hikrobot MV-CS040-A0UC Area Scan Camera

Hikrobot CS Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Yüksek sinyal-gürültü oranı, geniş dinamik aralık ve yüksek kaliteli görüntüler sağlayan global deklanşörlü CMOS sensör kullanır.
2048 × 2048 çözünürlük, 5,5 μm × 5,5 μm piksel boyutu. Donanım tetikleme, yazılım tetikleme ve serbest çalışma modlarını destekler.
4 taraftan esnek montaj için panellerde montaj delikleri bulunan kompakt tasarım.
USB3 Vision Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

3D Çizimler

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

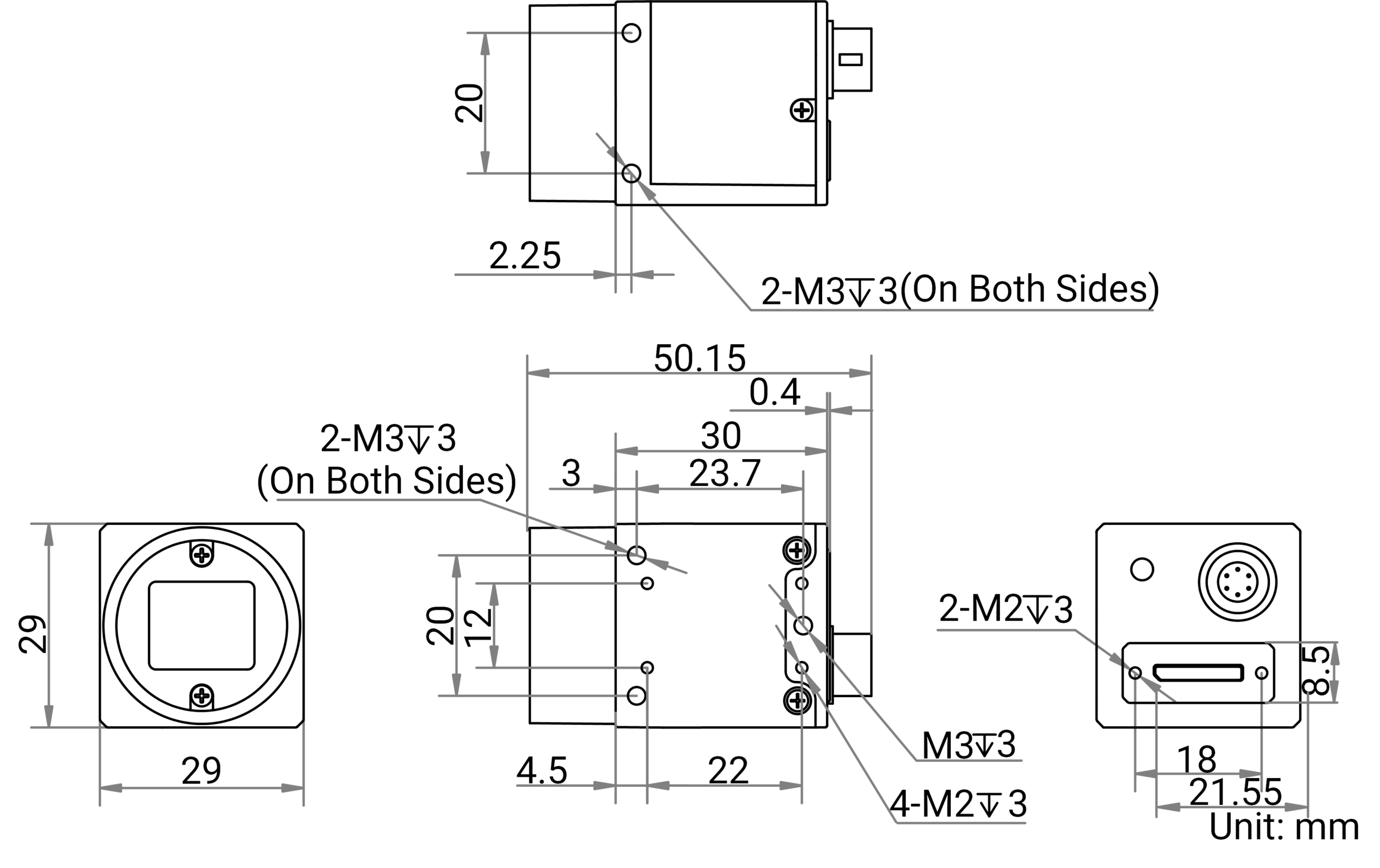

Ölçüler

Software

Model	Product Model	MV-CS040-A0UC
Model	Type	4MP Area Scan Camera, USB3.0, 2nd Gen, Color.
Performance	Sensor type	CMOS, global shutter
	Pixel size	5.5 μm × 5.5 μm
	Sensor size	1″
	Resolution	2048 × 2048
	Max. frame rate	90.1 fps @ 2048 × 2048 Bayer GB 8
	Dynamic range	59.7 dB
	SNR	39.6 dB
	Gain	0 dB to 12 dB
	Exposure time	30 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB 3.0, compatible with USB 2.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports USB 3.0 power supply
	Power consumption	Typ. 2.4 W @ 5 VDC (USB 3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
	Weight	Approx. 88 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
