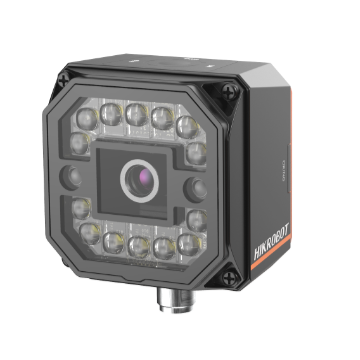

Hikrobot OPS-SCO3001L-08W-WBN Görüntü Sensörü

Name: Hikrobot OPS-SCO3001L-08W-WBN Görüntü Sensörü
Brand: Hikrobot
SKU: VS-6154
Availability: InStock

Hikrobot OPS-SCO3000 Serisi Görüntü Sensörü

Hikrobot OPS-SCO3001L-08W-WBN Görüntü Sensörü

Hikrobot Görüntü Sensörü kategorisine ait ürünümüzün özellikleri:

Yüksek hızlı görüntü işleme için gömülü donanım platformu kullanır.
Nesnenin varlığını, miktarını, konumunu vb. tespit etmek için yerleşik konumlandırma ve ölçüm algoritmaları kullanır.
Giriş ve çıkış sinyalleri için çoklu IO arayüzleri. Cihaz durumunu görüntülemek için çoklu göstergeler.
Aydınlatılan alanda homojen parlaklık sağlamak için ışık kaynağı kullanır.
RS-232, TCP, UDP, FTP, PROFINET, Modbus ve EtherNet/IP dahil olmak üzere birden fazla iletişim protokolünü destekler.

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	OPS-SCO3001L-08W
Model
Tool	Vision tool	Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, color measurement, color size, diameter measurement, line angle Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection Count: Spot count, edge count, contour count, pattern count, learning-based count, color count Recognition: Multi-object count, code recognition, color contrast, color recognition, category recognition, classification registration, object registration, OCR Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture Deep learning: DL classification, DL object detection Defect detection: Anomaly detection
	Solution capacity	Supports importing and exporting solutions, up to 32 solutions can be stored.
	Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Camera	Sensor type	CMOS, global shutter
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1/2.9″
	Resolution	1408 × 1024
	Max. frame rate	60 fps
	Gain	0 dB to 15 dB
	Exposure time	35 μs to 1 sec
	Pixel format	RGB 8, Mono 8
	Mono/color	Color
Electrical feature	Data interface	Fast Ethernet (100 Mbit/s)
	Digital I/O	17-pin M12 connector provides power, Ethernet, digital I/O, and serial port: Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and external button input × 1. Output signal can be set as NPN or PNP.
	Power supply	24 VDC
	Power consumption	Avg.: 13.8 W @ 24 VDC (light source enabled) Max.: 42 W @ 24 VDC (light source enabled)
Mechanical	Lens mount	M12-mount, mechanical focus supported
	Focal length	6 mm – 12 mm – 14.08 mm
	Lens cap	Transparent lens cap by default. Half-polarized or fully-polarized lens cap is optional.
	Light source	14 LEDs, white light by default. Red, blue or IR is optional.
	Indicator	Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
	Dimension	65.2 mm × 65.2 mm × 47 mm (2.6″ × 2.6″ × 1.9″)
	Weight	Approx. 280 g (0.6 lb.)
	Ingress protection	IP67 (under proper installation of lens and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
	Vibration resistance	Meets standard IEC 60068-2-6:2007. Bare device withstands 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
	Shock resistance	Meets standard IEC 60068-2-27:2008. Bare device withstands 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
General	Client software	SCMVS
General	Certification	CE, KC
