Hikrobot MV-IDH2000RF/13NR/05WN Smart Code Reader

Name: Hikrobot MV-IDH2000RF/13NR/05WN Smart Code Reader
Brand: Hikrobot
SKU: VS-2657
Availability: InStock

Hikrobot IDH2000 Serisi Akıllı Kod Okuyucu

Hikrobot MV-IDH2000RF/13NR/05WN Smart Code Reader

Hikrobot Smart Code Reader kategorisine ait ürünümüzün özellikleri:

Farklı 1D kod ve 2D kod tiplerini çözmek için yerleşik kod okuma algoritması.
Noktalar, kusurlar ve düşük kontrast oranına sahip kodları okumak için iyi bir sağlamlık sağlar.
Kod okuma verimliliğini artırmak için sürekli kod okumayı, toplu kod okumayı destekler.
Bluetooth üzerinden kablosuz iletişimi destekler.
Uzun bekleme süresine sahip 2700 mAh pil kullanır.
IP42 ve 1,8 m düşme yüksekliği.

3D Çizimler

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-IDH2000RF/13NR/05WN
Model	Type	Compact wireless Industial Handheld Code Reader
Performance	Symbologies	1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked codes: PDF417
	Min. accuracy	1D codes: 2 mil 2D codes: 4 mil
	Max. frame rate	50 fps
	Sensor type	CMOS, global shutter
	Pixel size	2.7 μm × 2.7 μm
	Sensor size	1/4″
	Resolution	1280 × 1024
	Depth of field	Code 128 (3 mil): 30 mm to 110 mm Code 128 (10 mil): 20 mm to 205 mm Data Matrix (5 mil): 40 mm to 85 mm QR Code (10 mil): 20 mm to 140 mm QR Code (20 mil): 20 mm to 200 mm
	Field of view	Horizontal 39°, vertical 29°
	Symbol contrast	20%
	Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Wireless communication	Radio frequency	2.4 G
	Wireless range	80 m (open range)
	Communication protocol	SmartSDK, USB, 2.4 G
Electrical feature	Data interface	Code reader: USB 2.0 (Type B) Smart base: USB 2.0 (Type B), USB 2.0 (Type A)
	Battery	2700 mAh, chargeable lithium battery
	Charging time	6 h
	Endurance	12 h (interval scanning, once in 2 seconds)
	Power supply	5 VDC
	Max. power consumption	6 W @ 5 VDC
Mechanical	Focal length	4.9 mm
	Lens mount	M5.0-mount
	Ambient illumination	0 lux to 100000 lux
	Light source	White LED
	Aiming system	Cross laser aiming
	Prompt	LED indicator, buzzer

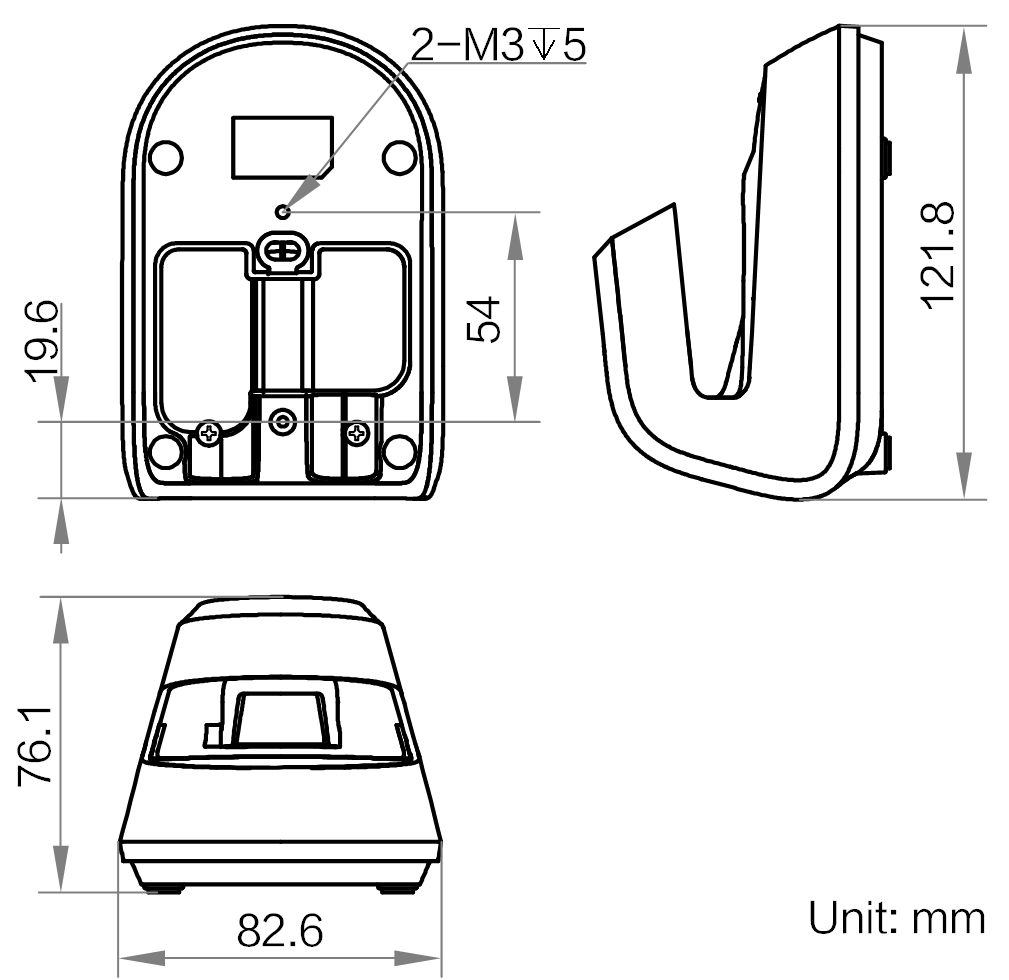

	Dimension	Code reader: 66.5 mm × 94 mm × 169.5 mm (2.6″ × 3.7″ × 6.7″) Smart base: 82.6 mm × 121.8 mm × 76.1 mm (3.3″ × 4.8″ × 3.0″)
	Weight	Code reader: Approx. 160 g (0.4 lb.) Smart base: Approx. 120 g (0.3 lb.)
	Ingress protection	Code reader: IP52 Smart base: IP40
	Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
	Humidity	5% RH to 95% RH (no condensation)
Laser	Laser safety class	Laser 2
	Wavelength	650 nm
	Beam divergence angle	14.5°
	Pulse width	8 ms
	Repetitive frequency	50 Hz
	Maximum power	1 mW
General	Client software	IDMVS
General	Certification	CE, KC
