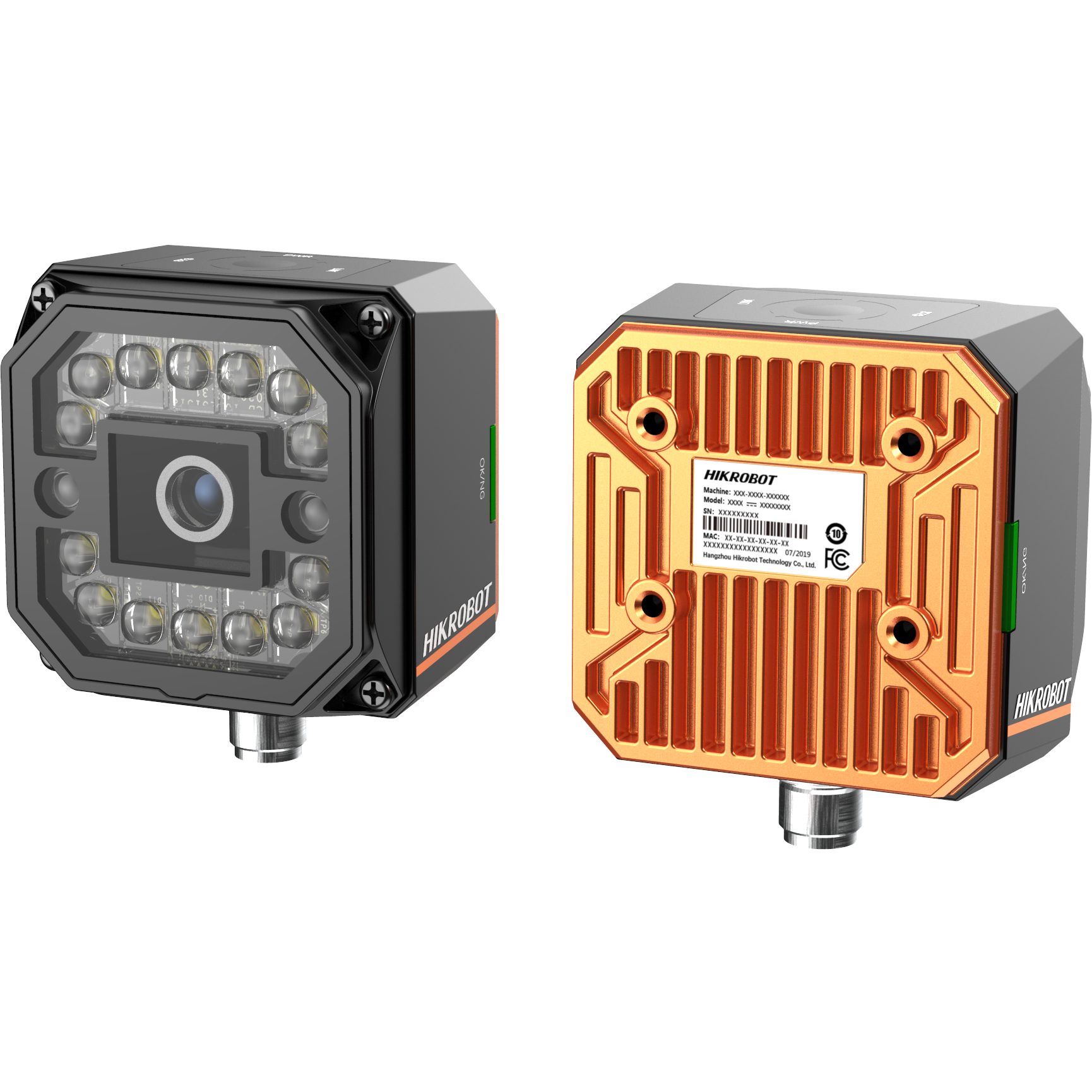

Hikrobot MV-SC3050M-16M-WBN Görüntü Sensörü

Name: Hikrobot MV-SC3050M-16M-WBN Görüntü Sensörü
Brand: Hikrobot
SKU: VS-1928
Availability: InStock

Hikrobot SC3000 Serisi Görüntü Sensörü

Hikrobot MV-SC3050M-16M-WBN Görüntü Sensörü

Hikrobot Görüntü Sensörü kategorisine ait ürünümüzün özellikleri:

Yüksek hızlı görüntü işleme için gömülü donanım platformunu benimser.
Nesnenin varlığına, miktarına, konumuna vb. yönelik yerleşik konumlandırma ve ölçüm algoritmalarını benimser.
Giriş ve çıkış sinyalleri için birden fazla IO arayüzü.
Cihaz durumunu görüntülemek için birden fazla gösterge.
Aydınlatılan alanda düzgün parlaklık sağlamak için ışık kaynağını benimser.
RS-232, TCP, UDP, FTP, Profinet, Modbus ve EtherNet/IP dahil olmak üzere birden fazla iletişim protokolünü destekler.

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-SC3050M-16M-WBN
Model	Type	SC3000 series vision sensor，16mm focal length，5MP，Mono
Tool	Vision tool	Count: Spot count, edge count, pattern count, contour count Defect detection: Exception detection Existence: Circle existence, line existence, spot existence, edge existence, pattern existence, contour existence Location: Match calibration, match location, position fixture Logic tool: If module, condition judge, logic judge, combination judge, string comparison, calculator Measurement: L2L angle, diameter measurement, brightness analysis, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurement Recognition: OCR, code recognition, classification registration, object detection registration Deep learning: DL object detection, DL classification
	Solution capacity	Supports solution importing and exporting, up to 32 solutions can be stored.
	Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Camera	Sensor type	CMOS, global shutter
	Pixel size	3.2 μm × 3.2 μm
	Sensor size	1/1.7″
	Resolution	2368 × 1760
	Max. frame rate	30 fps
	Dynamic range	71.4 dB
	SNR	41 dB
	Gain	0 dB to 15 dB
	Exposure time	60 μs to 1 sec
	Pixel format	Mono 8
	Mono/color	Mono
Electrical feature	Data interface	Fast Ethernet (100 Mbit/s)
	Digital I/O	17-pin M12 connector provides power, Ethernet, digital I/O, and serial port: Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and external button input × 1. Output signal can be set as NPN or PNP.
	Power supply	24 VDC
	Max. power consumption	Approx. 48 W@24 VDC
Mechanical	Lens mount	M12-mount, mechanical autofocus lens
	Focal length	16 mm
	Lens cap	Transparent lens cap. Polarization or infrared filter lens cap is optional.
	Light source	14 LEDs, white light by default. Red or blue is optional.
	Indicator	Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
	Dimension	65.2 mm × 65.2 mm × 47 mm (2.6″ × 2.6″ × 1.9″)
	Weight	Approx. 280 g (0.6 lb.)
	Ingress protection	IP67 (under proper installation of lens and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	SCMVS
General	Certification	CE, KC
