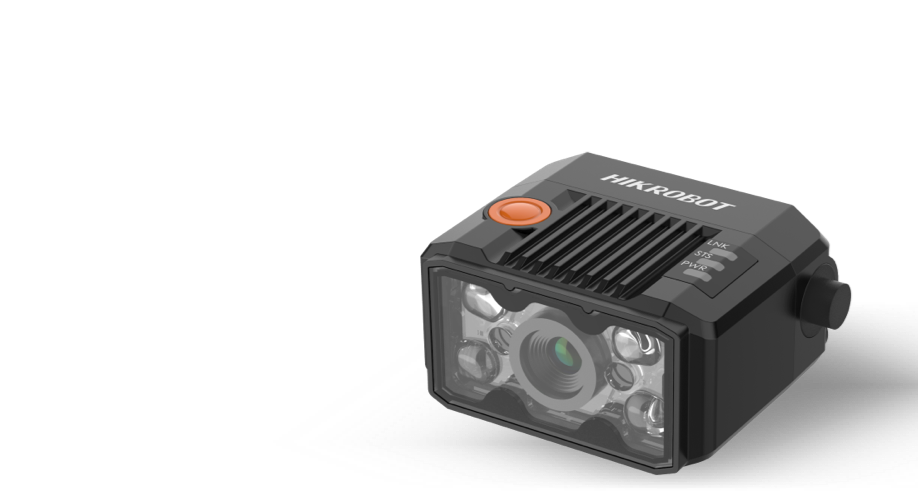

Hikrobot MV-ID2004M-16T-RBN Smart Code Reader

Name: Hikrobot MV-ID2004M-16T-RBN Smart Code Reader
Brand: Hikrobot
SKU: VS-2097
Availability: InStock

Hikrobot ID2000 Serisi Akıllı Kod Okuyucu

Hikrobot MV-ID2004M-16T-RBN Smart Code Reader

Hikrobot Smart Code Reader kategorisine ait ürünümüzün özellikleri:

Çalışma mesafesini değiştirmek için yüksek hızlı odak ayarlamasını destekler.
Kompakt tasarım ve küçük boyutludur ve dar alanlara monte edilebilir.
Hedefleri hedeflemek için LED nişan ışığını benimser. Kolay kablolama için birden fazla IO arabirimi ve tak-çalıştır güç arabirimini benimser.
TCP Server, Seri, FTP, TCP Client, Profinet, Ethernet/IP, MELSEC/SLMP, Modbus, UDP ve Fins dahil olmak üzere birden fazla iletişim protokolünü destekler.

3D Çizimler

Katalog

Kullanım Kılavuzu

Endüstriyel Protokol

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-ID2004M-16T-RBN
Model	Type	16mm auto-focus，0.4MP Ultra-Compact Industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128 (include GS1-128), ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode 2-dimensional codes: QR Code (include GS1-QR), Data Matrix (include GS1-DM), MicroQR, AZTEC, HanXin Stacked codes: PDF 417
	Max. frame rate	60 fps
	Max. reading speed	45 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	6.9 μm × 6.9 μm
	Sensor size	1/2.9″
	Resolution	704 × 540
	Exposure time	16 μs to 20000 μs
	Gain	0 dB to 15 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, UDP, Fins, SLMP
Electrical feature	Data interface	Fast Ethernet (100 Mbit/s)
	Digital I/O	17-pin M12 connector provides power and I/O, including non-isolated input (Line 2) × 1, non-isolated output (Line 3) × 1, configurable bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1. Supports device triggering via pressing button on side.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	Approx. 4 W @ 12 VDC
Mechanical	Focal length	16 mm
	Lens mount	M12-mount
	Working distance	100 mm to 400 mm
	Ambient illumination	0 lux to 50000 lux
	Light source	Red
	Aiming system	Orange LED
	Dimension	46 mm × 40 mm × 25 mm (1.8″ × 1.6″ × 1.0″)
	Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS).
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Weight	Approx. 135 g (0.3 lb.)
	Ingress protection	IP65
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	IDMVS
General	Certification	CE, RoHS, KC
