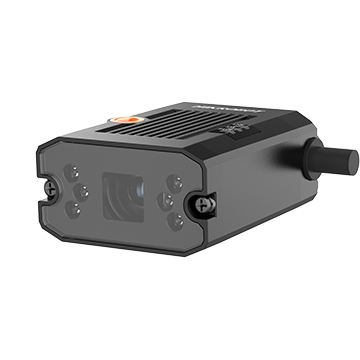

Hikrobot MV-ID2013M-16S-RBN Smart Code Reader
Hikrobot Smart Code Reader kategorisine ait ürünümüzün özellikleri:
- Kompakt tasarım ve küçük boyut.
- Odaklamayı manuel olarak ayarlamak için odak düğmesini benimser.
- Birden fazla IO arayüzünü ve tak-çalıştır güç arayüzünü benimser.
- SmartSDK, TCP Server, Serial, FTP, TCP Client, Profinet, Melsec/SLMP, Ethernet/IP, Modbus, UDP ve Fins dahil olmak üzere birden fazla iletişim protokolünü destekler.
Ürün Özellikleri
Seriler
Ölçüler
Software
| Model | Product Model | MV-ID2013M-16S-RBN |
| Type | 1.3MP long-Lens Ultra-Compact Industrial Code Reader(16mm） | |
| Performance | Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128 (include GS1-128), ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, Pharmacode 2-dimensional codes: QR Code (include GS1-QR), Data Matrix (include GS1-DM), MicroQR, AZTEC, HanXin Stacked codes: PDF 417 |
| Max. frame rate | 60 fps | |
| Max. reading speed | 45 codes/sec | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 4 μm × 4 μm | |
| Sensor size | 1/2.7″ | |
| Resolution | 1280 × 1024 | |
| Exposure time | 40 μs to 1 sec | |
| Gain | 0 dB to 15 dB | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, UDP, Fins | |
| Electrical feature | Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector provides power and I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable bi-directional non-isolated I/O × 2 (Line 0/1), RS-232 × 1. Supports device triggering via pressing button on side. | |
| Power supply | 12 VDC to 24 VDC | |
| Max. power consumption | Approx. 24 W @ 24 VDC | |
| Mechanical | Focal length | 16 mm |
| Lens mount | M12-mount, adjusting focus manually supported | |
| Working distance | 105 mm to 150 mm | |
| Ambient illumination | 0 lux to 50000 lux | |
| Light source | Red | |
| Aiming system | Not supported | |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS). | |

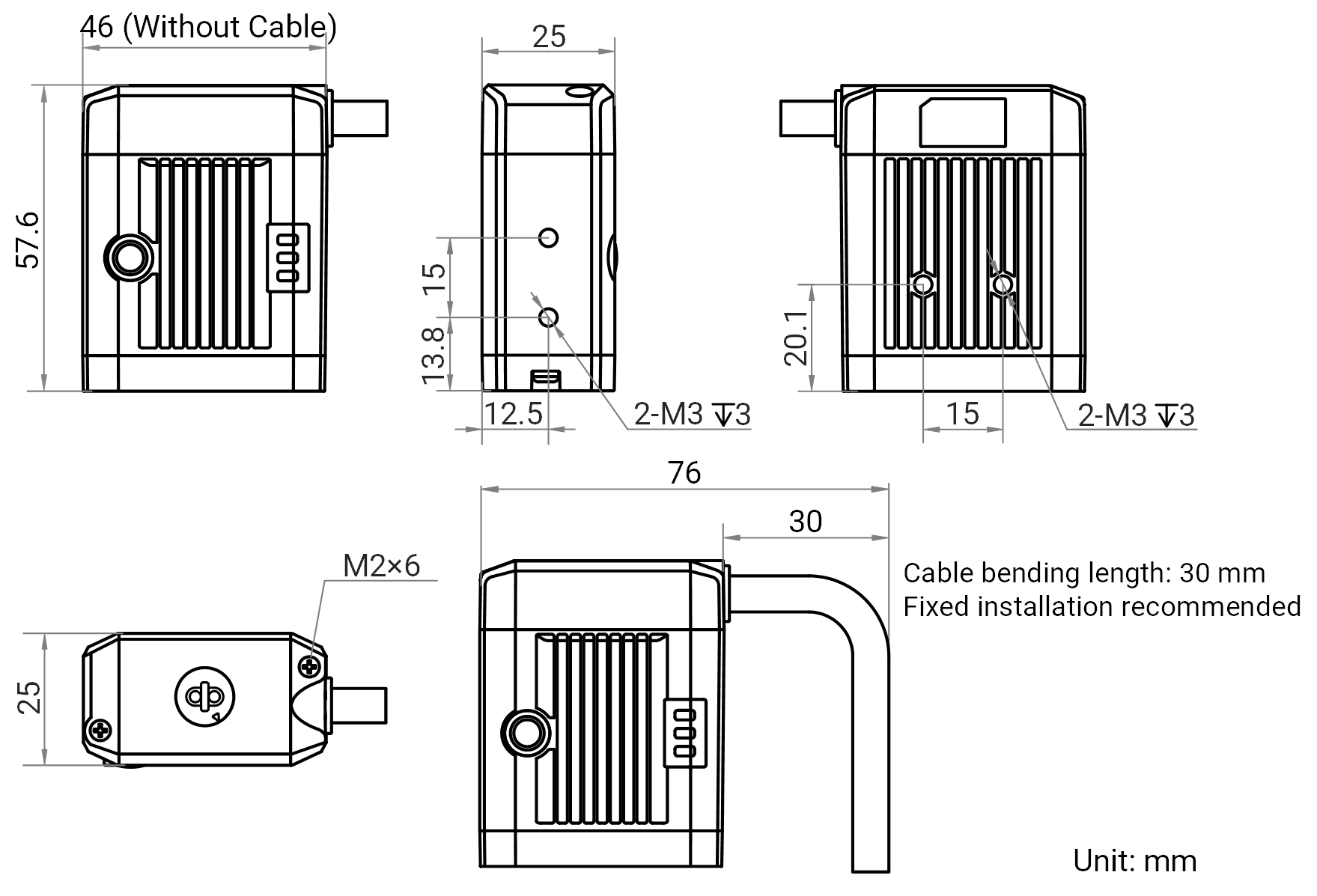

| Dimension | 46 mm × 25 mm × 57.6 mm (1.8″ × 1.0″ × 2.3″) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) | |
| Weight | Approx. 215 g (0.5 lb.) | |
| Ingress protection | IP65 | |
| Humidity | 20% RH to 95% RH (no condensation) | |
| General | Client software | IDMVS |
| Certification | CE, RoHS, KC |
