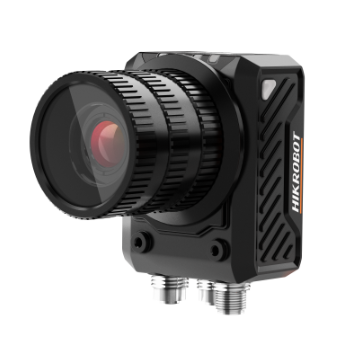

Hikrobot OPS-AK6005L 5 MP Color Smart Camera

Name: Hikrobot OPS-AK6005L 5 MP Color Smart Camera
Brand: Hikrobot
SKU: VS-6178
Availability: InStock

HİKROBOT OPS-AK6005L Color Smart Camera

Hikrobot OPS-AK6005L 5 MP Color Smart Camera

Hikrobot OPS-AK6005L 5 Color Smart Camera kategorisine ait ürünümüzün özellikleri:

OCR, nesne tanıma, kusur tespiti vb. işlemleri gerçekleştirmek için yapay zeka derin öğrenme algoritmasını kullanır.
Sanal makine (VM) işlevlerini entegre eder ve 150’den fazla algoritmayı destekler.
Çoklu arayüzleri benimser ve çok kanallı G/Ç, ışık kaynağı, ekran vb. destekler.
Daha hızlı hesaplama performansı ve yüksek verimliliğe sahip yüksek performanslı CPU kullanır.
Çoklu iletişim protokollerini destekler.
Kolay hata ayıklama ve bakım için cihaz durumunu gösteren göstergeleri destekler.
IP67 giriş korumasını destekler.

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	OPS-AK6005L EUROPE V1 OPS-AK6005L EUROPE V2
Model	Type
Tool	Function module	Vision Master Platform (include deep learning module)
Tool	Communication protocol	TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Camera	Sensor type	CMOS, global shutter
	Pixel size	3.2 µm × 3.2 µm
	Sensor size	1/1.7″
	Resolution	2560 × 2048
	Max. frame rate	42 fps
	Gain	0 dB to 18 dB
	Exposure time	16 μs to 1 sec
	Pixel format	Mono 8, RGB 8
	Mono/color	Color
Platform	Memory	8 GB
Platform	Storage	64 GB
Electrical feature	Data interface	Gigabit Ethernet (1000 Mbit/s)
	Digital I/O	17-pin M12 connector provides power and I/O, including opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 4/5), configurable non-isolated input/output × 2 (Line 2/3), RS-232 × 1, and light source output (max. 30 W) × 1
	Extended interface	VGA × 1, and USB host × 1
	Power supply	24 VDC
	Power consumption	Avg. 12.5 W @ 24 VDC (without external light source) Avg. 42.5 W @ 24 VDC (with external light source) Max. 18 W @ 24 VDC (without external light source) Max. 48 W @ 24 VDC (with external light source)
Mechanical	Lens mount	C-mount
	Lens cap	Transparent lens cap
	Light source	Not included
	Indicator	Power indicator (PWR), network indicator (LNK), status indictor (STS), and user-defined indicator (U1/U2)

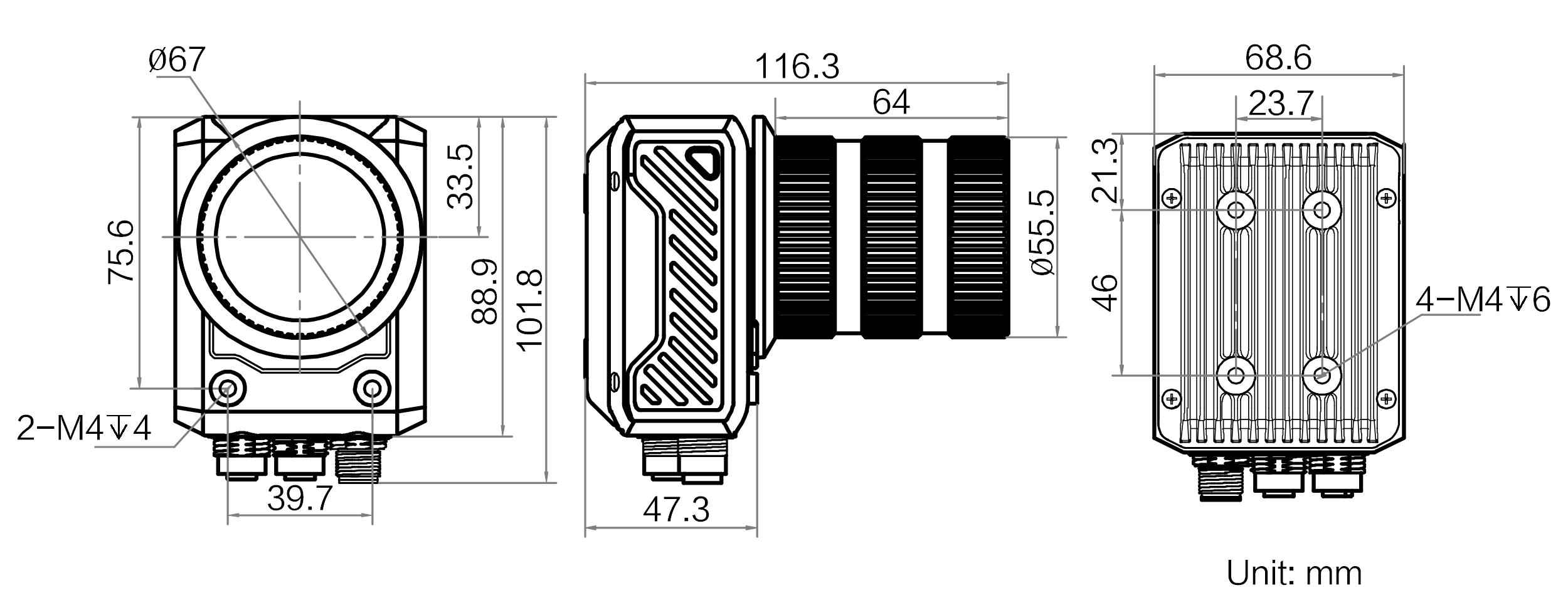

	Dimension	116.3 mm × 68.6 mm × 101.8 mm (4.6″ × 2.7″ × 4.0″)
	Weight	Approx. 530 g (1.2 lb.)
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
	Vibration resistance	Meets standard IEC 60068-2-6:2007. Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)*
	Shock resistance	Meets standard IEC 60068-2-27:2008. Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)*
General	Certification	CE, KC
