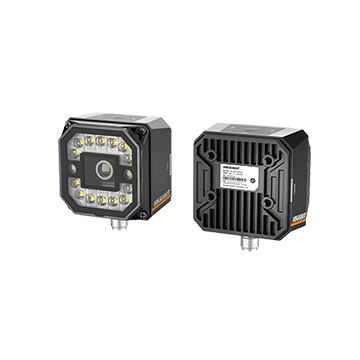

Hikrobot MV-ID3013PM-06M-WBN Smart Code Reader

Name: Hikrobot MV-ID3013PM-06M-WBN Smart Code Reader
Brand: Hikrobot
SKU: VS-2388
Availability: InStock

Hikrobot ID3000 Serisi Akıllı Kod Okuyucu

Hikrobot MV-ID3013PM-06M-WBN Smart Code Reader

Hikrobot Smart Code Reader kategorisine ait ürünümüzün özellikleri:

İyi sağlamlıkta kodları okumak için yerleşik derin öğrenme algoritmasını benimser.
Yüksek kaliteli görüntüler sağlamak için CMOS küresel deklanşör sensörünü benimser.
Giriş ve çıkış sinyalleri için birden fazla IO arayüzünü benimser.
Işık kaynağı sağlamak için 14 LED lambayı benimser.
Polarize ve polarize olmayan modları destekler.
Kolay kurulum ve kod hedeflemesi için 2 LED hedefleme lambasını benimser.
Cihaz üzerindeki göstergeler cihaz durumunu ve kod okuma sonuçlarını görüntüler.

3D Çizimler

Katalog

Kullanım Kılavuzu

Endüstriyel Protokol

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-ID3013PM-06M-WBN
Model	Type	6mm focal length 1.3MP Compact Industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 25 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417
	Max. frame rate	60 fps
	Max. reading speed	84 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	4 μm × 4 μm
	Sensor size	1/2.7″
	Resolution	1280 × 1024
	Exposure time	35 μs to 1 sec
	Gain	0 dB to 15 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	17-pin M12 connector provides power and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 0/1/2) × 3, RS-232 input × 1, RS-232 output × 1. Device trigger via pressing button on top supported.
	Power supply	24 VDC
	Max. power consumption	Approx. 20 W@24 VDC (light source enabled)
Mechanical	Focal length	6 mm (0.2″)
	Lens mount	M12-mount, mechanical autofocus supported.
	Lens cap	Half polarized front cover by default. Polarized and transparent ones are optional.
	Light source	White light by default. Red/blue/IR light is optional.
	Indicator	Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
	Dimension	65.2 mm × 65.2 mm × 47 mm (2.6″ × 2.6″ × 1.9″)
	Weight	Approx. 280 g (0.6 lb.)
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	IDMVS
General	Certification	CE, RoHS
