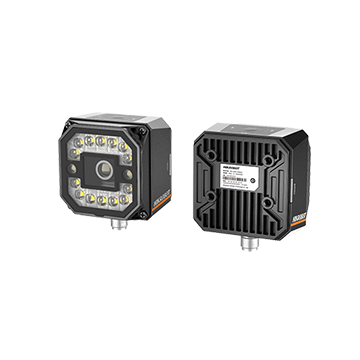

Hikrobot MV-ID3050PM-08M-WBN Smart Code Reader
Hikrobot Smart Code Reader kategorisine ait ürünümüzün özellikleri:
- İyi sağlamlıkta kodları okumak için yerleşik derin öğrenme algoritmasını benimser.
- Yüksek kaliteli görüntüler sağlamak için CMOS küresel deklanşör sensörünü benimser.
- Giriş ve çıkış sinyalleri için birden fazla IO arayüzünü benimser.
- Polarize ve polarize olmayan modlar sağlamak için 14 LED lambayı benimser.
- Kolay kurulum ve kod hedeflemesi için 2 LED hedefleme lambasını benimser.
- Cihaz üzerindeki göstergeler cihaz durumunu ve kod okuma sonuçlarını görüntüler.
Ürün Özellikleri
Seriler
Ölçüler
Software
| Model | Product Model | MV-ID3050PM-08M-WBN |
| Type | ID3000 Series 4.2MP，8mm，white lighting industrial Code Reader | |
| Performance | Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 25 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417 |
| Max. frame rate | 30 fps | |
| Max. reading speed | 60 codes/sec | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 3.2 μm × 3.2 μm | |
| Sensor size | 1/1.7″ | |
| Resolution | 2368 × 1760 | |
| Exposure time | 60 μs to 1 sec | |
| Gain | 0 dB to 18 dB | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP | |
| Electrical feature | Data interface | Fast Ethernet |
| Digital I/O | 17-pin M12 interface provides power supply and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Device trigger via pressing button on top supported. | |
| Power supply | 24 VDC | |
| Max. power consumption | 10.6 W@24 VDC (light source enabled) | |
| Mechanical | Focal length | 8 mm (0.3″) |
| Lens mount | M12-mount, mechanical autofocus supported. | |
| Lens cap | Half polarized front cover by default. Polarized and transparent ones are optional. | |
| Light source | White light by default. Red/blue/IR light is optional. | |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) | |
| Dimension | 65.2 mm × 65.2 mm × 47 mm (2.6″ × 2.6″ × 1.9″) | |
| Weight | Approx. 280 g (0.6 lb.) | |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | IDMVS |
| Certification | CE, FCC, RoHS, KC |
