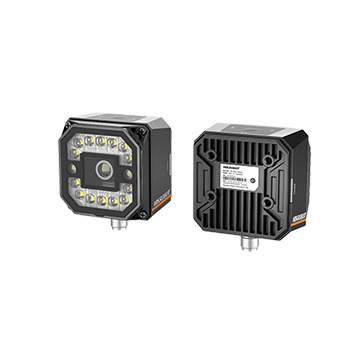

Hikrobot MV-ID3016PM-12M-WBN Smart Code Reader

Name: Hikrobot MV-ID3016PM-12M-WBN Smart Code Reader
Brand: Hikrobot
SKU: VS-2434
Availability: InStock

Hikrobot ID3000 Serisi Akıllı Kod Okuyucu

Hikrobot MV-ID3016PM-12M-WBN Smart Code Reader

Hikrobot Smart Code Reader kategorisine ait ürünümüzün özellikleri:

İyi sağlamlıkta kodları okumak için yerleşik derin öğrenme algoritmasını benimser.
Giriş ve çıkış sinyalleri için IO arayüzlerini benimser.
TCP, Seri, FTP, PROFINET vb. dahil olmak üzere birden fazla iletişim protokolünü destekler.
Görüntü verilerini edinmek ve yüksek kaliteli görüntü sağlamak için CMOS sensörünü benimser.
RS-232 seri portunu ve cihaz durumunu gösteren göstergeleri destekler.

3D Çizimler

Katalog

Kullanım Kılavuzu

Endüstriyel Protokol

Ürün Özellikleri

Seriler

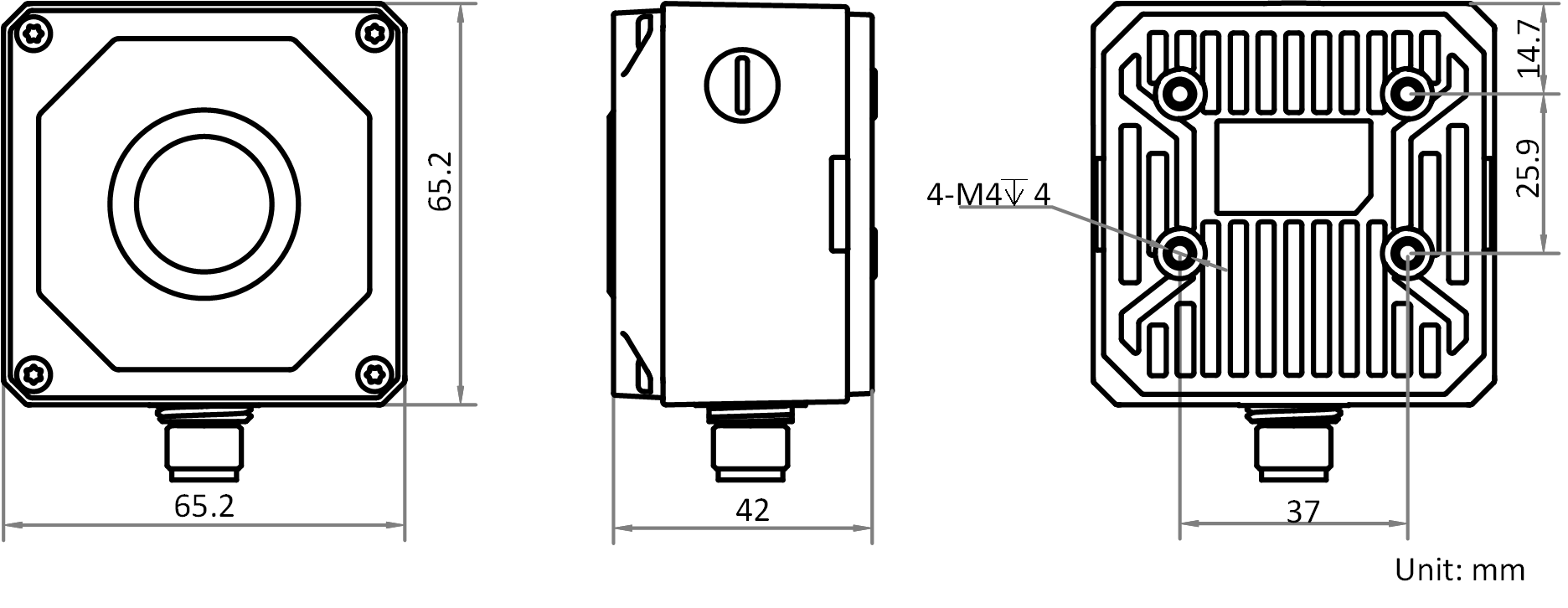

Ölçüler

Software

Model	Product Model	MV-ID3016PM-12M-WBN
Model	Type	12mm Mechanical Autofocus len 1.6MP PRO Series Compact Industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, ITF 25, CodaBar, EAN, MATRIX 25, MSI, Industrial 25, China Post, Code 11 2-dimensional codes: QR Code, Data Matrix
	Max. frame rate	60 fps
	Max. reading speed	84 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1/2.9″
	Resolution	1408 × 1024
	Exposure time	16 μs to 1 sec
	Gain	0 dB to 40 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, TCP Server, UDP, Serial, FTP, PROFINET, Ethernet/IP, MELSEC, ModBus
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	17-pin M12 interface provides power supply and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1. Device trigger via pressing button on top supported.
	Power supply	24 VDC
	Max. power consumption	20 W@24 VDC (light source enabled)
Mechanical	Focal length	12 mm (0.5″)
	Lens mount	M12-mount, mechanical autofocus.
	Lens cap	Transparent lens cap. Polarization lens cap is optional.
	Light source	Spotlight white light. Spotlight red/blue/IR, and wide-angle white/red/blue light is optional.
	Indicator	Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
	Dimension	65.2 mm × 65.2 mm × 42 mm (2.6″ × 2.6″ × 1.7″)
	Weight	Approx. 250 g (0.6 lb.)
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	IDMVS
General	Certification	CE, FCC, RoHS, KC
