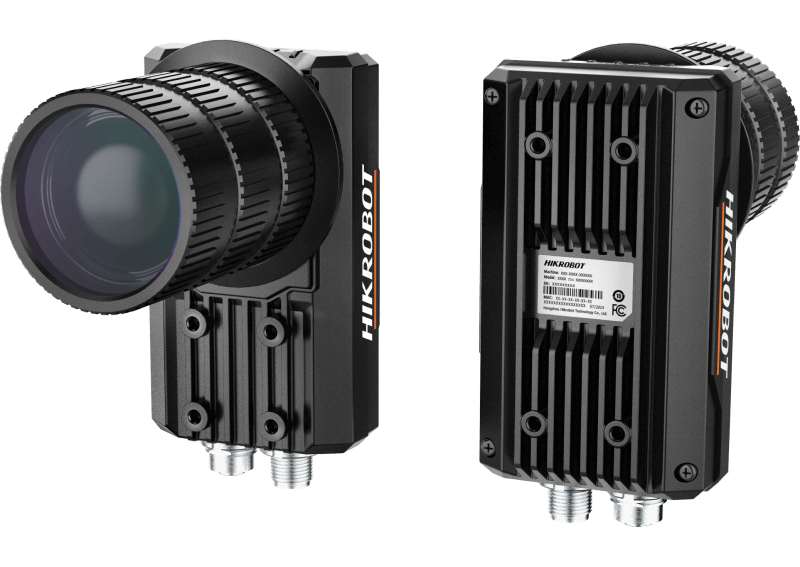

Hikrobot MV-ID5200M-00C-NNN Smart Code Reader

Name: Hikrobot MV-ID5200M-00C-NNN Smart Code Reader
Brand: Hikrobot
SKU: VS-1249
Availability: InStock

Hikrobot ID5000 Serisi Akıllı Kod Okuyucu

Hikrobot MV-ID5200M-00C-NNN Smart Code Reader

Hikrobot Smart Code Reader kategorisine ait ürünümüzün özellikleri:

Görüntü verilerini toplamak ve yüksek kaliteli görüntü sağlamak için CMOS sensörünü benimser.
İyi sağlamlığa sahip kodları okumak için yerleşik derin öğrenme algoritmasını benimser.
Kod kalitesi değerlendirmesini destekler, kodların baskı kalitesini tespit eder.
Seri, FTP, Profinet, Fins vb. gibi birden fazla iletişim protokolünü destekler.
RS-232 seri portunu destekler ve cihaz durumunu gösteren göstergelere sahiptir.

3D Çizimler

Katalog

Kullanım Kılavuzu

Endüstriyel Protokol

Ürün Özellikleri

Seriler

Ölçüler

Software

Mechanical	Lens mount	C-mount
	Light source	Not included
	Lens cap	Transparent lens cap. Polarization lens cap is optional.
	Indicator	Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).

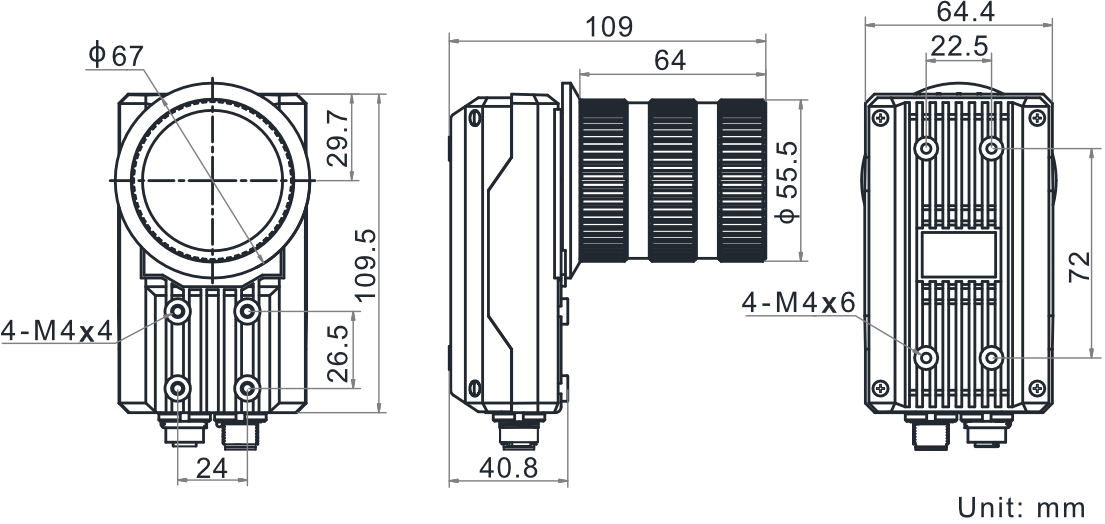

	Dimension	109.5 mm × 64.4 mm × 109 mm (4.3″ × 2.5″ × 4.3″)
	Weight	Approx. 470 g (1.0 lb.)
	Ingress protection	IP67 (under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
Model	Product Model	MV-ID5200M-00C-NNN
Model	Type	20MP Allfunction Industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417
	Max. frame rate	20 fps
	Max. reading speed	36 codes/sec
	Sensor type	CMOS, rolling shutter
	Pixel size	2.4 µm × 2.4 µm
	Sensor size	1″
	Resolution	5440 × 3648
	Exposure time	16 μs to 500 ms
	Gain	0 dB to 40 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP, UDP
General	Client software	IDMVS
General	Certification	CE, RoHS, KC
Electrical feature	Data interface	GigE
	Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	12 W@24 VDC

Hikrobot MV-ID5200PM-00C-NNN(V2.0) Smart Code Reader Hikrobot MV-ID5200M-00C-NNN Smart Code Reader Hikrobot MV-ID5120M-00C-NNN Smart Code Reader Hikrobot MV-ID5060M-00C-NNN Smart Code Reader Hikrobot MV-ID5060M-00C-WBN Smart Code Reader Hikrobot MV-ID5060M-25S-WBN Smart Code Reader Hikrobot MV-ID5060M-16S-WBN Smart Code Reader Hikrobot MV-ID5060M-08S-WBN Smart Code Reader Hikrobot MV-ID5050M-25S-WBN Smart Code Reader Hikrobot MV-ID5050M-16S-WBN Smart Code Reader Hikrobot MV-ID5050M-12S-WBN Smart Code Reader Hikrobot MV-ID5050M-08S-WBN Smart Code Reader Hikrobot MV-ID5030M-25S-WBN Smart Code Reader Hikrobot MV-ID5030M-16S-WBN Smart Code Reader Hikrobot MV-ID5030M-12S-WBN Smart Code Reader Hikrobot MV-ID5030M-08S-WBN Smart Code Reader Hikrobot MV-ID5060M-12S-WBN Smart Code Reader

Machine Vision Software IDMVS V4.2.3

Windows

Client

638.54 MB

İndir
