Hikrobot MV-IDH3000/13SR/05RN/LE Smart Code Reader

Name: Hikrobot MV-IDH3000/13SR/05RN/LE Smart Code Reader
Brand: Hikrobot
SKU: VS-2723
Availability: InStock

Hikrobot IDH3000 Serisi Akıllı Kod Okuyucu

Hikrobot MV-IDH3000/13SR/05RN/LE Smart Code Reader

Hikrobot Smart Code Reader kategorisine ait ürünümüzün özellikleri:

Farklı 1D ve 2D kod tiplerini çözmek için yerleşik kod okuma algoritması.
Noktalar, kusurlar ve düşük kontrast oranı olan kodları okumak için iyi bir sağlamlık sağlar.
Kod okuma verimliliğini artırmak için sürekli kod okuma ve toplu kod okumayı destekler.
TCP, Seri, FTP, UDP, USB HID ve USB CDC dahil olmak üzere birden fazla iletişim protokolünü destekler.
Bileşenleri değiştirmek kolaydır.

3D Çizimler

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-IDH3000/13SR/05RN/LE
Model	Type	Industrial Wired Handheld Code Reader（IP LAN）
Performance	Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417
	Min. accuracy	3 mil 4 mil
	Sensor type	CMOS
	Resolution	1280 × 1024
	Depth of field	Code 128 (3 mil): 25 mm to 70 mm Code 128 (10 mil): 10 mm to 170 mm Code 39 (5 mil): 15 mm to 100 mm Data Matrix (5 mil): 30 mm to 60 mm Data Matrix (10 mil): 5 mm to 115 mm Code 39 (5 mil): 40 mm to 160 mm Code 128 (10 mil): 10 mm to 400 mm Data Matrix (10 mil): 30 mm to 200 mm QR Code (15 mil): 15 mm to 280 mm QR Code (20 mil): 20 mm to 370 mm
	Field of view	Horizontal 40°, vertical 34°
	Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
	Symbol contrast	20%
	Communication protocol	Network interface: SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial USB interface: SmartSDK, USB (HID/CDC)
Electrical feature	Data interface	Network interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB interface: USB 2.0, DC terminal
	Power supply	Network interface: 12 VDC USB interface: 5 VDC (USB 2.0), 12 VDC (DC terminal)
	Current consumption	USB 2.0: 0.9 A (max.), 0.5 A (typical) DC terminal: 0.5 A (max.), 0.28 A (typical)
Mechanical	Focal length	4.7 mm
	Ambient illumination	0 lux to 100000 lux
	Light source	Red LED
	Aiming system	Cross laser aiming
	Prompt	LED indicator, buzzer, vibrator

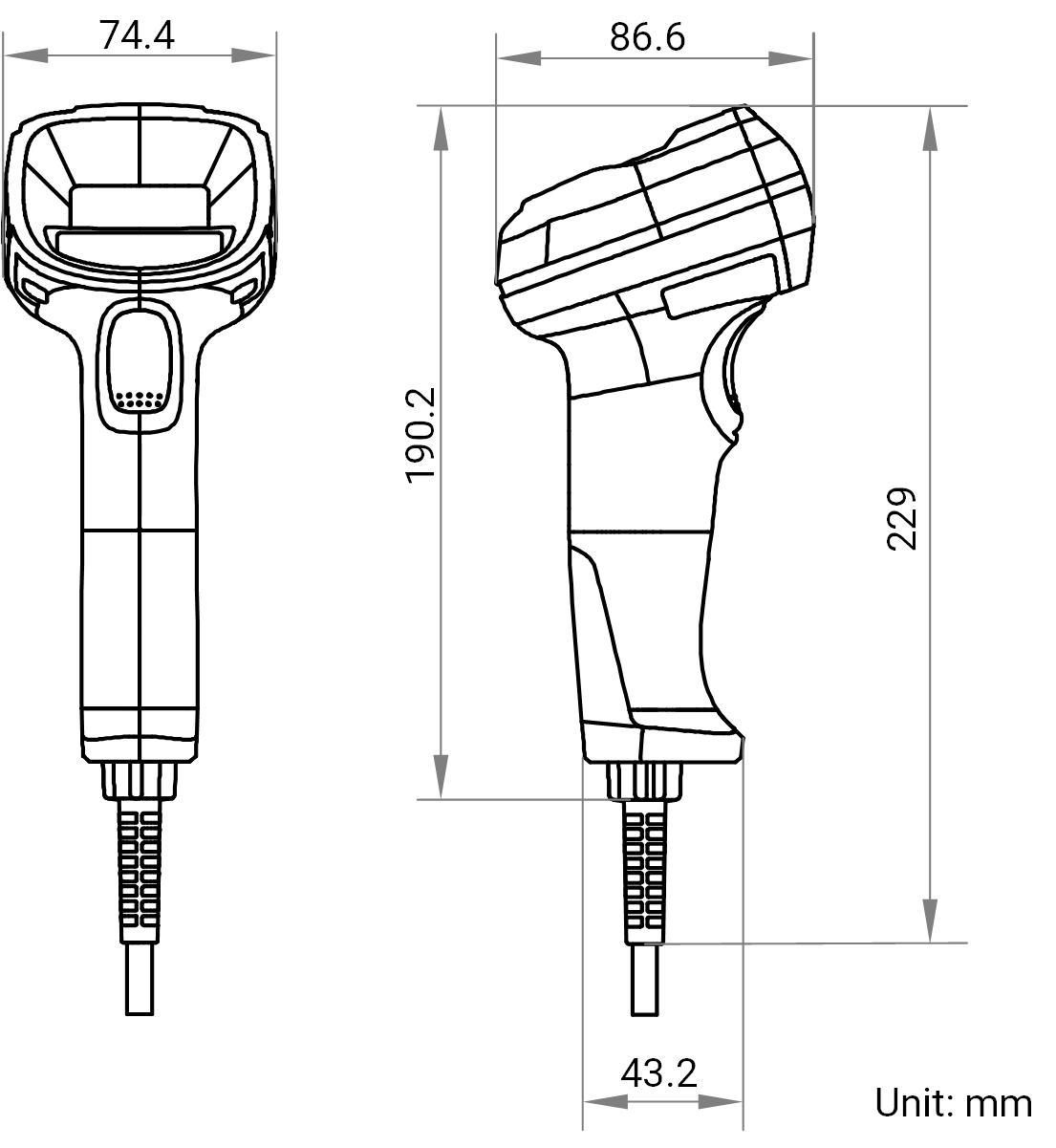

	Dimension	74.4 mm × 86.6 mm × 190.2 mm (2.9″ × 3.4″ × 7.5″)
	Weight	Approx. 160 g (0.4 lb.)
	Ingress protection	IP42
	Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
	Humidity	20% RH to 80% RH (no condensation)
Laser	Laser safety class	Laser 2
	Wavelength	650 nm
	Pulse width	8 ms
	Maximum power	1 mW
General	Client software	IDMVS
General	Certification	CE, KC
