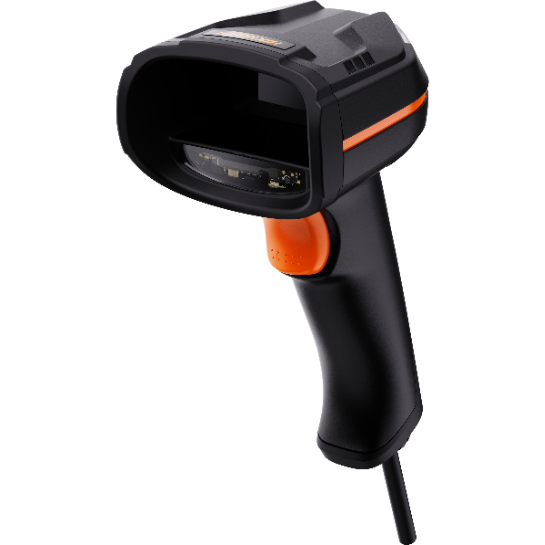

Hikrobot MV-IDH3000B/13NR/05RN Smart Code Reader

Name: Hikrobot MV-IDH3000B/13NR/05RN Smart Code Reader
Brand: Hikrobot
SKU: VS-2729
Availability: InStock

Hikrobot IDH3000 Serisi Akıllı Kod Okuyucu

Hikrobot MV-IDH3000B/13NR/05RN Smart Code Reader

Hikrobot Smart Code Reader kategorisine ait ürünümüzün özellikleri:

Farklı 1D ve 2D kod tiplerini çözmek için yerleşik kod okuma algoritması.
Noktalar, kusurlar ve düşük kontrast oranına sahip kodları okumak için iyi bir sağlamlık sağlar.
Kod okuma verimliliğini artırmak için sürekli kod okumayı, toplu kod okumayı destekler.
Rahat ve verimli işlemler sağlamak için Bluetooth 5.0 kablosuz teknolojisini benimser.
Akıllı tabanlarla, IDMVS istemci yazılımı aracılığıyla parametre yapılandırması ve cihaz yönetimi desteklenir.

3D Çizimler

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-IDH3000B/13NR/05RN
Model	Type	Wireless Handheld Code Reader （No IBASE）
Performance	Symbologies	1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 25, ITF 14, UPCA, and UPCE 2D codes: QR Code, Data Matrix
	Min. accuracy	3 mil
	Max. frame rate	50 fps
	Sensor type	CMOS, global shutter
	Pixel size	2.7 μm × 2.7 μm
	Sensor size	1/4″
	Resolution	1280 × 1024
	Depth of field	Code 128 (3 mil): 25 mm to 70 mm Code 128 (10 mil): 10 mm to 170 mm Code 39 (5 mil): 15 mm to 100 mm Data Matrix (5 mil): 30 mm to 60 mm Data Matrix (10 mil): 5 mm to 115 mm
	Field of view	Horizontal 40°, vertical 34°
	Symbol contrast	20%
	Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Wireless communication	Bluetooth	BT 5.0, 2.4 GHz to 2.4835 GHz, BLE
	Wireless range	80 m (open range)
	Communication protocol
Electrical feature	Data interface
	Battery	3150 mAh, chargeable lithium battery
	Charging time
	Endurance	13 h (interval scanning, once in 2 seconds)
	Power supply
	Max. power consumption
Mechanical	Focal length	4.7 mm
	Lens mount	M5.8-mount
	Ambient illumination	0 lux to 100000 lux
	Light source
	Aiming system	Cross laser aiming
	Prompt	LED indicator, buzzer, vibrator

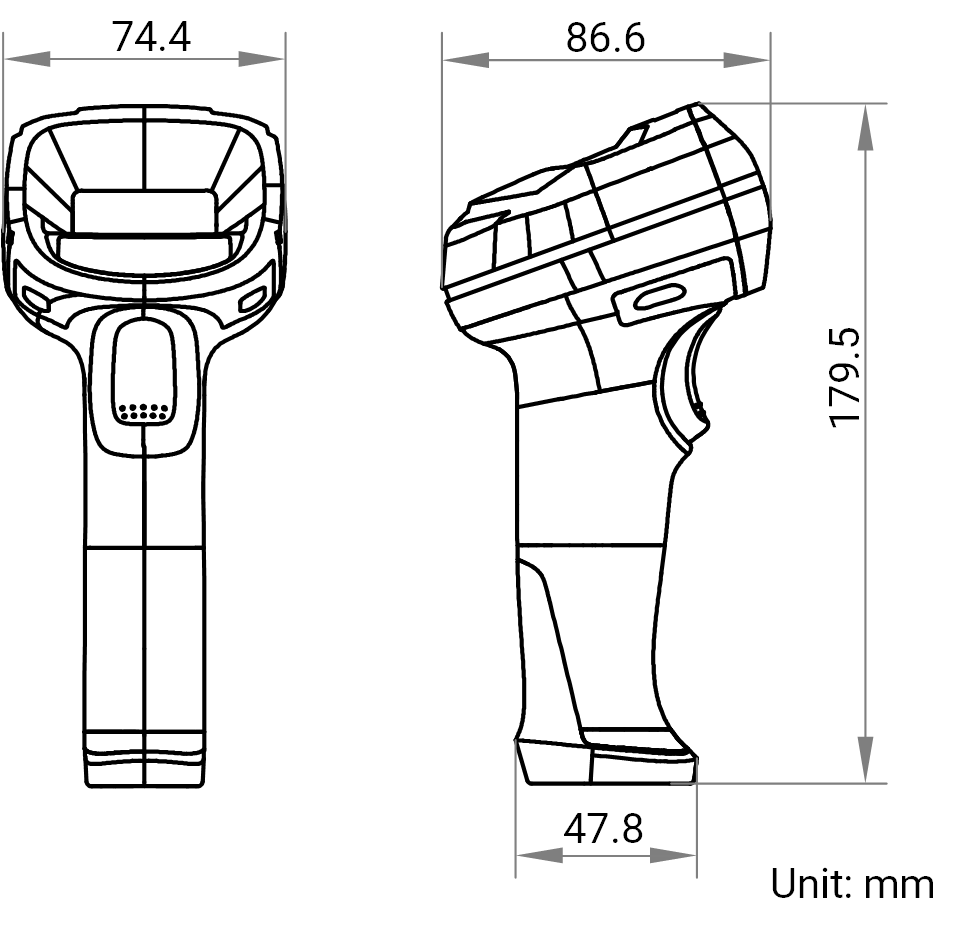

	Dimension	Wireless handheld code reader: 74.4 mm × 86.6 mm × 179.5 mm (2.9″ × 3.4″ × 7.1″) Smart base: 100.9 mm × 131.8 mm × 83.6 mm (4.0″ × 5.2″ × 3.3″)
	Weight	Wireless handheld code reader: Approx. 230 g (0.5 lb.) Smart base: Approx. 180 g (0.4 lb.)
	Ingress protection	IP42
	Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
	Humidity	20% RH to 80% RH (no condensation)
Laser	Laser safety class	Laser 2
	Wavelength	650 nm
	Beam divergence angle	14.5°
	Pulse width	8 ms
	Repetitive frequency	50 Hz
	Maximum power	1 mW
General	Client software	IDMVS
General	Certification	CE, KC
