Hikrobot MV-IDH3000B/13NR/05RN/US Smart Code Reader
Hikrobot Smart Code Reader kategorisine ait ürünümüzün özellikleri:
- Farklı 1D ve 2D kod tiplerini çözmek için yerleşik kod okuma algoritması.
- Noktalar, kusurlar ve düşük kontrast oranına sahip kodları okumak için iyi bir sağlamlık sağlar.
- Kod okuma verimliliğini artırmak için sürekli kod okumayı, toplu kod okumayı destekler.
- Rahat ve verimli işlemler sağlamak için Bluetooth 5.0 kablosuz teknolojisini benimser.
- Akıllı tabanlarla, IDMVS istemci yazılımı aracılığıyla parametre yapılandırması ve cihaz yönetimi desteklenir.
Ürün Özellikleri
Seriler
Ölçüler
Software
| Model | Product Model | MV-IDH3000B/13NR/05RN/US |
| Type | Wireless USB Handheld Code Reader Package | |
| Performance | Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 25, ITF 14, UPCA, and UPCE 2D codes: QR Code, Data Matrix |
| Min. accuracy | 3 mil | |
| Max. frame rate | 50 fps | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 2.7 μm × 2.7 μm | |
| Sensor size | 1/4″ | |
| Resolution | 1280 × 1024 | |
| Depth of field | Code 128 (3 mil): 25 mm to 70 mm Code 128 (10 mil): 10 mm to 170 mm Code 39 (5 mil): 15 mm to 100 mm Data Matrix (5 mil): 30 mm to 60 mm Data Matrix (10 mil): 5 mm to 115 mm | |
| Field of view | Horizontal 40°, vertical 34° | |
| Symbol contrast | 20% | |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° | |
| Wireless communication | Bluetooth | BT 5.0, 2.4 GHz to 2.4835 GHz, BLE |
| Wireless range | 80 m (open range) | |
| Communication protocol | Wireless handheld code reader: Bluetooth Smart base: SmartSDK, USB (HID/CDC), Bluetooth | |
| Electrical feature | Data interface | USB 2.0, DC terminal |
| Battery | 3150 mAh, chargeable lithium battery | |
| Charging time | Shutdown mode: USB 2.0 (5 V, 500 mA): 8.5 h, USB 3.0 (5 V, 1 A): 8.5 h, 12 VDC (12 V, 2 A): 3.5 h | |
| Endurance | 13 h (interval scanning, once in 2 seconds) | |
| Power supply | Wireless handheld code reader: 3.8 VDC (battery providing power) Smart base: 5 VDC (USB), 12 VDC to 24 VDC (DC terminal) | |
| Max. power consumption | Wireless handheld code reader: standby mode: 0.8 W @ 3.8 VDC, working mode: 1.6 W @ 3.8 VDC, sleep mode: 0.6 W @ 3.8 VDC Smart base: 4.5 W @ 5 VDC (USB), 6.6 W @ 12 VDC (DC terminal) | |
| Mechanical | Focal length | 4.7 mm |
| Lens mount | M5.8-mount | |
| Ambient illumination | 0 lux to 100000 lux | |
| Light source | Red LED | |
| Aiming system | Cross laser aiming | |
| Prompt | LED indicator, buzzer, vibrator | |

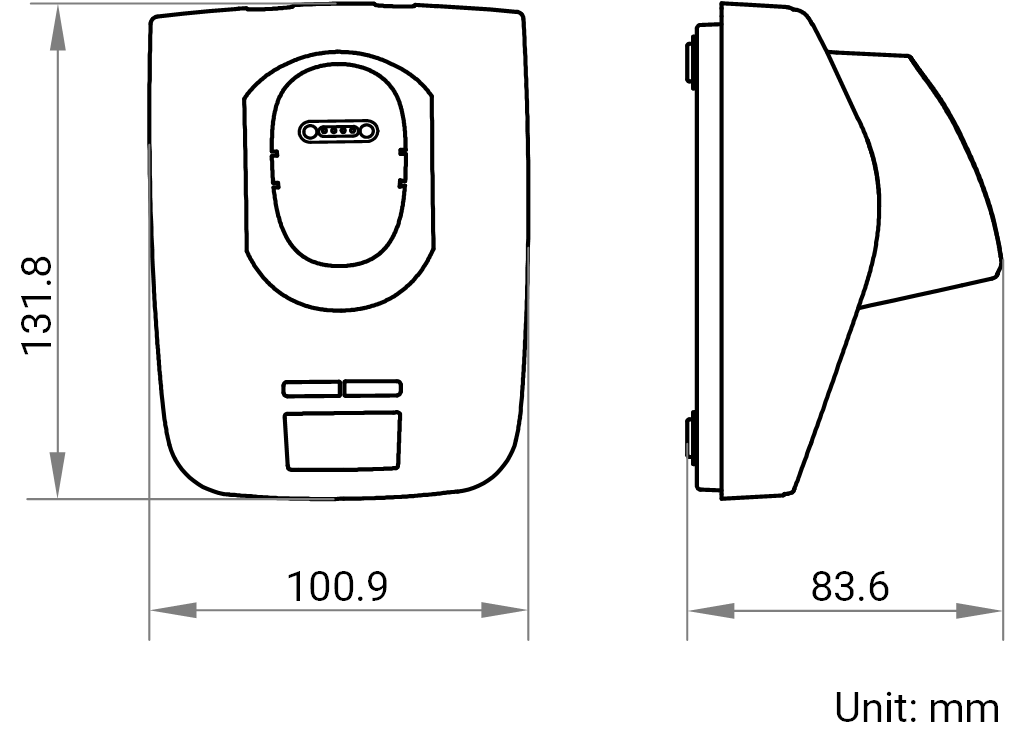

| Dimension | Wireless handheld code reader: 74.4 mm × 86.6 mm × 179.5 mm (2.9″ × 3.4″ × 7.1″) Smart base: 100.9 mm × 131.8 mm × 83.6 mm (4.0″ × 5.2″ × 3.3″) | |
| Weight | Wireless handheld code reader: Approx. 230 g (0.5 lb.) Smart base: Approx. 180 g (0.4 lb.) | |
| Ingress protection | IP42 | |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) | |
| Humidity | 20% RH to 80% RH (no condensation) | |
| Laser | Laser safety class | Laser 2 |
| Wavelength | 650 nm | |
| Beam divergence angle | 14.5° | |
| Pulse width | 8 ms | |
| Repetitive frequency | 50 Hz | |
| Maximum power | 1 mW | |
| General | Client software | IDMVS |
| Certification | CE, KC |
