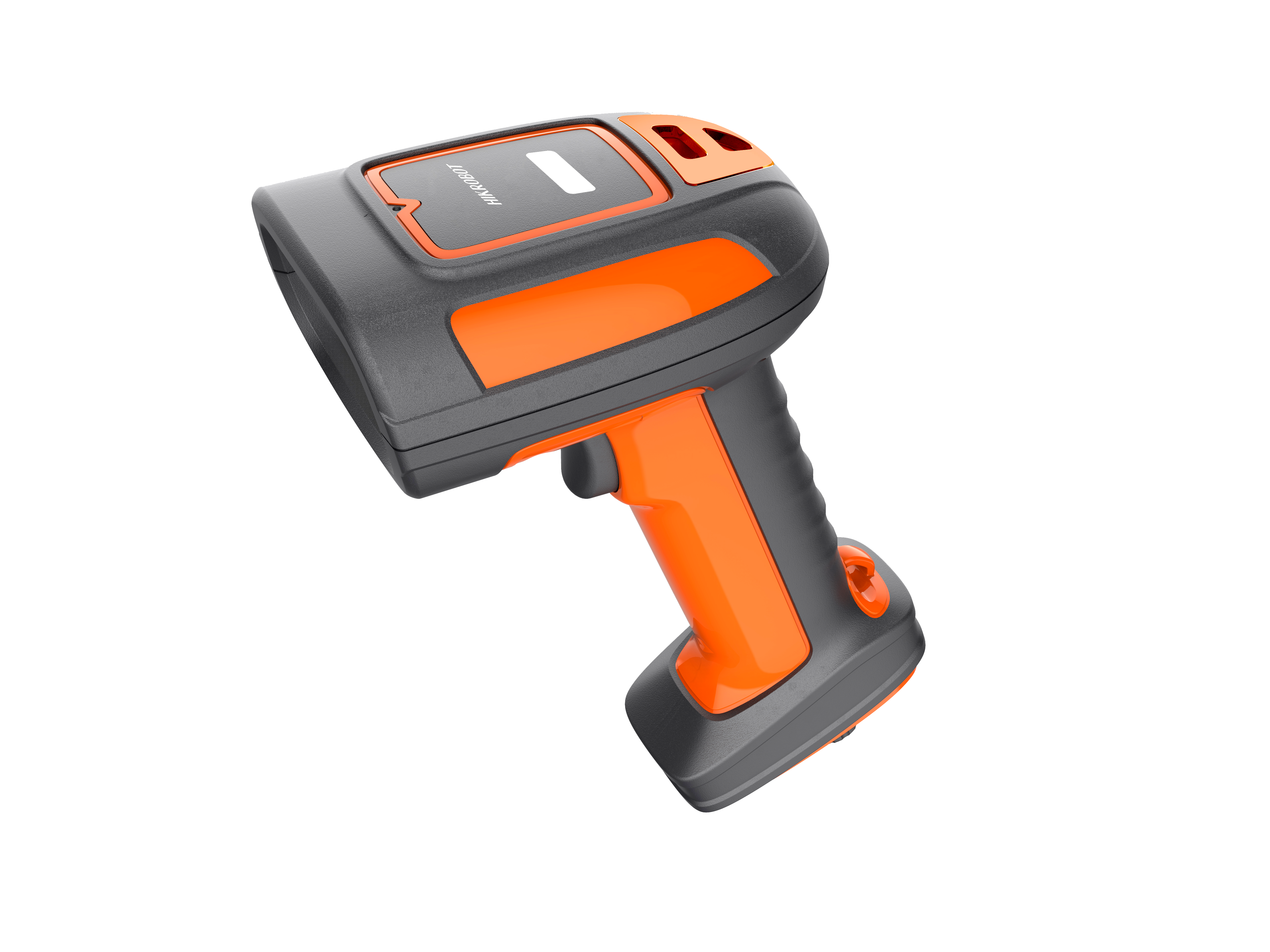

Hikrobot MV-IDH7000B/10SR/07RN Smart Code Reader
Hikrobot Smart Code Reader kategorisine ait ürünümüzün özellikleri:
- Farklı 1D ve 2D kod tiplerini çözmek için yerleşik kod okuma algoritması.
- Noktalar, kusurlar ve düşük kontrast oranına sahip kodları okumak için iyi bir sağlamlık sağlar.
- Rahat ve verimli işlemler sağlamak için Bluetooth 5.0 kablosuz teknolojisini benimser.
- Akıllı tabanlarla, IDMVS istemci yazılımı aracılığıyla parametre yapılandırması ve cihaz yönetimi desteklenir.
- Uzun pil ömrü sağlamak için 3150 mAh pil kullanır.
- Doğrudan aydınlatma ve dağınık yansımalı aydınlatma sağlamak için aydınlatma sistemini benimser.
- IP65’i ve 1,8 m düşme yüksekliğini destekler.
Ürün Özellikleri
Seriler
Ölçüler
Software
| Model | Product Model | MV-IDH7000B/10SR/07RN |
| Type | 1MP 7mm wireless Industrial Handheld Code Reader（No Base） | |
| Performance | Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417 |
| Min. accuracy | ||
| Max. frame rate | 50 fps | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 3 μm × 3 μm | |
| Sensor size | 1/4″ | |
| Resolution | 1280 × 800 | |
| Depth of field | ||
| Field of view | Horizontal 31°, vertical 20° | |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° | |
| Symbol contrast | 20% | |
| Wireless communication | Bluetooth | BT 5.0, 2.4 GHz to 2.4835 GHz, BLE |
| Wireless range | 100 m (open range) | |
| Communication protocol | ||
| Electrical feature | Data interface | |
| Battery | 3150 mAh, chargeable lithium battery | |
| Charging time | Shutdown mode: USB 3.0 (5 V, 1 A): 4h, 12 VDC (12 V, 2 A): 3.5 h | |
| Endurance | 13 h (interval scanning, once in 2 seconds) | |
| Power supply | ||
| Max. power consumption | ||
| Mechanical | Focal length | 6.7 mm |
| Lens mount | M5.8-mount | |
| Ambient illumination | 0 lux to 100000 lux | |
| Light source | Direct lighting: white LED Diffused reflection lighting: red LED | |
| Aiming system | Cross laser aiming | |
| Prompt | LED indicator, buzzer, vibrator | |
| Dimension | Wireless handheld code reader: 73.4 mm × 104 mm × 215.2 mm (2.9″ × 4.1″ × 8.5″) Smart base: 248.4 mm × 106.3mm × 69.4 mm (9.8″ × 4.2″ × 2.7″) | |
| Ingress protection | IP65 | |
| Weight | Wireless handheld code reader: Approx. 410 g (0.9 lb.) Smart base: Approx. 380 g (0.8 lb.) | |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) | |
| Humidity | 20% RH to 95% RH (no condensation) | |
| Laser | Laser safety class | Laser 2 |
| Wavelength | 650 nm | |
| Beam divergence angle | 14.5° | |
| Pulse width | 8 ms | |
| Repetitive frequency | 50 Hz | |
| Maximum power | 1 mW | |
| General | Client software | IDMVS |
| Certification | CE, KC |
