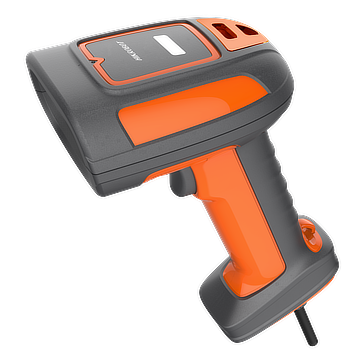

Hikrobot MV-IDH7000P/10NR/07RN/U Smart Code Reader

Name: Hikrobot MV-IDH7000P/10NR/07RN/U Smart Code Reader
Brand: Hikrobot
SKU: VS-2864
Availability: InStock

Hikrobot IDH7000 Serisi Akıllı Kod Okuyucu

Hikrobot MV-IDH7000P/10NR/07RN/U Smart Code Reader

Hikrobot Smart Code Reader kategorisine ait ürünümüzün özellikleri:

Farklı 1D ve 2D kod tiplerini çözmek için yerleşik kod okuma algoritması.
Noktalar, kusurlar ve düşük kontrast oranı olan kodları okumak için iyi bir sağlamlık sağlar.
Kod okuma verimliliğini artırmak için sürekli kod okumayı, toplu kod okumayı destekler.
Doğrudan aydınlatma ve dağınık yansıma aydınlatması sağlamak için aydınlatma sistemini benimser.
Bileşenleri değiştirmek kolaydır.
IP65 ve 2,0 m düşme yüksekliği.

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-IDH7000P/10NR/07RN/U
Model	Type	1MP 7mm-NR USB Industrial Handheld Code Reader
Performance	Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417
	Min. accuracy	3 mil
	Sensor type	CMOS
	Resolution	1280 × 800
	Depth of field	Code 39 (3 mil): 15 mm to 60 mm Code 39 (5 mil): 5 mm to 80 mm Data Matrix (5 mil): 10 mm to 70 mm Data Matrix (10 mil): 0 mm to 110 mm1 QR Code (5 mil): 10 mm to 70 mm
	Field of view	Horizontal 31°, vertical 20°
	Detection angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
	Symbol contrast	20%
	Communication protocol	Network interface: SmartSDK, TCP, FTP, HTTP, Profinet, MELSEC/SLMP, Ethernet/IP, Modbus, UDP, Fins, Serial USB interface: SmartSDK, USB (HID/CDC)
Electrical feature	Data interface	Network interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal USB interface: USB 2.0, DC terminal
	Power supply	Network interface: 12 VDC to 24 VDC USB interface: 5 VDC (USB 2.0), 12 VDC to 24 VDC (DC terminal)
	Current consumption	USB 2.0: 0.9 A (max.), 0.5 A (typical) DC terminal: 0.5 A (max.), 0.28 A (typical)
Mechanical	Focal length	6.7 mm
	Ambient illumination	0 lux to 100000 lux
	Light source	Direct lighting: white LED Diffused reflection lighting: red LED
	Aiming system	Cross laser aiming
	Dimension	73.4 mm × 104 mm × 229.5 mm (2.9″ × 4.1″ × 9.0″)
	Weight	Approx. 460 g (1.0 lb.)
	Ingress protection	IP65
	Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
	Humidity	20% RH to 95% RH (no condensation)
Laser	Laser safety class	Laser 2
	Wavelength	650 nm
	Pulse width	8 ms
	Maximum power	1 mW
General	Client software	IDMVS
General	Certification	CE, KC
