Hikrobot MV-CI003-GL-N25 Area Scan Camera

Name: Hikrobot MV-CI003-GL-N25 Area Scan Camera
Brand: Hikrobot
SKU: VS-5112
Availability: InStock

Hikrobot CI Area Scan Camera

Hikrobot MV-CI003-GL-N25 Area Scan Camera

Hikrobot CIArea Scan Camera kategorisine ait ürünümüzün özellikleri:

0,3 MP çözünürlüğe sahip yüksek hassasiyetli vanadyum oksit soğutmasız dedektör kullanır.
Çoklu palet modlarını, gri tonlama algılamayı, görüntü ayarlamayı vb. destekler.
4 taraftan esnek montaj için panellerde montaj delikleri bulunan kompakt tasarım.
GigE arayüzünü kullanır ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
GigE Vision V2.0 Protokolü ve GenlCam Standardı ile uyumludur.

3D Çizimler

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CI003-GL-N25
Model	Type	0.3MP LWIR Camera，GigE，EFL 25mm
Performance	Sensor type	Vanadium oxide uncooled detector
	Pixel size	17 μm
	Resolution	640 × 512
	Max. frame rate	50 fps @ 640 × 512
	NETD	< 35 mk (F1.0, 25 °C)
	Response time	< 10 ms
	Pixel format	Mono 8/12/14, YUV422_YUYV_Packed
	Color palettes	White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue
	Image process	Supports brightness, contrast, image detail strength, digital noise reduction (spatial and temporal)
	Focal length	25 mm
	Field of view	24.6° × 18.5°
	Min. operation distance	0.25 m
Electrical feature	Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 2.5 W @ 12 VDC
Mechanical	Lens mount	M34*0.75

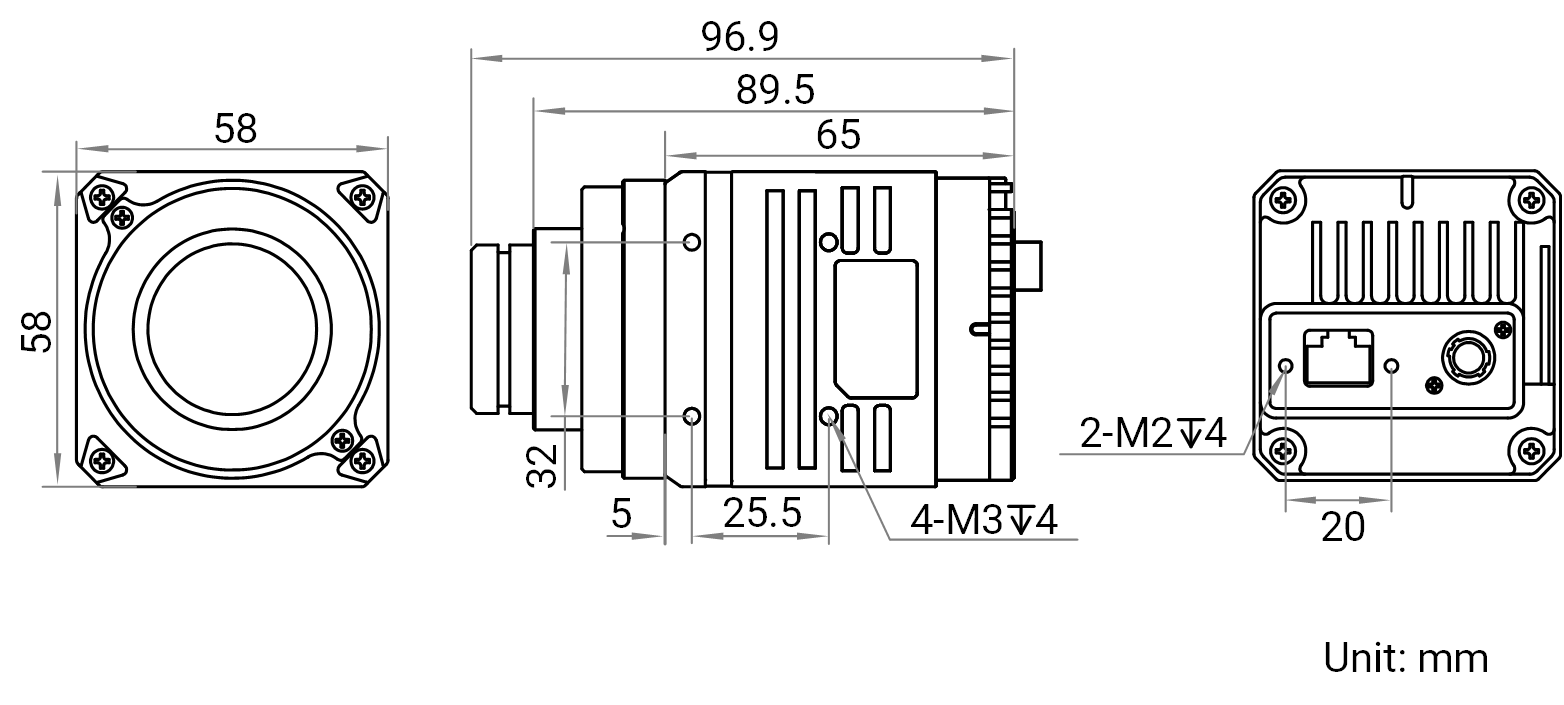

	Dimension	58 mm × 58 mm × 96.9 mm (2.3″ × 2.3″ × 3.8″)
	Weight	Approx. 275 g (0.6 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 90% RH (no condensation)
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux.
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
