Hikrobot MV-CI003-GL-N35 Area Scan Camera
Hikrobot CIArea Scan Camera kategorisine ait ürünümüzün özellikleri:
- 0,3 MP çözünürlüğe sahip yüksek hassasiyetli vanadyum oksit soğutmasız dedektör kullanır.
- Çoklu palet modlarını, gri tonlama algılamayı, görüntü ayarlamayı vb. destekler.
- 4 taraftan esnek montaj için panellerde montaj delikleri bulunan kompakt tasarım.
- GigE arayüzünü kullanır ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
- GigE Vision V2.0 Protokolü ve GenlCam Standardı ile uyumludur.
Ürün Özellikleri
Seriler

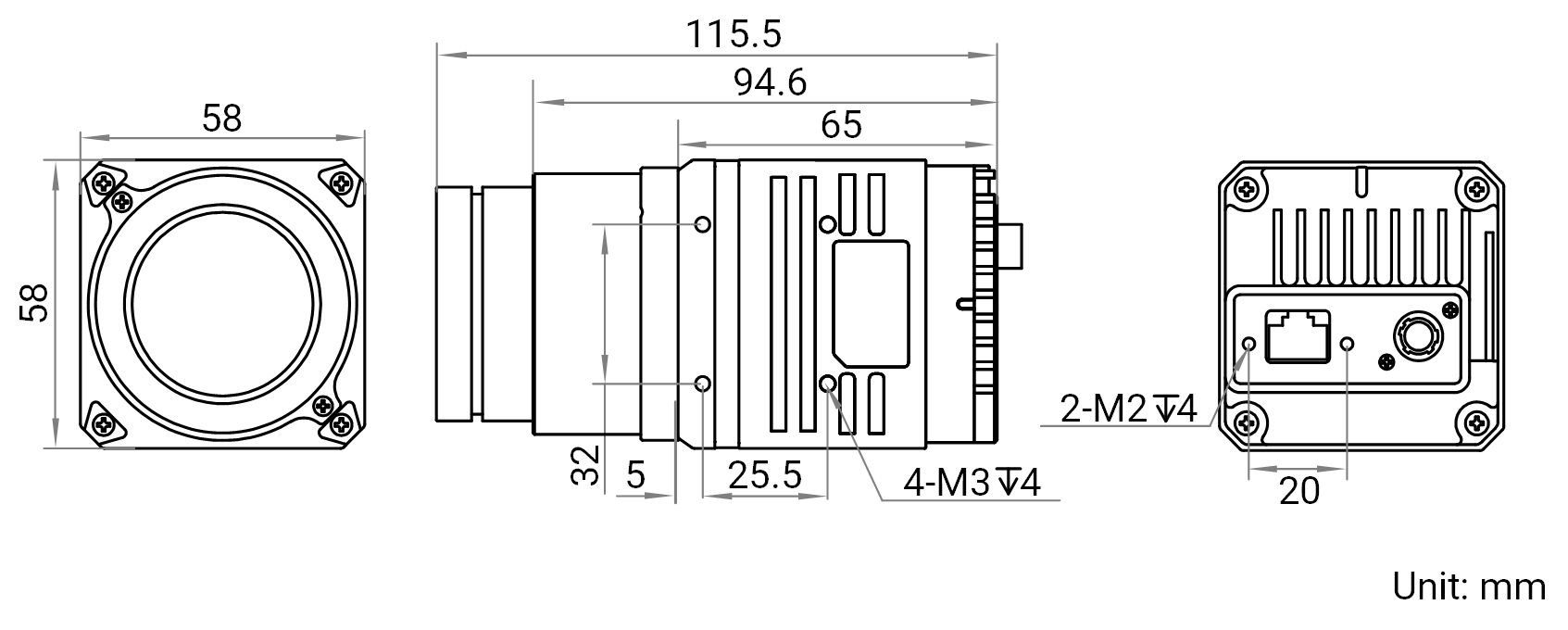

Ölçüler
Software
| Model | Product Model | MV-CI003-GL-N35 |
| Type | 0.3MP LWIR Camera，GigE，EFL 35mm | |
| Performance | Sensor type | Vanadium oxide uncooled detector |
| Pixel size | 17 μm | |
| Resolution | 640 × 512 | |
| Max. frame rate | 50 fps @ 640 × 512 | |
| NETD | < 35 mk (F1.0, 25 °C) | |
| Response time | < 10 ms | |
| Pixel format | Mono 8/12/14, YUV422_YUYV_Packed | |
| Color palettes | White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue | |
| Image process | Supports brightness, contrast, image detail strength, digital noise reduction (spatial and temporal) | |
| Focal length | 35 mm | |
| Field of view | 17.9° × 14.2° | |
| Min. operation distance | 0.45 m | |
| Electrical feature | Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports PoE | |
| Power consumption | Typ. 2.5 W @ 12 VDC | |
| Mechanical | Lens mount | M34*0.75 |
| Dimension | 58 mm × 58 mm × 115.5 mm (2.3″ × 2.3″ × 4.5″) | |
| Weight | Approx. 275 g (0.6 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) | |
| Humidity | 20% RH to 90% RH (no condensation) | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux. | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS, KC |
