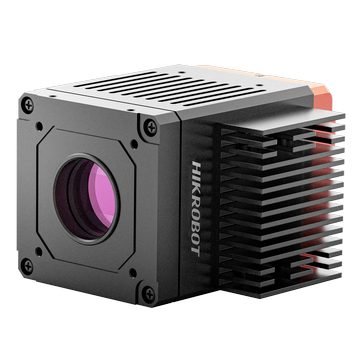

Hikrobot MV-CI013-GS-TH Area Scan Camera
Hikrobot CIArea Scan Camera kategorisine ait ürünümüzün özellikleri:
- InGaAs sensörünü kullanır ve 0,4 μm ile 1,7 μm arasında spektral görüntülemeyi destekler.
- İyi bir soğutma etkisi sağlamak için TEC’i destekler.
- Dijital gürültü azaltma, kontrast oranı vb. gibi çoklu ISP fonksiyonlarına sahiptir.
- Mekansal gereksinimleri karşılamak için kompakt yapı ve tasarıma sahiptir.
- GigE Vision V2.0 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.
Ürün Özellikleri
Seriler

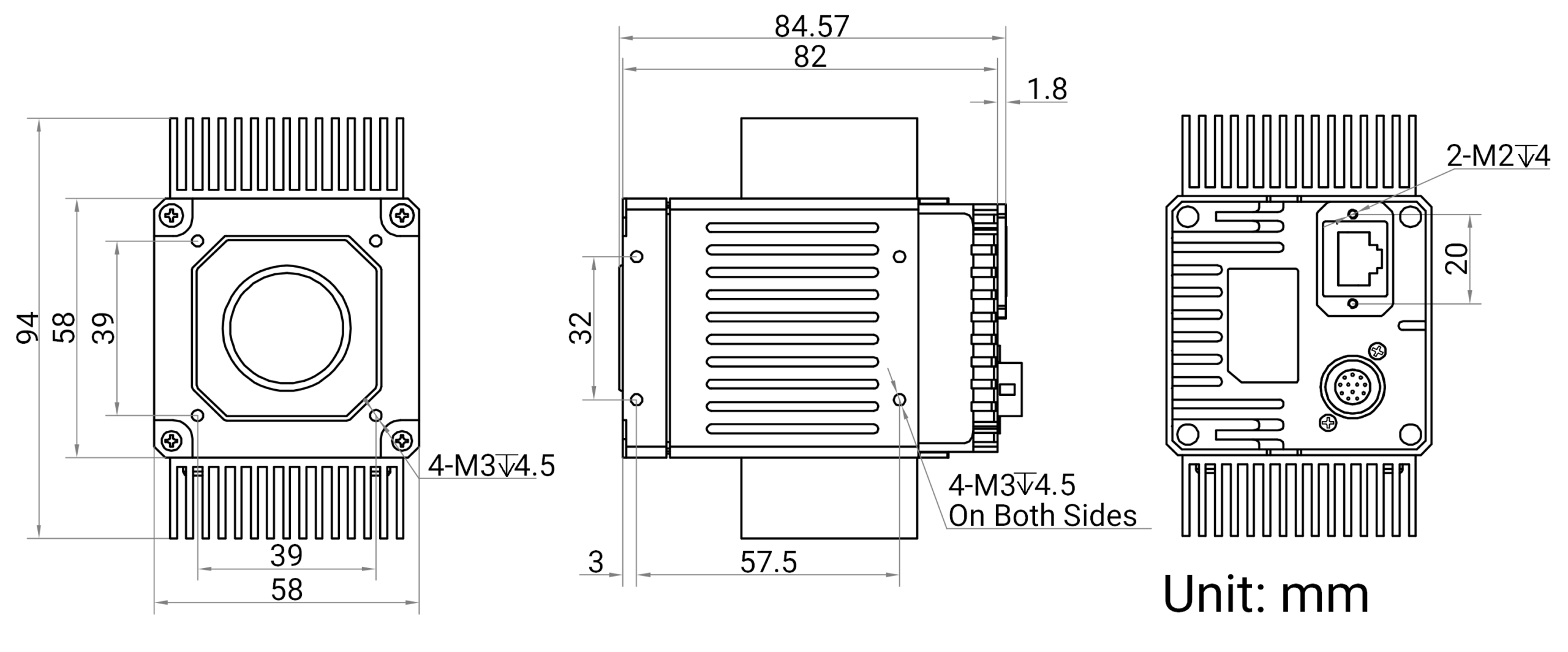

Ölçüler
Software
| Model | Product Model | MV-CI013-GS-TH |
| Type | 1.3MP SWIR Camera, IMX990, GigE, with TEC and heatsink, fanless | |
| Performance | Sensor type | InGaAs |
| Sensor model | Sony® IMX990 | |
| Pixel size | 5 μm × 5 μm | |
| Sensor size | 1/2″ | |
| Resolution | 1280 × 1024 | |
| Max. frame rate | 91 fps @ 1280 × 1024 Mono 8 | |
| Dynamic range | 56 dB | |
| SNR | 52.2 dB | |
| Gain | 0 dB to 18 dB | |
| Exposure time | UltraShort exposure mode: 3 μs to 7 μs Standard exposure mode: 8 μs to 0.1 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 | |
| Power supply | 9 VDC to 24 VDC | |
| Power consumption | Typ. 11.7 W @ 12 VDC (TEC enabled) | |
| Mechanical | Lens mount | C-mount |
| Dimension | 58 mm × 94 mm × 82 mm (2.3″ × 3.7″ × 3.2″) | |
| Weight | Approx. 750 g (1.7 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: –30 °C to 50 °C (–22 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) | |
| Humidity | 20% RH to 95% RH (no condensation) | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10/11, 32/64-bit Linux | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS |
