Hikrobot CT Area Scan Camera

Hikrobot MV-CT0CG0060/R/NN/NN Area Scan Camera

Hikrobot CT Area Scan Camera kategorisine ait ürünümüzün özellikleri:

  • PRO ve MAX versiyonlu cihazlar su geçirmez konektörü destekler.
  • PRO ve MAX versiyonlu cihazlar, hızlı ısı dengesi için hassas sıcaklık kontrolü tasarımını benimser.
  • PRO ve MAX versiyonlu renkli cihazlar, çok spektrumlu füzyon teknolojisine dayalı otomatik renk düzeltmeyi destekler.
  • MAX versiyonlu cihaz, lens ve ışık kaynağını entegre ederek lens odaklama ve ışık kaynağı kontrolünü sağlar.
  • GigE arayüzünü benimser ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
  • GigE Vision V2.0 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur..

PDF İndir 3D Çizimler Katalog PDF İndir Katalog Kullanım Kılavuzu PDF İndir Kullanım Kılavuzu
Ürün Özellikleri
Seriler
Ölçüler
Software
Model Product Model MV-CT0CG0060/R/NN/NN
Type 6MP Area Scan Camera, 3rd Gen., GigE, Color, BASE
Performance Sensor type CMOS, rolling shutter
Sensor model Sony IMX178
Pixel size 2.4 μm × 2.4 μm
Sensor size 1/1.8″
Resolution 3072 × 2048
Max. frame rate 19.5 fps @ 3072 × 2048 Bayer RG 8
Dynamic range 71.3 dB
SNR 41.3 dB
Gain 0 dB to 24 dB
Exposure time 25 μs to 3.1 sec
Exposure mode Off/Once/Continuous exposure mode, supports Rolling and Global Reset
Pixel format Mono 8, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Mono/color Color
Binning Supports 1 × 1, 2 × 2, 4 × 4
Decimation Supports 1 × 1, 2 × 2, 4 × 4
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type RJ45 connector
Control interface Not supported
Digital I/O 8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply 9 VDC to 24 VDC, supports PoE
Power consumption Typ. 1.5 W @ 12 VDC
Mechanical Lens mount C-mount

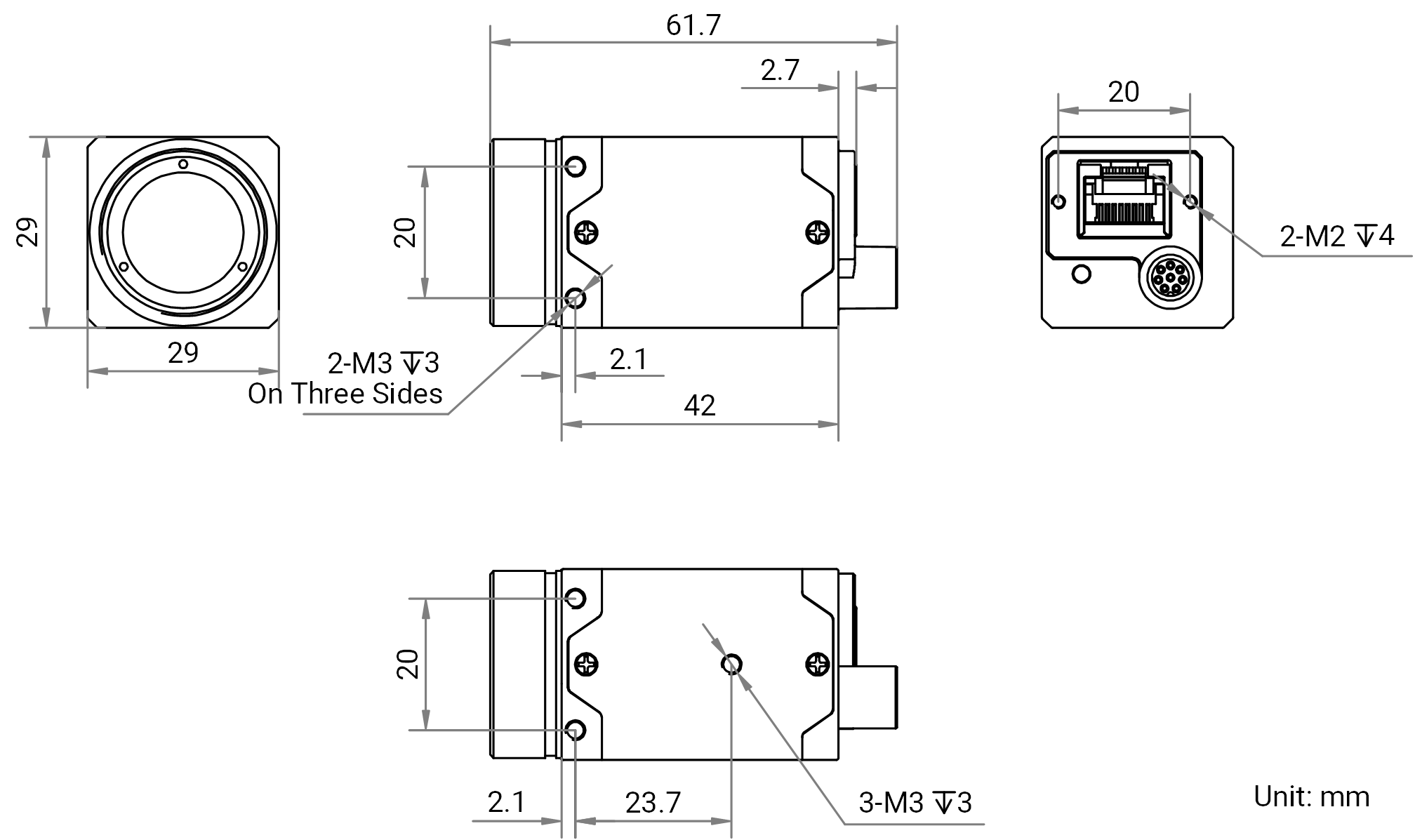

Dimension 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
Weight Approx. 116 g (0.3 lb.)
Ingress protection IP40 (under proper lens installation and wiring)
Temperature Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity 20% RH to 95% RH (no condensation)
General Client software MVS or third-party software meeting with GigE Vision Protocol
Operating system 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility GigE Vision V2.0, GenICam
Certification CE, RoHS, KC
