Hikrobot CT Area Scan Camera

Hikrobot MV-CT2MG0089/G/NN/NN Area Scan Camera

Hikrobot CT Area Scan Camera kategorisine ait ürünümüzün özellikleri:

  • PRO ve MAX versiyonlu cihazlar su geçirmez konektörü destekler.
  • PRO ve MAX versiyonlu cihazlar, hızlı ısı dengesi için hassas sıcaklık kontrolü tasarımını benimser.
  • PRO ve MAX versiyonlu renkli cihazlar, çok spektrumlu füzyon teknolojisine dayalı otomatik renk düzeltmeyi destekler.
  • MAX versiyonlu cihaz, lens ve ışık kaynağını entegre ederek lens odaklama ve ışık kaynağı kontrolünü sağlar.
  • GigE arayüzünü benimser ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
  • GigE Vision V2.0 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

PDF İndir 3D Çizimler Katalog PDF İndir Katalog Kullanım Kılavuzu PDF İndir Kullanım Kılavuzu
Ürün Özellikleri
Seriler

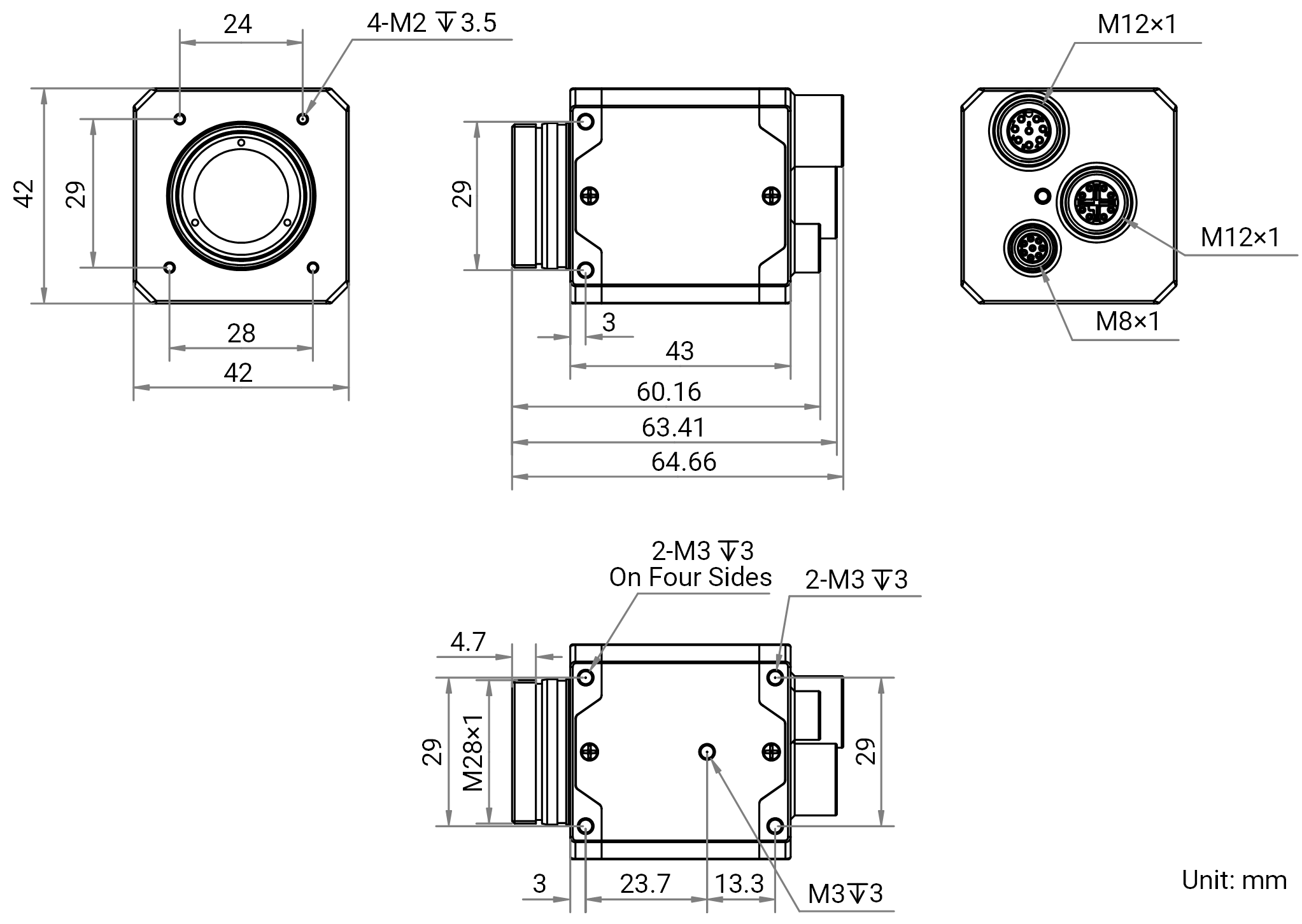

Ölçüler
Software
ModelProduct ModelMV-CT2MG0089/G/NN/NN
Type8.9MP Area Scan Camera, 3rd Gen., GigE, Mono, MAX
PerformanceSensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size1″
Resolution4096 × 2160
Max. frame rate13.9 fps @ 4096 × 2160 Mono 8 32.5 fps @ 4096 × 2160 Mono 8 (lossless compression mode enabled)
Dynamic range67.2 dB
SNR44.2 dB
Gain0 dB to 12 dB
Exposure timeUltraShort exposure mode: 10 μs to 19 μs Standard exposure mode: 20 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical featureData interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type8-pin M12 X-Code waterproof aviation connector
Control interface8-pin M12 A-Code waterproof aviation connector
Digital I/O8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 1.9 W @ 24 VDC (fast heat balance not enabled and external device not be controlled)
MechanicalLens mountC-mount
Dimension42 mm × 42 mm × 43 mm (1.7″ × 1.7″ × 1.7″)
WeightApprox. 120 g (0.3 lb.)
Ingress protectionIP67 (under proper lens and lens cap installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
GeneralClient softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
