Hikrobot CT Area Scan Camera

Hikrobot MV-CT1CG0004/G/NN/NN Area Scan Camera

Hikrobot CT Area Scan Camera kategorisine ait ürünümüzün özellikleri:

  • PRO ve MAX versiyonlu cihazlar su geçirmez konektörü destekler.
  • PRO ve MAX versiyonlu cihazlar, hızlı ısı dengesi için hassas sıcaklık kontrolü tasarımını benimser.
  • PRO ve MAX versiyonlu renkli cihazlar, çok spektrumlu füzyon teknolojisine dayalı otomatik renk düzeltmeyi destekler.
  • MAX versiyonlu cihaz, lens ve ışık kaynağını entegre ederek lens odaklama ve ışık kaynağı kontrolünü sağlar.
  • GigE arayüzünü benimser ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
  • GigE Vision V2.0 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

PDF İndir 3D Çizimler Katalog PDF İndir Katalog Kullanım Kılavuzu PDF İndir Kullanım Kılavuzu
Ürün Özellikleri
Seriler

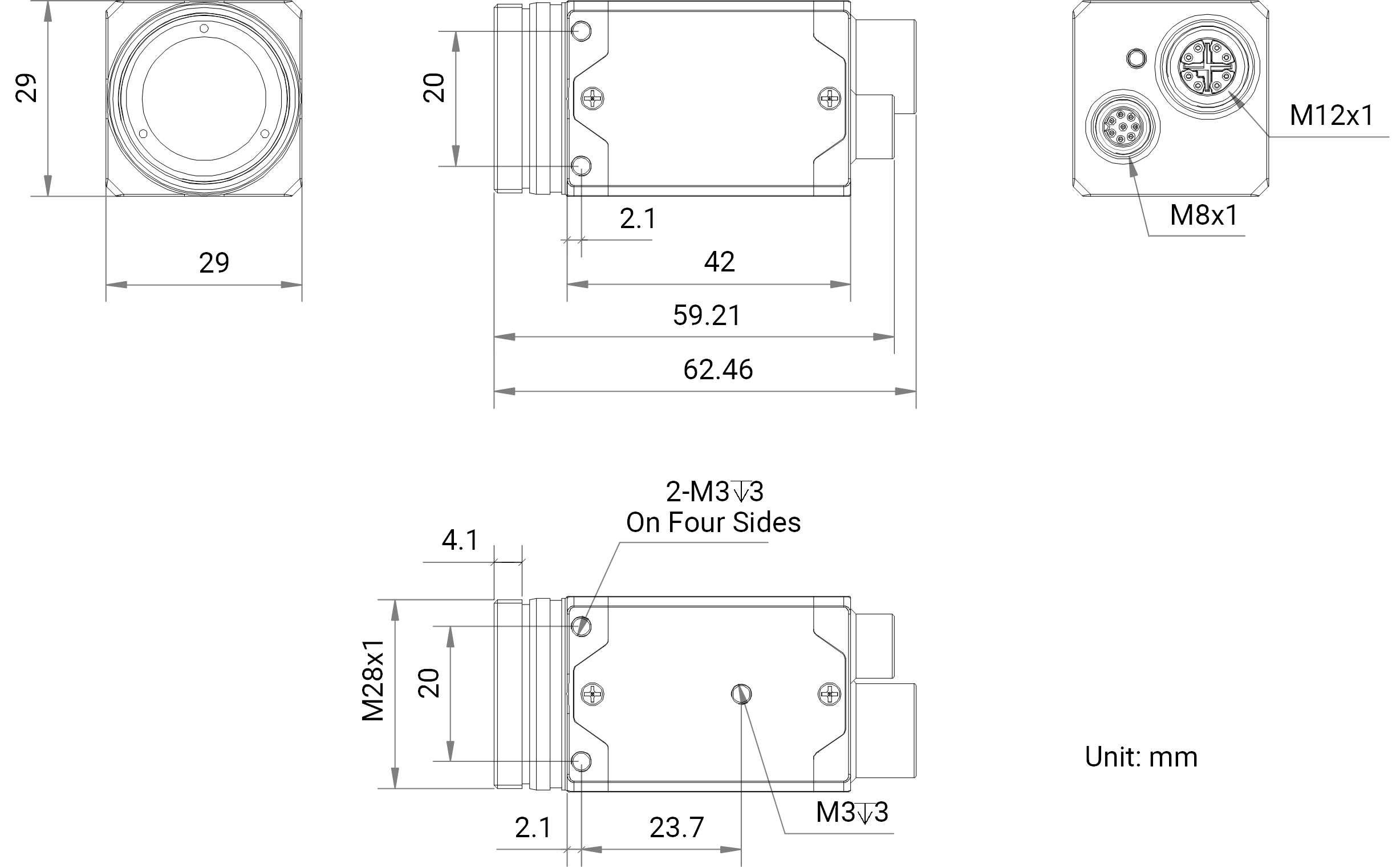

Ölçüler
Software
ModelProduct ModelMV-CT1CG0004/G/NN/NN
Type0.4MP Area Scan Camera, 3rd Gen., GigE, Color, PRO
PerformanceSensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size6.9 μm × 6.9 μm
Sensor size1/2.9″
Resolution720 × 540
Max. frame rate200.5 fps @ 720 × 540 Bayer GB 8
Dynamic range62.6 dB
SNR43.9 dB
Gain0 dB to 24 dB
Exposure time23 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled
Pixel formatMono 8, Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Mono/colorColor
BinningNot supported
DecimationNot supported
Reverse imageSupports horizontal and vertical reverse image output
Electrical featureData interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface type8-pin M12 X-Code waterproof aviation connector
Control interfaceNot supported
Digital I/O8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 1.8 W @ 12 VDC (fast heat balance not enabled)
MechanicalLens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
WeightApprox. 124 g (0.3 lb.)
Ingress protectionIP67 (under proper lens and lens cap installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
GeneralClient softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
