Hikrobot MV-CT1MU0050/G/NN/NN Area Scan Camera

Hikrobot CT Area Scan Camera kategorisine ait ürünümüzün özellikleri:

  • PRO ve MAX versiyonlu cihazlar su geçirmez konektörü destekler.
  • PRO ve MAX versiyonlu cihazlar, hızlı ısı dengesi için hassas sıcaklık kontrolü tasarımını benimser.
  • PRO ve MAX versiyonlu renkli cihazlar, çok spektrumlu füzyon teknolojisine dayalı otomatik renk düzeltmeyi destekler.
  • MAX versiyonlu cihaz, lens ve ışık kaynağını entegre ederek lens odaklama ve ışık kaynağı kontrolünü sağlar.
  • Type-C arayüzünü benimser ve daha yüksek iletim bant genişliğini destekler.
  • USB3 Vision Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

Katalog PDF İndir Katalog Kullanım Kılavuzu PDF İndir Kullanım Kılavuzu
Ürün Özellikleri
Seriler
Ölçüler
Software
ModelProduct ModelMV-CT1MU0050/G/NN/NN
Type5MP Area Scan Camera, 3rd Gen., USB3.0, Mono, PRO
PerformanceSensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size2/3″
Resolution2448 × 2048
Max. frame rate80 fps @ 2448 × 2048 Mono 8
Dynamic range74.4 dB
SNR42.4 dB
GainHigh full well capacity: 0 dB to 12.8 dB High sensitivity: 0 dB to 24 dB
Exposure timeHigh full well capacity: 30 μs to 10 sec High sensitivity: 5 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled
Pixel formatMono 8/10/10Packed/12/12Packed
Mono/colorMono
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical featureData interfaceUSB 3.0, compatible with USB 2.0
Data interface typeType-C interface
Control interfaceNot supported
Digital I/O8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports USB 3.0 power supply
Power consumptionTyp. 1.6 W @ 5 VDC (USB 3.0 provides power supply and fast heat balance not enabled)
MechanicalLens mountC-mount

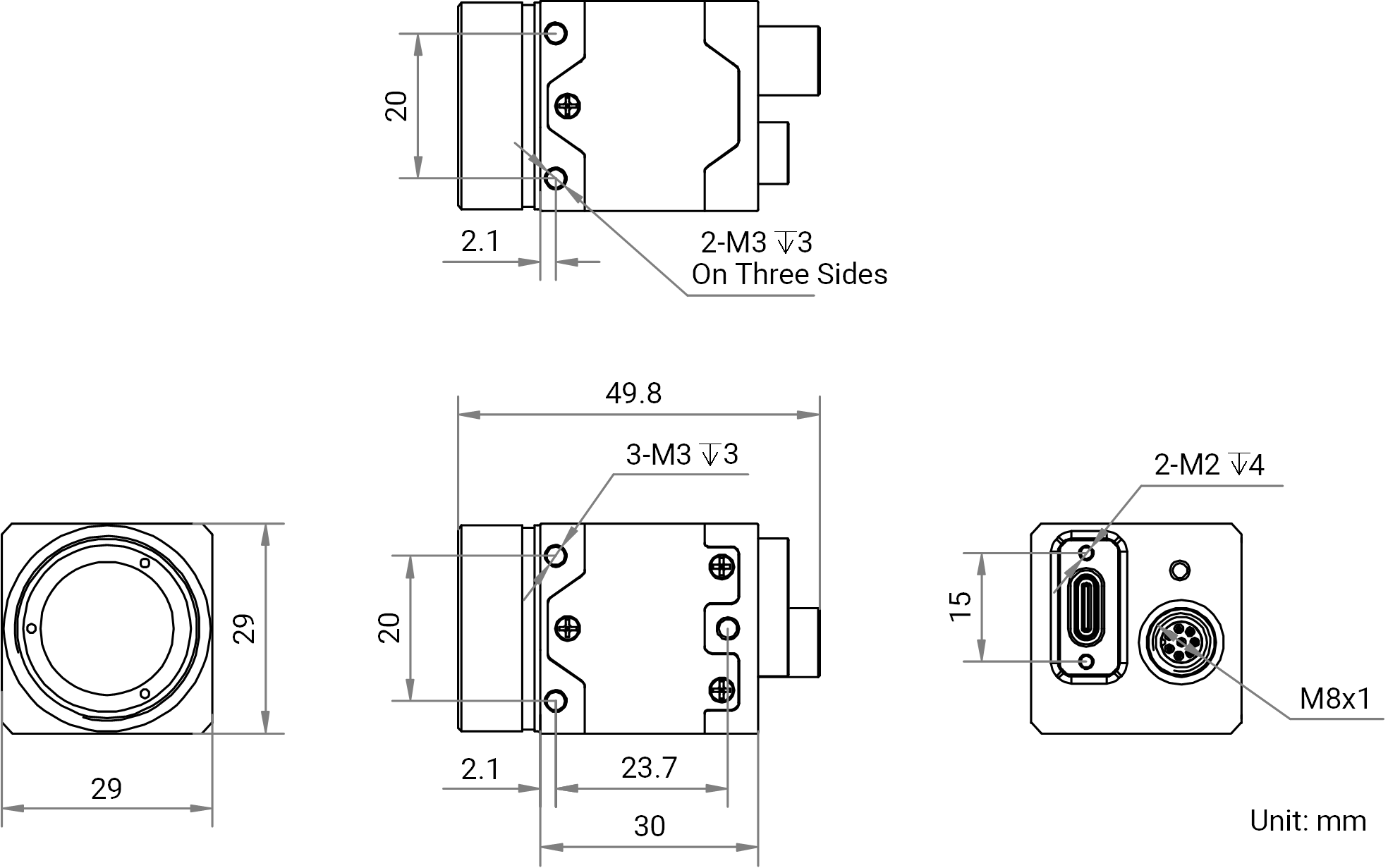

Dimension29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
WeightApprox. 70 g (0.2 lb.)
Ingress protectionIP67 (under proper lens and lens cap installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
GeneralClient softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
CompatibilityUSB3 Vision, GenICam
CertificationCE, RoHS, KC
