Hikrobot CT Area Scan Camera

Hikrobot MV-CT0MG0200/R/NN/NN Area Scan Camera

Hikrobot CT Area Scan Camera kategorisine ait ürünümüzün özellikleri:

  • PRO ve MAX versiyonlu cihazlar su geçirmez konektörü destekler.
  • PRO ve MAX versiyonlu cihazlar, hızlı ısı dengesi için hassas sıcaklık kontrolü tasarımını benimser.
  • PRO ve MAX versiyonlu renkli cihazlar, çok spektrumlu füzyon teknolojisine dayalı otomatik renk düzeltmeyi destekler.
  • MAX versiyonlu cihaz, lens ve ışık kaynağını entegre ederek lens odaklama ve ışık kaynağı kontrolünü sağlar.
  • GigE arayüzünü benimser ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
  • GigE Vision V2.0 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

PDF İndir 3D Çizimler Katalog PDF İndir Katalog Kullanım Kılavuzu PDF İndir Kullanım Kılavuzu
Ürün Özellikleri
Seriler

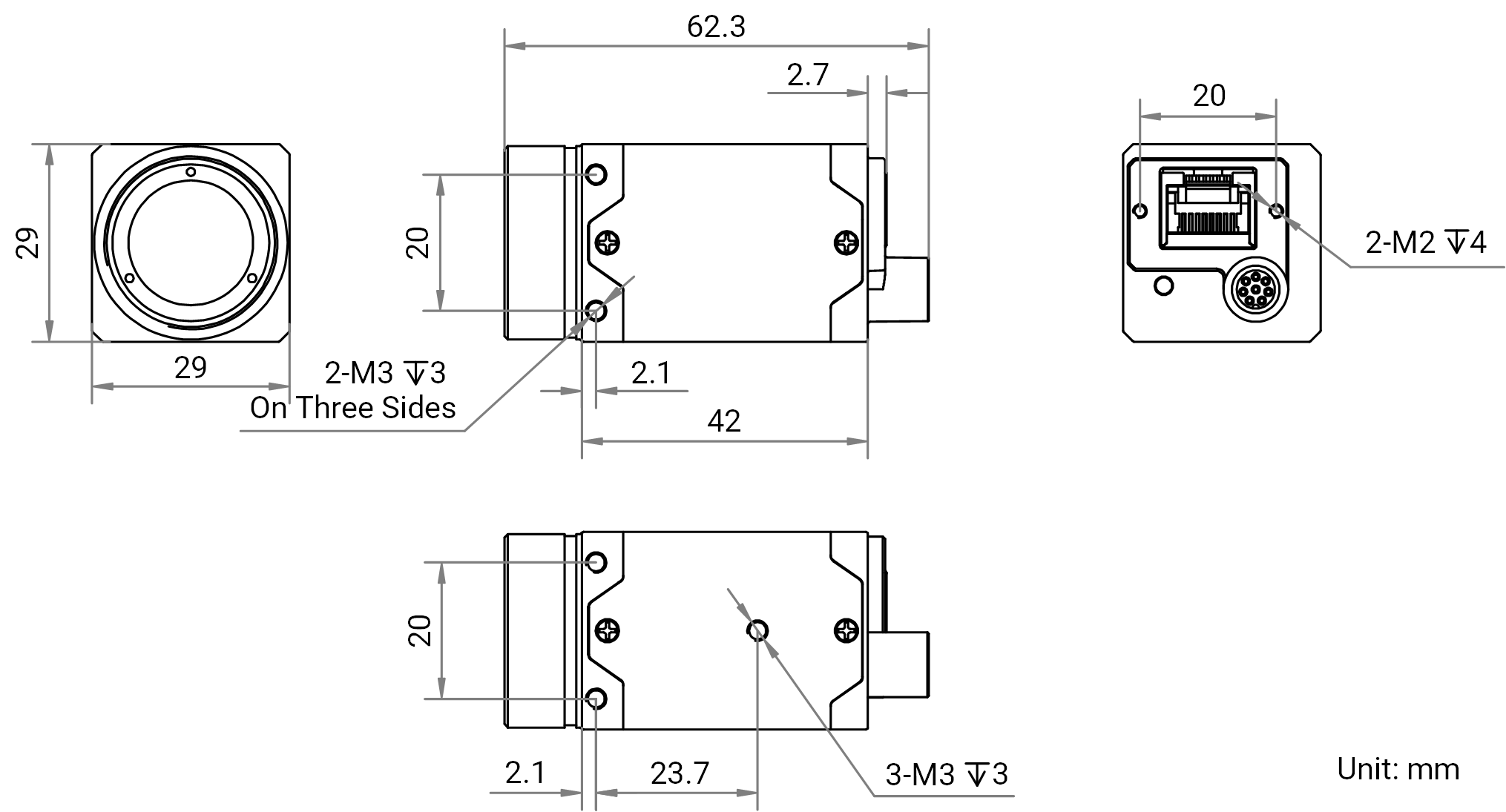

Ölçüler
Software
ModelProduct ModelMV-CT0MG0200/R/NN/NN
Type20MP Area Scan Camera, 3rd Gen., GigE, Mono, BASE
PerformanceSensor typeCMOS, rolling shutter
Sensor modelSony IMX183
Pixel size2.4 μm × 2.4 μm
Sensor size1″
Resolution5472 × 3648
Max. frame rate5.9 fps @ 5472 × 3648 Mono 8
Dynamic range65.9 dB
SNR41.3 dB
Gain0 dB to 24 dB
Exposure time46 μs to 2.78 sec
Exposure modeOff/Once/Continuous exposure mode, supports Trigger Width and Trigger Controlled, supports Rolling and Global Reset
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical featureData interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Data interface typeRJ45 connector
Control interfaceNot supported
Digital I/O8-pin M8 A-Code aviation connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 1.6 W @ 12 VDC
MechanicalLens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
WeightApprox. 116 g (0.3 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
GeneralClient softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
