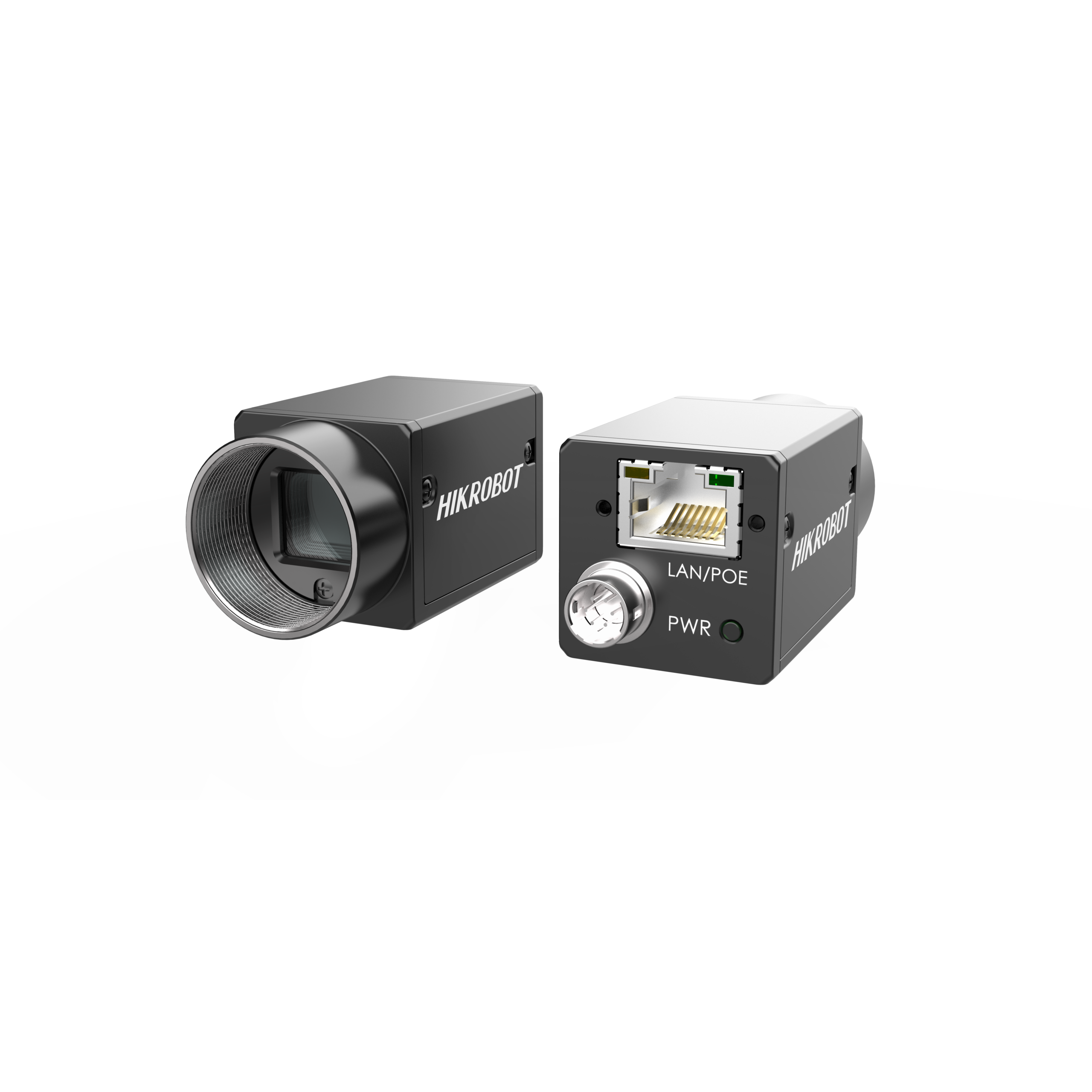

Hikrobot MV-CE100-30GC Area Scan Camera

Hikrobot CE Area Scan Camera

Hikrobot CE Area Scan Camera kategorisine ait ürünümüzün özellikleri:

GigE arayüzünü benimser ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
Seri iletim ve yeniden iletim için 128 MB’a kadar yerel bellek.
Otomatik pozlama kontrolü, LUT, Gama düzeltmesi vb. destekler.
Donanım tetikleme, yazılım tetikleme vb. destekler.
GigE Vision V1.2 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CE100-30GC
Model	Type	10MP Area Scan Camera, GigE,IMT9J003,Color
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	MT9J003
	Pixel size	1.67 μm × 1.67 μm
	Sensor size	1/2.3″
	Resolution	3840 × 2748
	Max. frame rate	7 fps @ 3840 × 2748
	Dynamic range	65 dB
	SNR	34 dB
	Gain	0 dB to 15.3 dB
	Exposure time	50 μs to 2 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono	Color
	Pixel format	Mono 8/10/12, Bayer GR 8/10/10p/12/12p YUV422Packed,YUV422_YUYV_Packed, RGB 8
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Not support
	Reverse image	Supports horizontal reverse image output
	Image buffer	128 MB
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	12 VDC, supports PoE
	Power consumption	Typ. 2.6 W @ 12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
	Weight	Approx. 68 g (0.15 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 80% RH (no condensation)
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
	Compatibility	GigE Vision V1.2, GenICam
	Certification	CE, RoHS, KC
