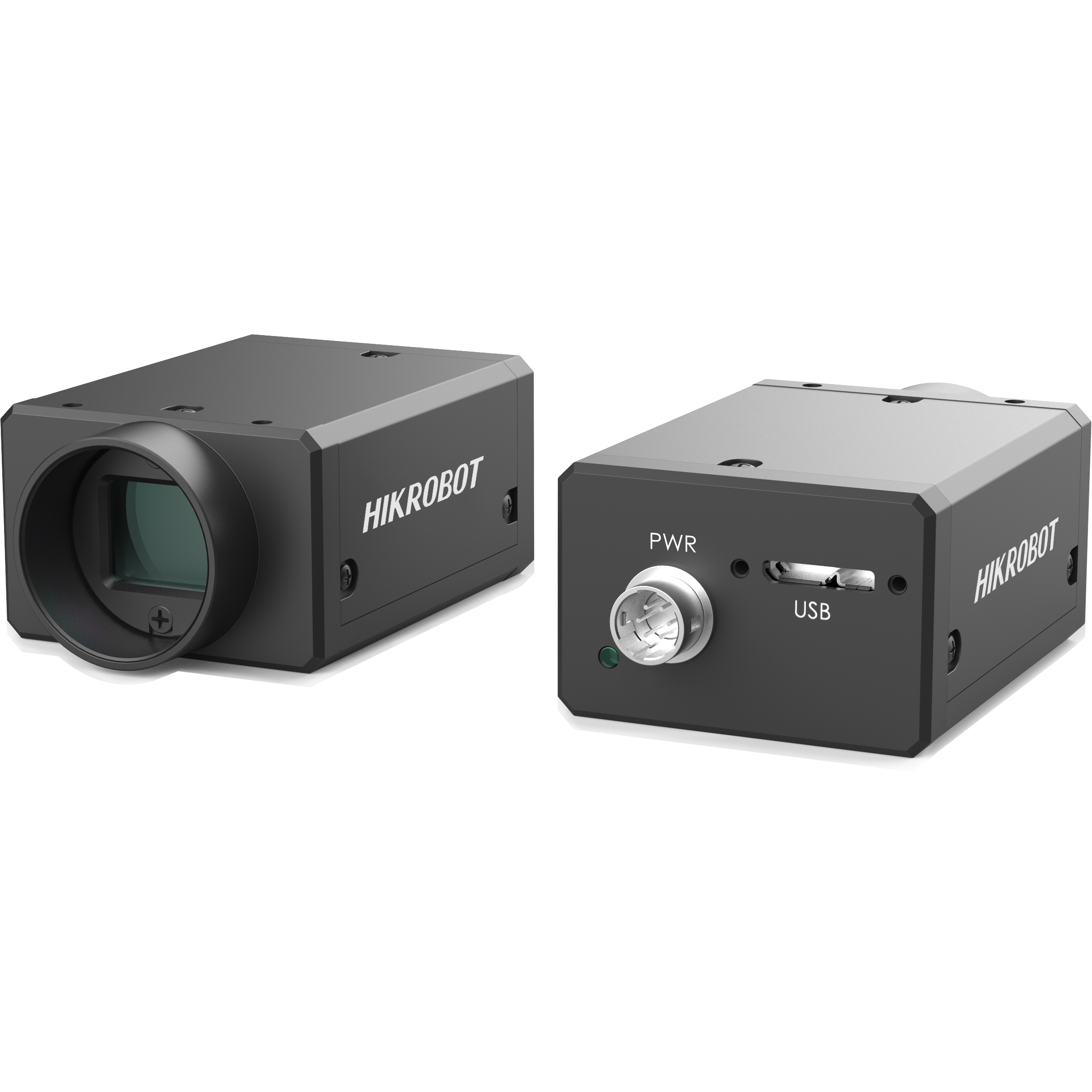

Hikrobot MV-CE200-10UM Area Scan Camera

Name: Hikrobot MV-CE200-10UM Area Scan Camera
Brand: Hikrobot
SKU: VS-5259
Availability: InStock

Hikrobot CE Area Scan Camera

Hikrobot MV-CE200-10UM Area Scan Camera

Hikrobot CE Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Kazanç, pozlama kontrolü, LUT, gama düzeltmesi vb. için otomatik ve manuel ayarlamayı destekler.
Donanım tetikleme, yazılım tetikleme ve serbest çalışma modunu destekler.
USB3.0 arayüzüne bağlanan kabloyu sabitlemek için M2 vida delikleri kullanır.
USB3 Vision Protokolü, GenlCam Standardı ve bu protokol ve standartlara dayalı üçüncü taraf yazılımlarla uyumludur.

3D Çizimler

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CE200-10UM
Model	Type	20MP Area Scan Camera, USB3,IMX183,Mono
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	Sony® IMX183
	Pixel size	2.4 μm × 2.4 μm
	Sensor size	1″
	Resolution	5472 × 3648
	Max. frame rate	19.2 fps @ 5472 × 3648
	Dynamic range	65.5 dB
	SNR	41.5 dB
	Gain	0 dB to 20 dB
	Exposure time	28 μs to 0.7 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset and Rolling
	Mono	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Image buffer	128 MB
Electrical feature	Data interface	USB3.0, compatible with USB2.0
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	12 VDC, supports USB3.0 power supply
	Power consumption	Typ. 2.83 W @ 5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	44 mm × 29 mm × 59 mm (1.7″ × 1.1″ × 2.3″)
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 80% RH (no condensation)
General	Client software	MVS or third-party software meeting with USB3.0 Vision Protocol
	Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
