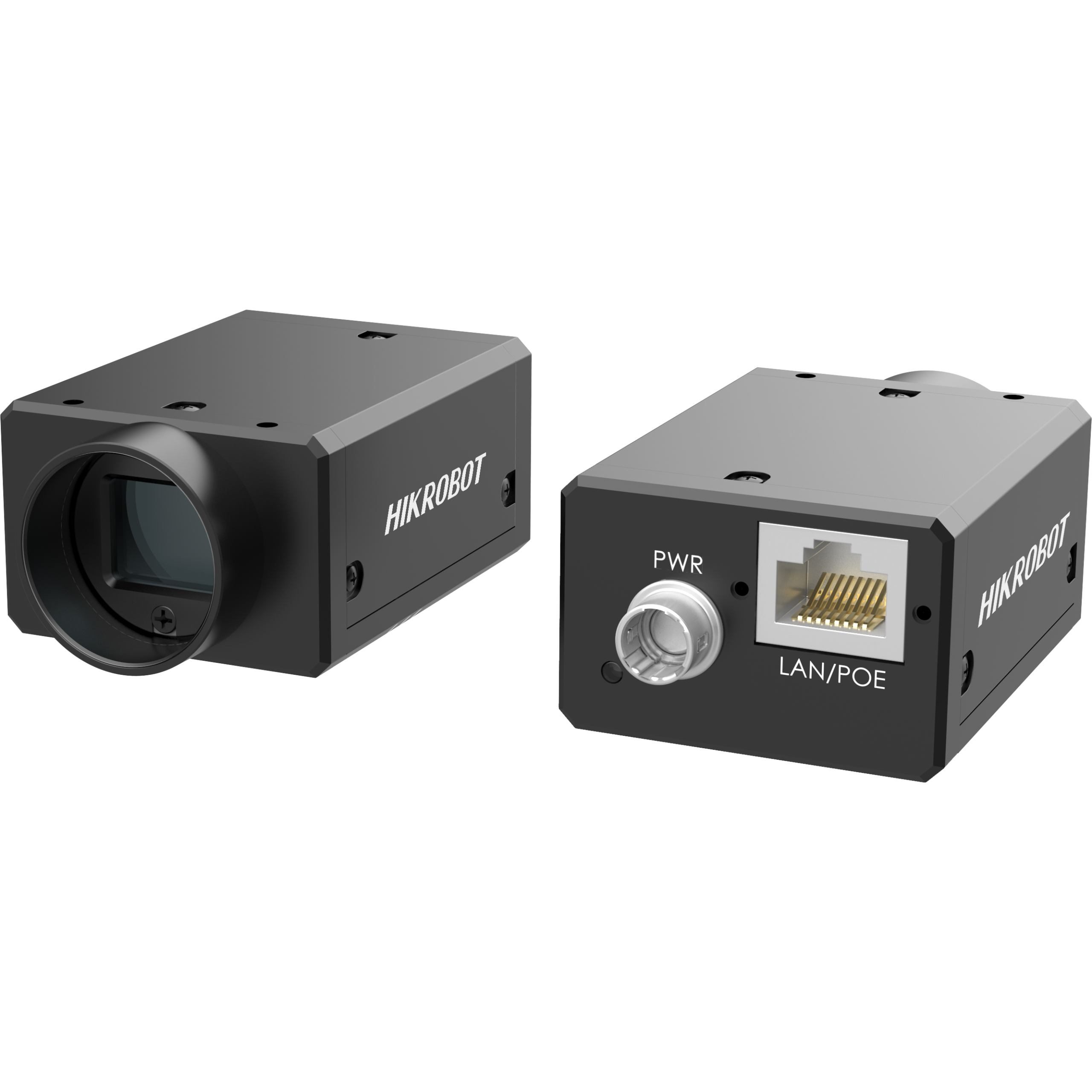

Hikrobot MV-CE200-10GM Area Scan Camera

Hikrobot CE Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

GigE arayüzünü kullanır ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
Seri iletim ve yeniden iletim için 128 MB’a kadar yerel bellek.
Otomatik pozlama kontrolü, LUT, Gama düzeltmesi vb. destekler.
Donanım tetikleme, yazılım tetikleme vb. destekler.
GigE Vision Protokolü V2.0, GenlCam Standardı ve bu protokol ve standartlara dayalı üçüncü taraf yazılımlarla uyumludur..

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CE200-10GM
Model	Type	20MP Area Scan Camera, GigE,IMX183,Mono
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	Sony® IMX183
	Pixel size	2.4 μm × 2.4 μm
	Sensor size	1″
	Resolution	5472 × 3648
	Max. frame rate	5.9 fps @ 5472 × 3648
	Dynamic range	65.5 dB
	SNR	41.5 dB
	Gain	0 dB to 20 dB
	Exposure time	46 μs to 2 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset
	Mono	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Not support
	Reverse image	Supports horizontal reverse image output
	Image buffer	128 MB
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	12 VDC, supports PoE
	Power consumption	Typ. 3.1 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	44 mm × 29 mm × 59 mm (1.7″ × 1.1″ × 2.3″)
	Weight	Approx. 100 g (0.22 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 80% RH (no condensation)
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
