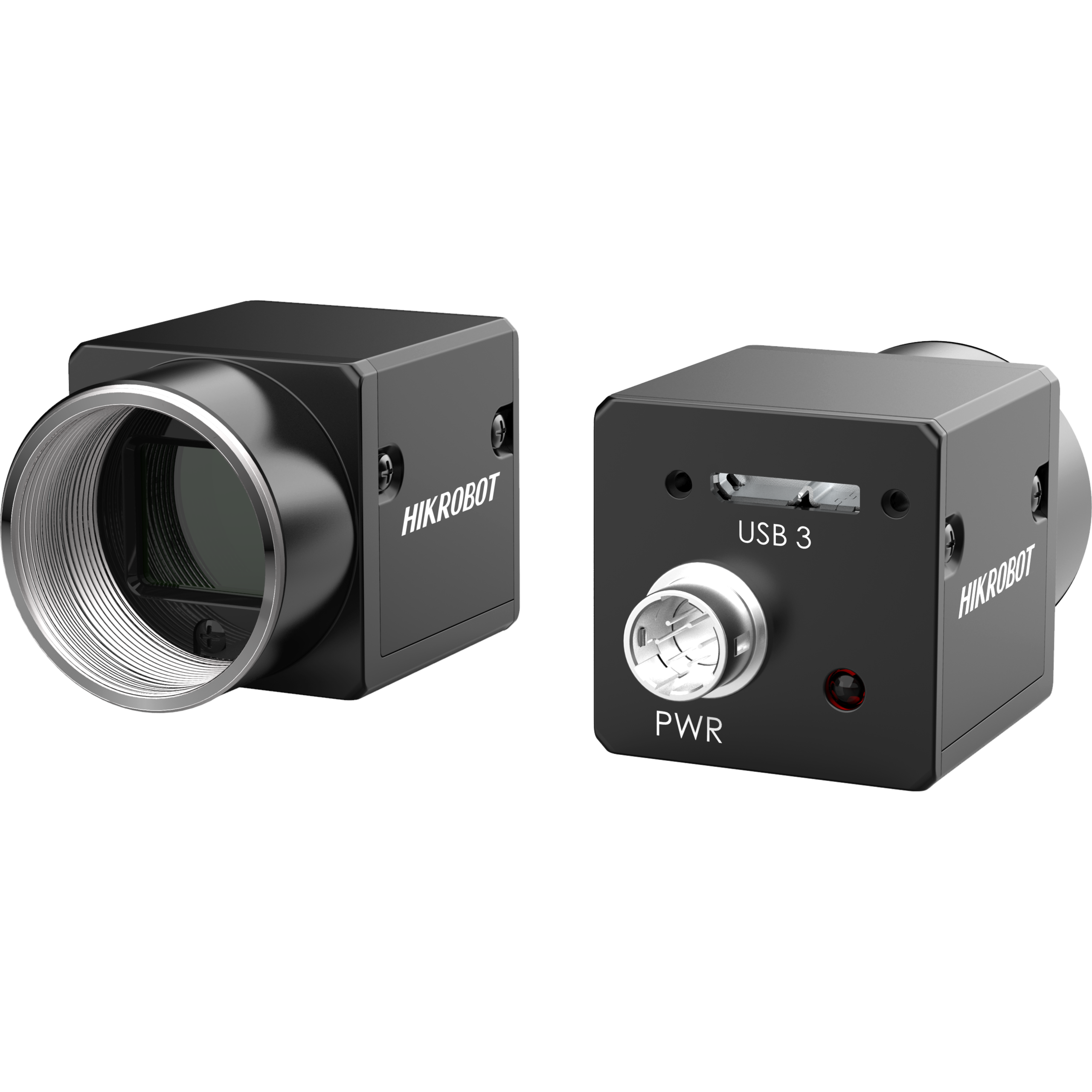

Hikrobot MV-CE120-10UC Area Scan Camera

Name: Hikrobot MV-CE120-10UC Area Scan Camera
Brand: Hikrobot
SKU: VS-5253
Availability: InStock

Hikrobot CE Area Scan Camera

Hikrobot MV-CE120-10UC Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Kazanç, pozlama kontrolü, LUT, gama düzeltmesi vb. için otomatik ve manuel ayarlamayı destekler.
Donanım tetikleme, yazılım tetikleme ve serbest çalışma modunu destekler.
USB3.0 arayüzüne bağlanan kabloyu sabitlemek için M2 vida delikleri kullanır.
USB3 Vision Protokolü, GenlCam Standardı ve bu protokol ve standartlara dayalı üçüncü taraf yazılımlarla uyumludur.

3D Çizimler

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

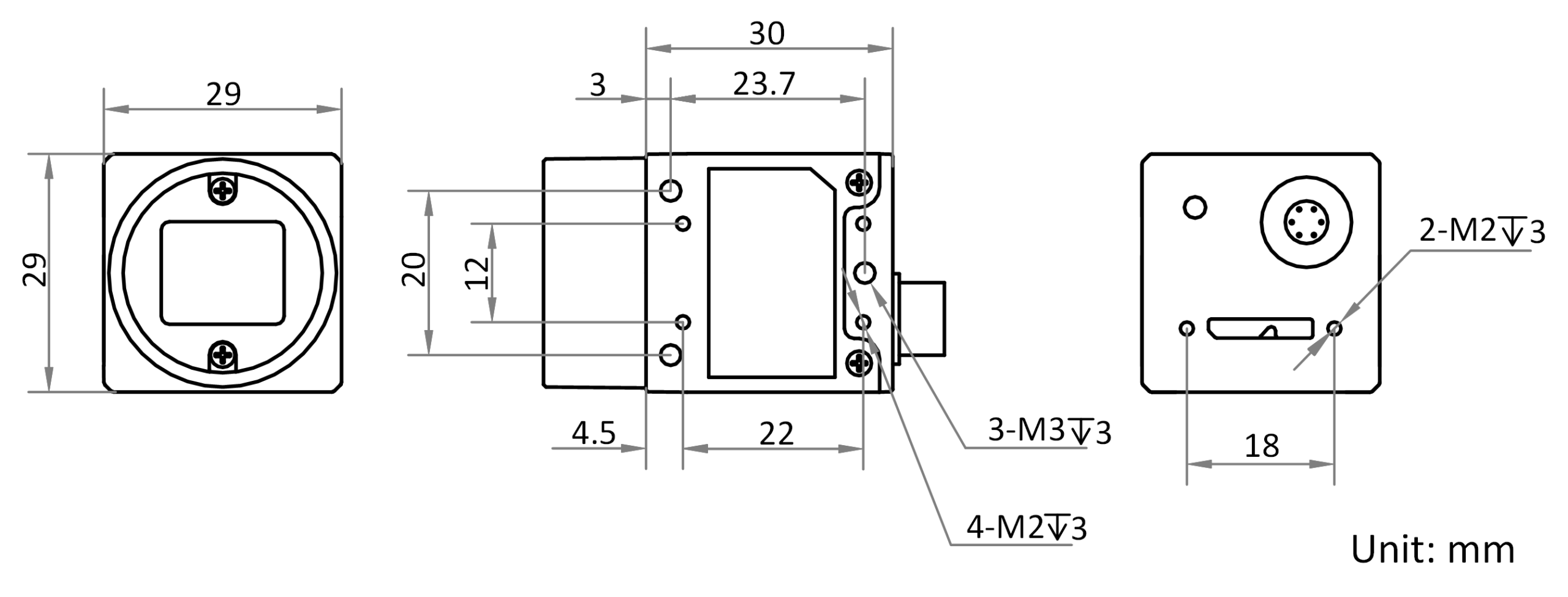

Ölçüler

Software

Model	Product Model	MV-CE120-10UC
Model	Type	12MP Area Scan Camera, USB3,IMX226,Color
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	Sony® IMX226
	Pixel size	1.85 μm × 1.85 μm
	Sensor size	1/1.7″
	Resolution	4000 × 3036
	Max. frame rate	31.9 fps @4000 × 3036
	Dynamic range	70.5 dB
	SNR	40.5 dB
	Gain	0 dB to 27 dB
	Exposure time	30 μs to 0.5 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Rolling and Global Reset
	Mono	Color
	Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Not support
	Decimation	Not support
	Reverse image	Supports horizontal and vertical reverse image output
	Image buffer	128 MB
Electrical feature	Data interface	USB3.0, compatible with USB2.0
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	9 VDC to 24 VDC, USB3.0 power supply
	Power consumption	Typ. 3.42 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
	Weight	Approx. 80 g (0.2 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenICam
	Certification	CE, FCC, RoHS, KC
