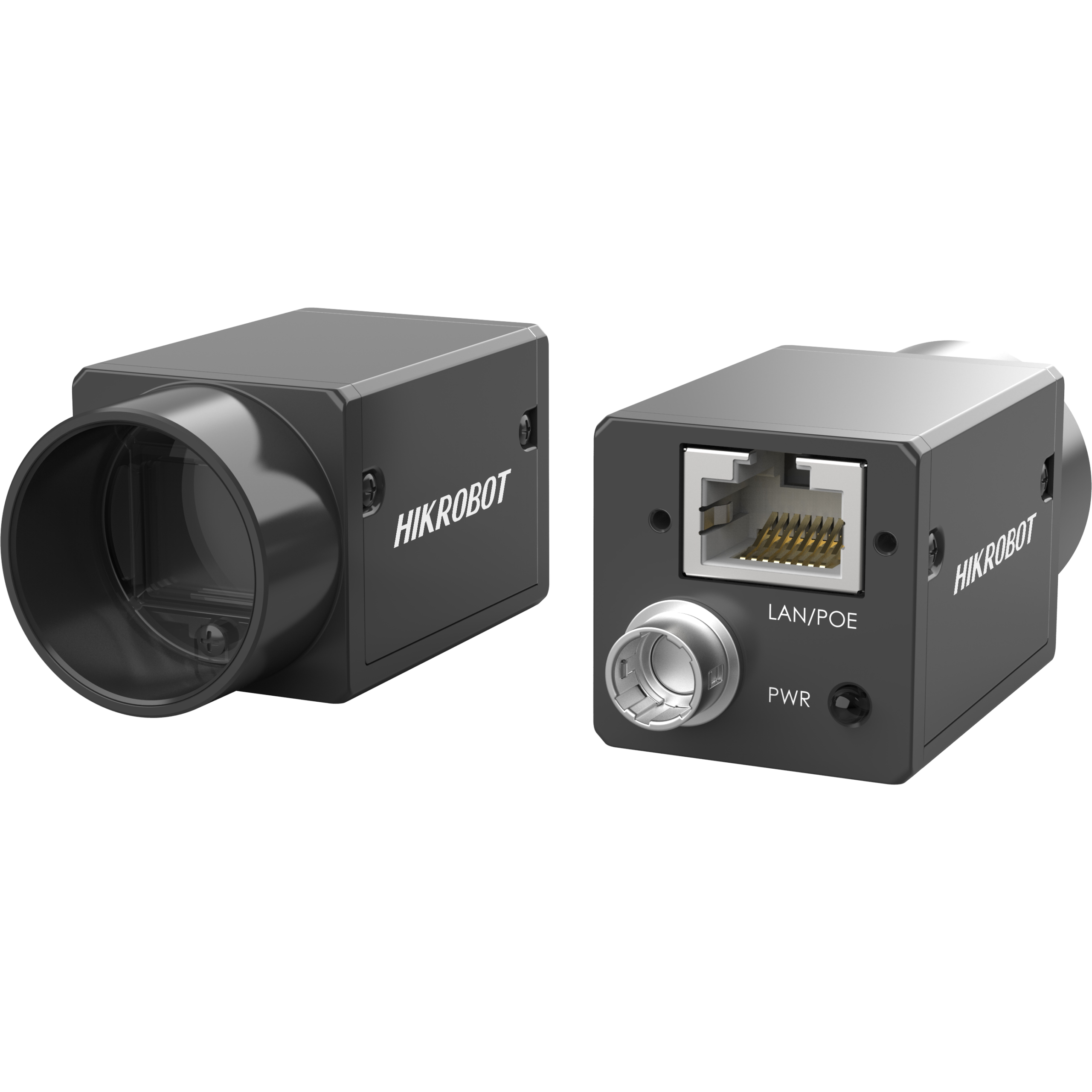

Hikrobot MV-CA003-20GC Area Scan Camera

Name: Hikrobot MV-CA003-20GC Area Scan Camera
Brand: Hikrobot
SKU: VS-5306
Availability: InStock

Hikrobot CA Area Scan Camera

Hikrobot MV-CA003-20GC Area Scan Camera

Hikrobot CA Area Scan Camera kategorisine ait ürünümüzün özellikleri:

GigE arayüzünü kullanır ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
Seri iletim ve yeniden iletim için 128 MB’a kadar yerel bellek.
Otomatik pozlama kontrolü, LUT, Gama düzeltmesi vb. destekler.
Donanım tetikleme, yazılım tetikleme vb. destekler.
GigE Vision V1.2 Protokolü ve protokole dayalı üçüncü taraf yazılımlarla uyumludur.

3D Çizimler

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

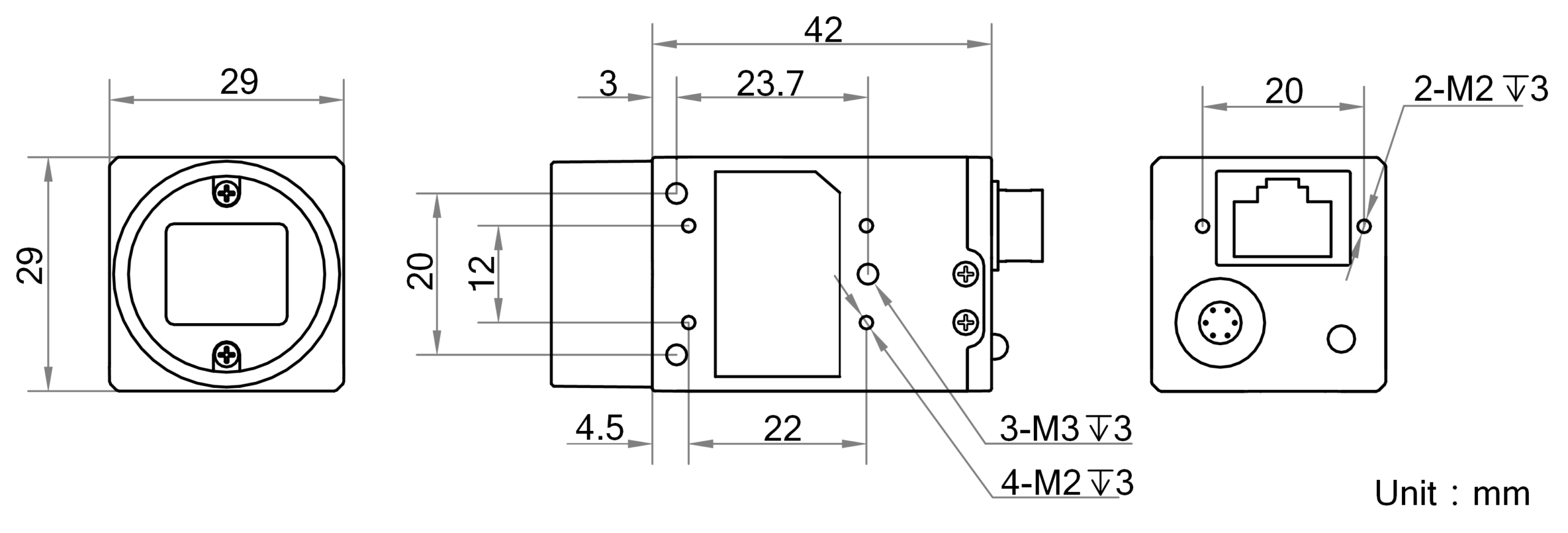

Ölçüler

Software

Model	Product Model	MV-CA003-20GC
Model	Type	0.3MP Area Scan Camera, GigE,PYTHON300,Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	PYTHON300
	Pixel size	4.8 μm × 4.8 μm
	Sensor size	1/4″
	Resolution	672 × 512
	Max. frame rate	336 fps @672 × 512
	Dynamic range	59 dB
	SNR	39.9 dB
	Gain	0 dB to 15 dB
	Exposure time	40 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono	Color
	Pixel format	Mono8/10/12, Bayer RG 8/10/10p/12/12p, YUV 422 Packed, YUV422_YUYV_Packed, RGB 8
	Binning	Supports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
	Image buffer	128 MB
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	12 VDC, supports PoE
	Power consumption	Typ. 2.6 W @ 12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
	Weight	Approx. 68 g (0.15 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 80% RH (no condensation)
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
	Compatibility	GigE Vision V1.2, GenICam
	Certification	CE, RoHS, KC
