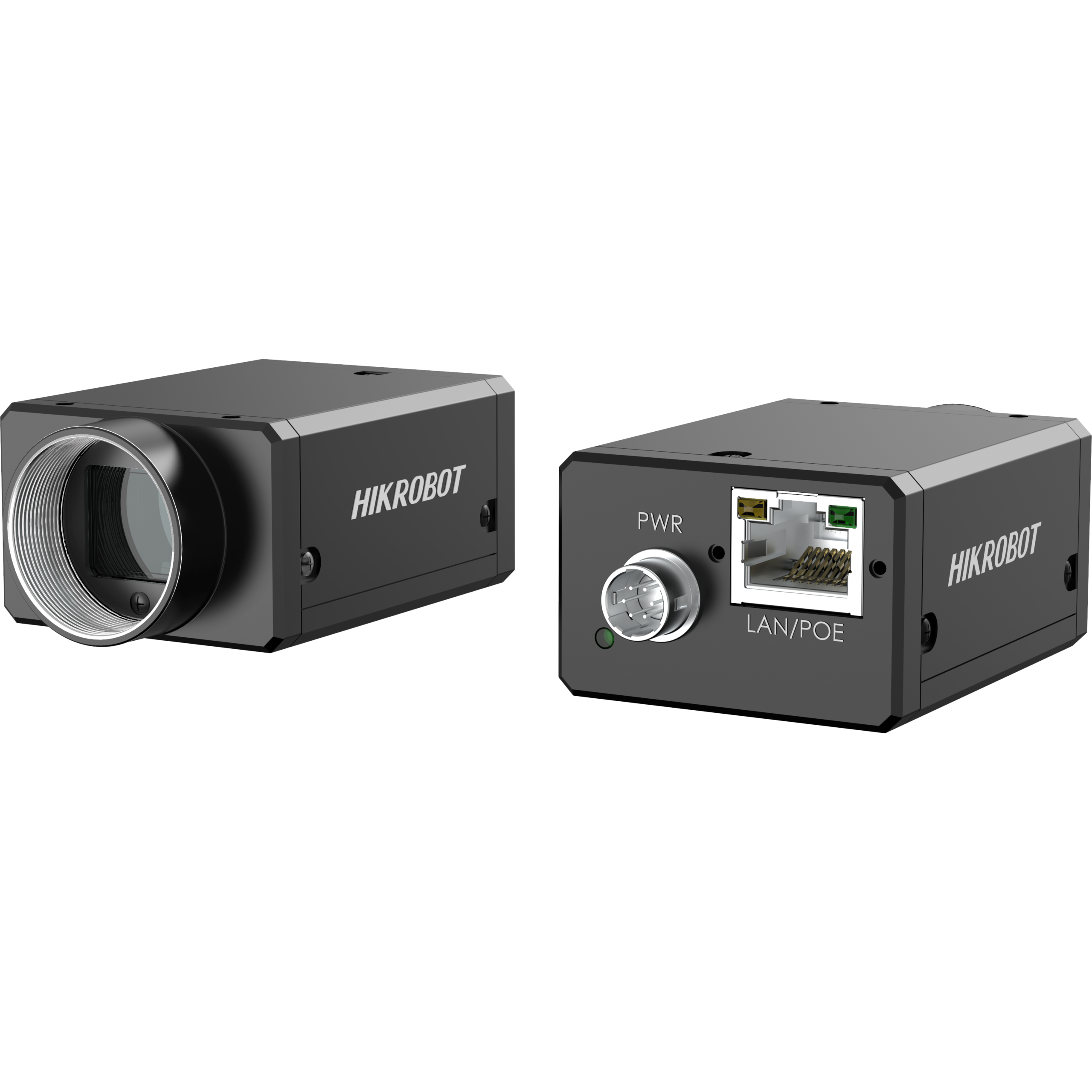

Hikrobot MV-CA017-10GC Area Scan Camera

Name: Hikrobot MV-CA017-10GC Area Scan Camera
Brand: Hikrobot
SKU: VS-5405
Availability: InStock

Hikrobot CA Area Scan Camera

Hikrobot MV-CA017-10GC Area Scan Camera

Hikrobot CE Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Kazanç, pozlama süresi, LUT, gama düzeltmesi, beyaz dengesi vb. için otomatik veya manuel ayarlamayı destekler.
2D gürültü azaltma işlevini destekler.
Yüksek hassasiyet modu ve yüksek tam kuyu modunu destekler.
GigE arayüzünü kullanır ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
GigE Vision V2.0 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

3D Çizimler

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CA017-10GC
Model	Type	1.7MP Area Scan Camera, GigE,IMX432,Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	Sony® IMX432
	Pixel size	9 μm × 9 μm
	Sensor size	1.1″
	Resolution	1608 × 1104
	Max. frame rate	68.5 fps @ 1608 × 1104
	Dynamic range	72.44 dB
	SNR	40 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 1 μs to 5 μs Standard exposure mode: 6 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono	Color
	Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	12 VDC, supports PoE
	Power consumption	Typ. 4.8 W @ 12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 44 mm × 59 mm (1.1″ × 1.7″ × 2.3″)
	Weight	Approx. 100 g (0.22 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 80% RH (no condensation)
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
