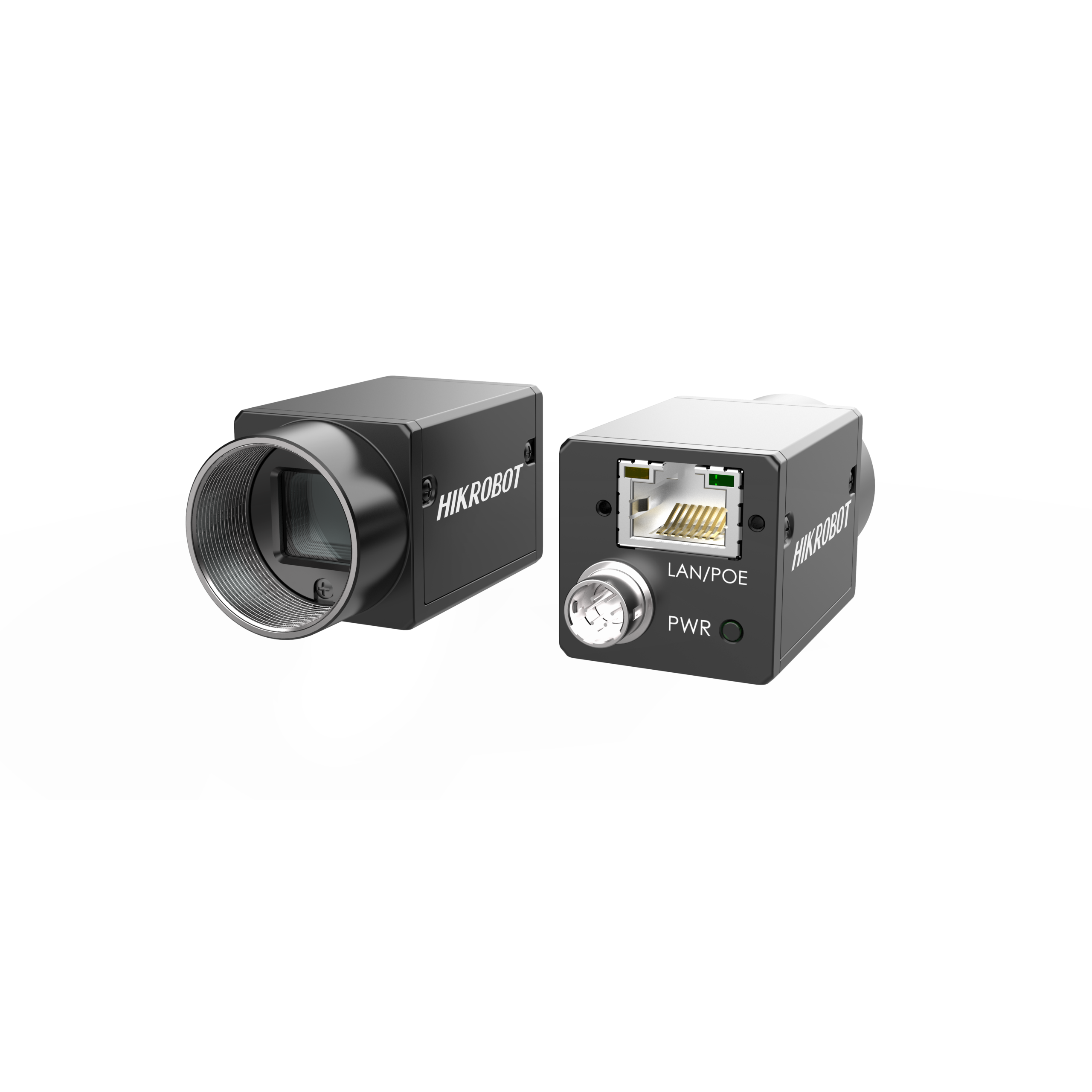

Hikrobot MV-CA050-12GC Area Scan Camera

Name: Hikrobot MV-CA050-12GC Area Scan Camera
Brand: Hikrobot
SKU: VS-5483
Availability: InStock

Hikrobot CA Area Scan Camera

Hikrobot MV-CA050-12GC Area Scan Camera

Hikrobot CA Area Scan Camera kategorisine ait ürünümüzün özellikleri:

GigE çıkışlarını kullanır ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
Pozlama kontrolü, LUT, Gama düzeltmesi vb. için otomatik ve manuel ayarlamayı sağlar.
Donanım tetikleme, yazılım tetikleme, serbest çalışma vb. özellikleri sunar.
GigE Vision Protokolü V2.0, GenlCam Standardı ve bu protokol ve desteklenen üçüncü taraf yazılımlarla uyumludur.

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CA050-12GC
Model	Type	5MP Area Scan Camera, GigE,IMX264,Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	Sony® IMX264
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	2/3″
	Resolution	2448 × 2048
	Max. frame rate	24.1 fps @ 2448 × 2048
	Dynamic range	72 dB
	SNR	40.2 dB
	Gain	0 dB to 17 dB
	Exposure time	UltraShort exposure mode: 1 μs to 14 μs Normal exposure mode: 15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono	Color
	Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Supports 1 × 1, 1 × 2, 2 × 1, 1 × 4, 4 × 1, 2 × 2, 2 × 4, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 3.2 W @ 12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
	Weight	Approx. 88 g (0.19 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 80% RH (no condensation)
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
