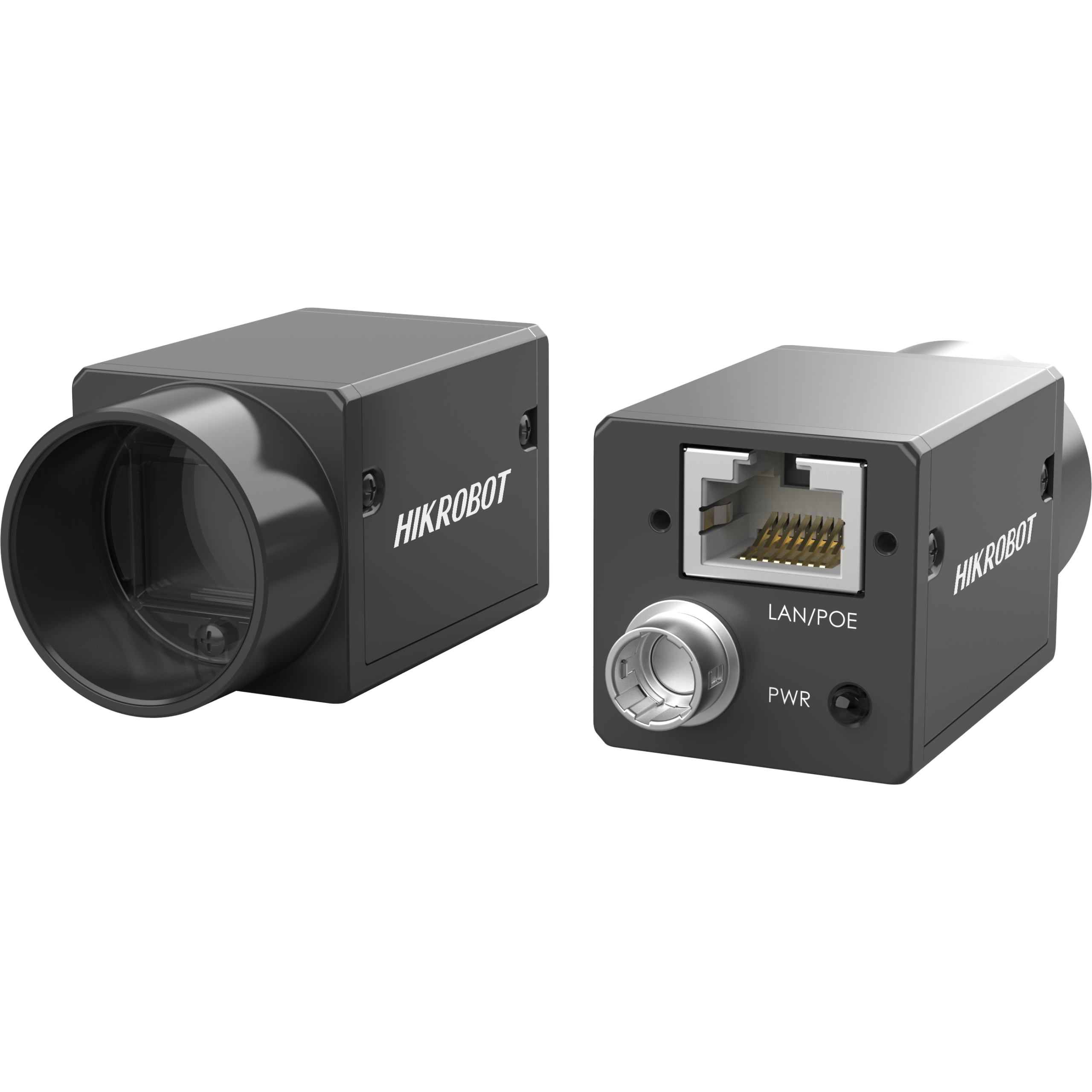

Hikrobot MV-CA016-10GM Area Scan Camera

Hikrobot CA Area Scan Camera

Hikrobot CA Area Scan Camera kategorisine ait ürünümüzün özellikleri:

GigE arayüzünü benimser ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
Pozlama kontrolü, LUT, Gama düzeltmesi vb. için otomatik ve manuel ayarlamayı destekler.
Seri iletim ve yeniden iletim için 128 MB’a kadar yerel bellek.
Donanım tetikleyici, yazılım tetikleyici vb. destekler.
GigE Vision Protokolü V2.0, GenlCam Standardı ve bu protokol ve standartlara dayalı üçüncü taraf yazılımlarla uyumludur.

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CA016-10GM
Model	Type	1.6MP Area Scan Camera, GigE,IMX273,Mono
Performance	Sensor type	CMOS, global shutter
	Sensor model	Sony® IMX273
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1/2.9″
	Resolution	1440 × 1080
	Max. frame rate	78.2 fps @ 1440 × 1080
	Dynamic range	71.4 dB
	SNR	41 dB
	Gain	Gain 0 dB to 20 dB
	Exposure time	1 μs to 10 sec
	Exposure mode	Off/ Once /Continuous exposure mode
	Mono	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
	Image buffer	128 MB
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports PoE
	Power consumption	Typ. 3 W @ 12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
	Weight	Approx. 68 g (0.15 lb)
	Ingress protection	IP 30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 80% RH (no condensation)
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS
