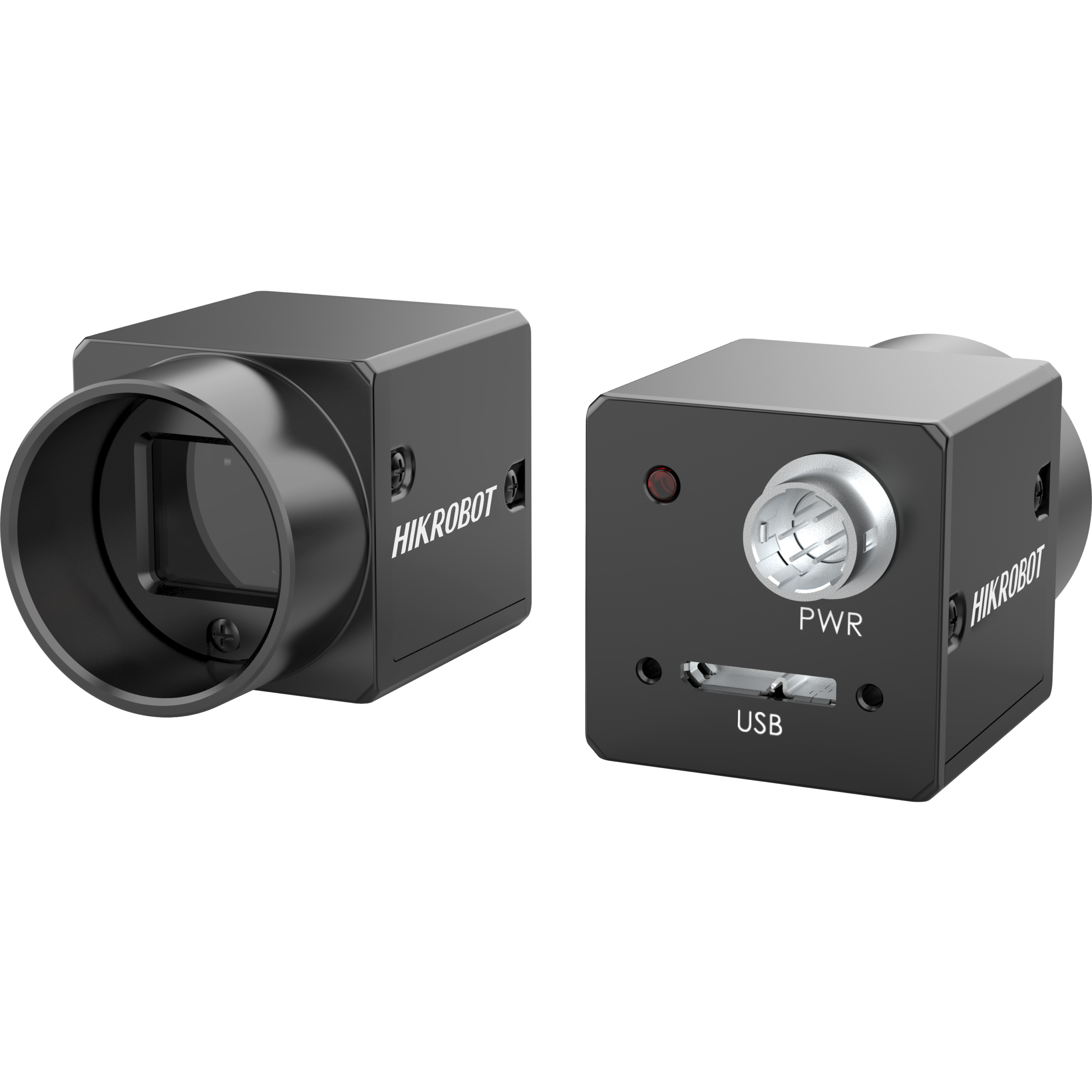

Hikrobot MV-CA050-12UM Area Scan Camera

Name: Hikrobot MV-CA050-12UM Area Scan Camera
Brand: Hikrobot
SKU: VS-5488
Availability: InStock

Hikrobot CA Area Scan Camera

Hikrobot MV-CA050-12UM Area Scan Camera

Hikrobot CA Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Kazanç, pozlama kontrolü, beyaz dengesi vb. için otomatik ve manuel ayarlamayı destekler.
Donanım tetikleme, yazılım tetikleme, serbest çalışma vb. özelliklerini destekler.
USB 3.0 arayüzüne bağlanan kabloyu sabitlemek için M2 vida delikleri kullanılmıştır.
USB3 Vision Protokolü, GenlCam Standardı ve bu protokol ve standartlara dayalı üçüncü taraf yazılımlarla uyumludur.

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CA050-12UM
Model	Type	5MP Area Scan Camera, USB3, IMX264, Mono
Performance	Sensor type	CMOS, global shutter
	Sensor model	Sony® IMX264
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	2/3″
	Resolution	2448 × 2048
	Max. frame rate	47 fps @2448 × 2048
	Dynamic range	72 dB
	SNR	40.2 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
	Image buffer	128 MB
Electrical feature	Data interface	USB3.0, compatible with USB2.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Power consumption	Typ. 2.9 W @5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
	Weight	Approx. 80 g (0.18 lb.)
	Ingress protection	IP30 (under correct lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 80% RH (no condensation)
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
