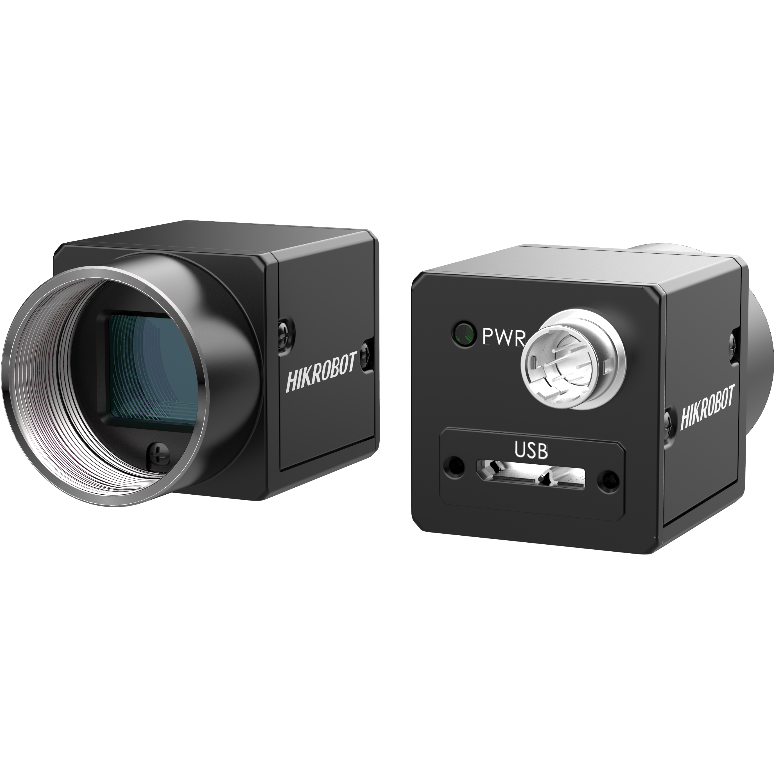

Hikrobot MV-CA013-A0UM Area Scan Camera

Hikrobot CA Area Scan Camera

Hikrobot CA Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Kazanç, pozlama süresi ve LUT, Gama düzeltmesi vb. ayarların otomatik veya manuel olarak ayarlanmasını destekler.
Özelleştirilmiş ROI, yatay ve dikey ters görüntü çıktısını destekler.
Esnek kurulum için kompakt tasarıma sahiptir.
USB3 Vision Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CA013-A0UM
Model	Type	1.3MP Area Scan Camera, USB3, Mono
Performance	Sensor type	CMOS, global shutter
	Pixel size	4.8 μm × 4.8 μm
	Sensor size	1/2″
	Resolution	1280 × 1024
	Max. frame rate	201 fps @ 1280 × 1024
	Dynamic range	53 dB
	SNR	40 dB
	Gain	0 dB to 16 dB
	Exposure time	9 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0, compatible with USB2.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply and PoE
	Power consumption	Typ. 2.4 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
	Weight	Approx. 80 g (0.18 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows 7/10, 32/64-bit Linux
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
