Hikrobot MV-CU013-80UC Area Scan Camera

Name: Hikrobot MV-CU013-80UC Area Scan Camera
Brand: Hikrobot
SKU: VS-4252
Availability: InStock

Hikrobot CU Area Scan Camera

Hikrobot MV-CU013-80UC Area Scan Camera

Hikrobot CU Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Otomatik veya manuel kazanç, pozlama süresi ayarı, LUT manuel ayarı, gama düzeltmesi vb. özelliklerini destekler.
Donanım tetikleme, yazılım tetikleme, serbest çalışma vb. özelliklerini destekler.
Esnek kurulum için kompakt tasarıma sahiptir.
USB3 Vision Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CU013-80UC
Model	Type	1.3MP Area Scan Camera, USB3, SS, Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	SS
	Pixel size	4.0 μm × 4.0 μm
	Sensor size	1/2.7″
	Resolution	1280 × 1024
	Max. frame rate	240.4 fps @1280 × 1024 Bayer BG 8
	Dynamic range	50.6 dB
	SNR	38.7 dB
	Gain	0 dB to 20 dB
	Exposure time	30 μs to 1 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Bayer BG 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0, compatible with USB2.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Power consumption	Typ. 1.7 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-mount

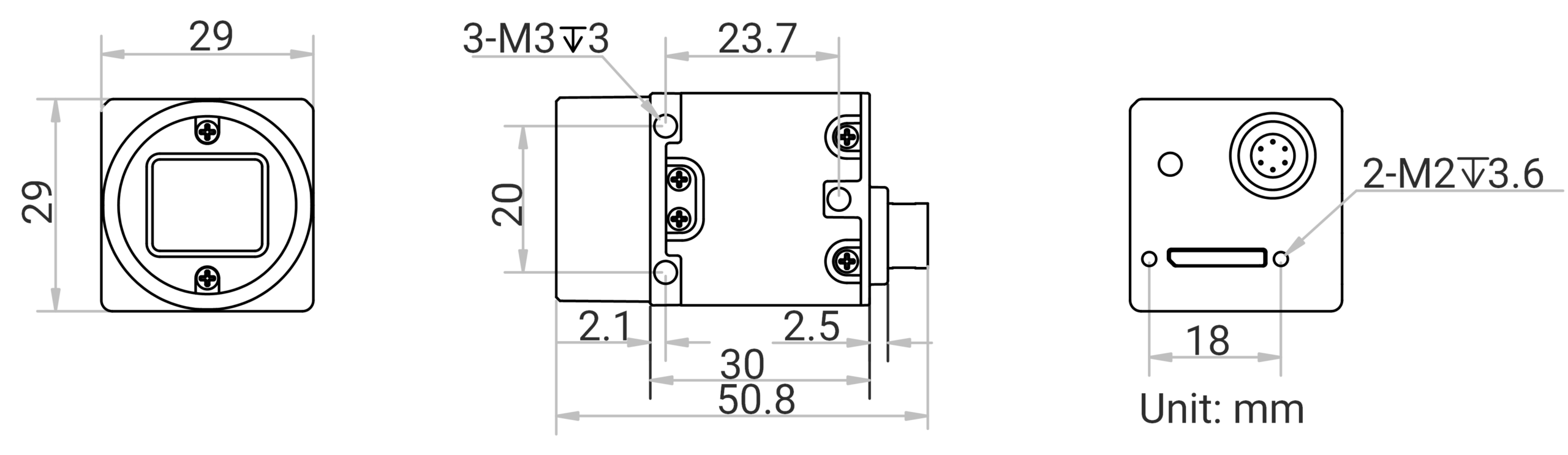

	Dimension	29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
	Weight	Approx. 77 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
