Hikrobot MV-CU060-60GC Area Scan Camera

Hikrobot CU Area Scan Camera

Hikrobot CU Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Düşük tüketimli ve istikrarlı performanslı bir tasarıma sahiptir.
Kazanç, pozlama süresi ve LUT, Gama düzeltmesi vb. ayarların otomatik veya manuel olarak ayarlanmasını destekler.
GigE arayüzünü kullanır ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
Küçük alan gereksinimlerini karşılamak için kompakt bir tasarıma sahiptir.
GigE Vision V2.0 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CU060-60GC
Model	Type	6MP Area Scan Camera, GigE, Color
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	BSI
	Pixel size	2 μm × 2 μm
	Sensor size	1/2.4″
	Resolution	3200 × 1944
	Max. frame rate	19 fps@ 3200 × 1944 Bayer BG 8
	Dynamic range	64 dB
	SNR	33.8 dB
	Gain	0 dB to 24 dB
	Exposure time	52 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Bayer BG 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, PoE is optional
	Power consumption	Typ. 1.6 W @12 VDC
Mechanical	Lens mount	C-mount

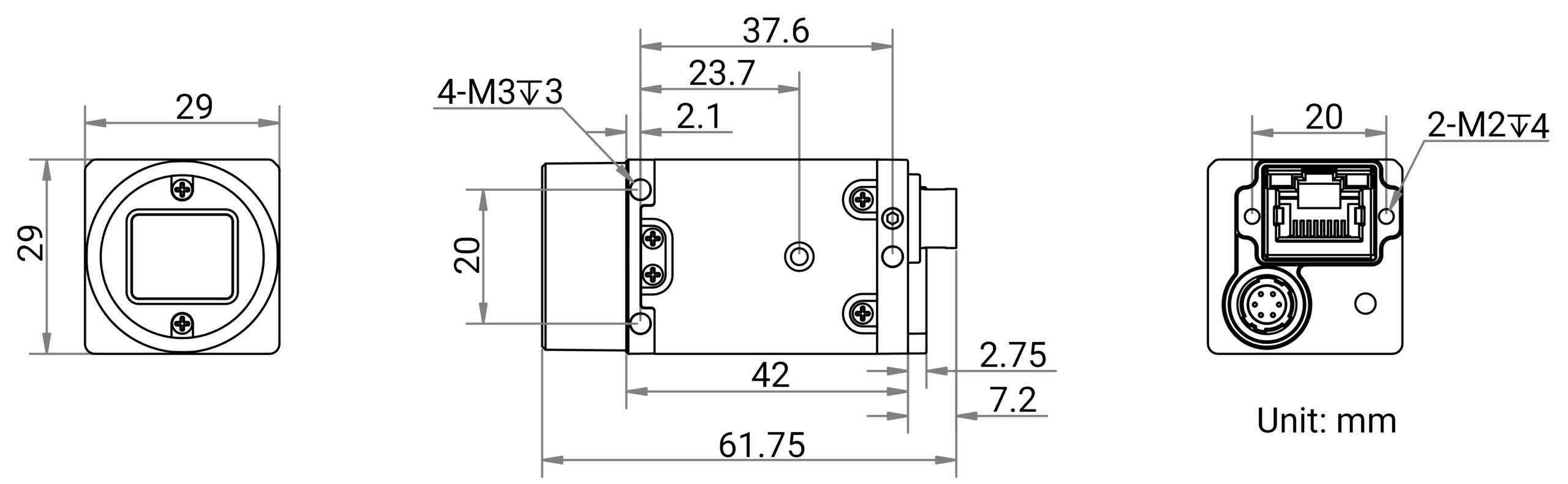

	Dimension	29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
