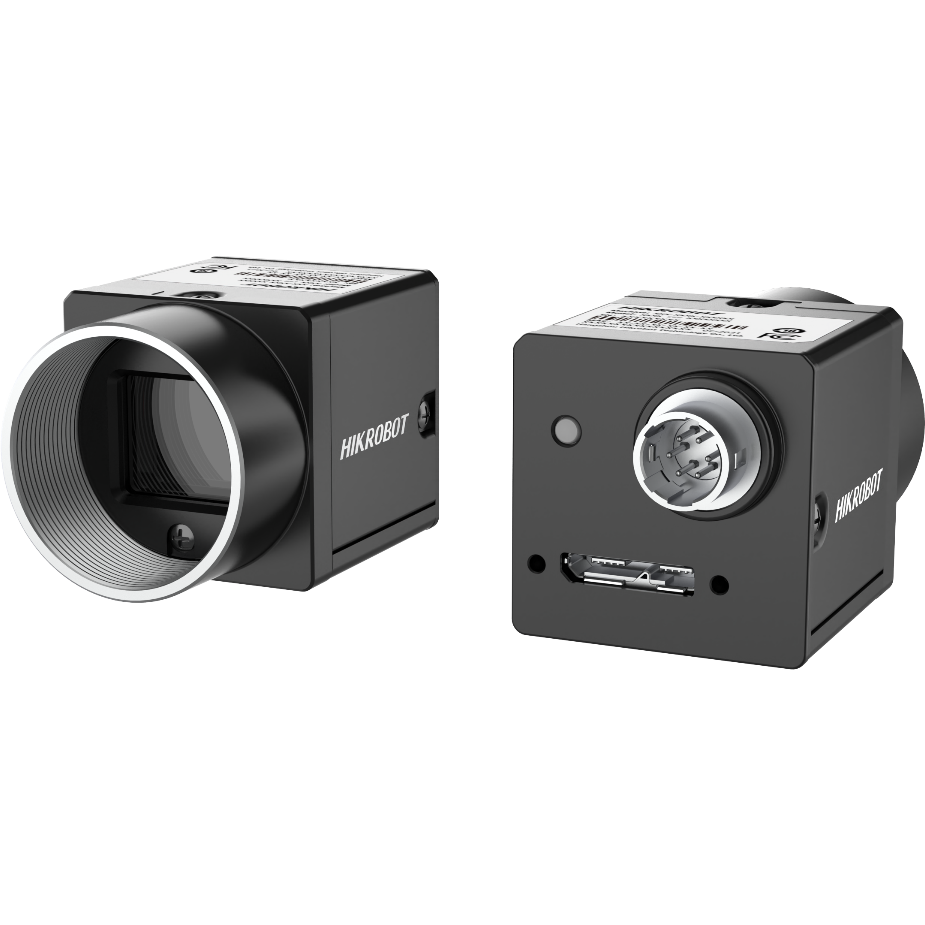

Hikrobot MV-CU050-60UM Area Scan Camera
Hikrobot CU Area Scan Camera kategorisine ait ürünümüzün özellikleri:
- Güç tüketimini azaltmak için yepyeni bir tasarıma sahiptir.
- ROI aracılığıyla kare hızını artırmayı destekler ve binning, yatay ve dikey ters görüntü çıkışını destekler.
- Donanım tetikleme, yazılım tetikleme ve serbest çalışma modlarını destekler.
- USB3 Vision Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.
Ürün Özellikleri
Seriler
Ölçüler
Software
| Model | Product Model | MV-CU050-60UM |
| Type | 5MP Area Scan Camera, USB3 | |
| Performance | Sensor type | CMOS, rolling shutter |
| Sensor model | HK | |
| Pixel size | 2.2 μm × 2.2 μm | |
| Sensor size | 1/2.5″ | |
| Resolution | 2592 × 1944 | |
| Max. frame rate | 48.2 fps @2592 × 1944 Mono 8 | |
| Dynamic range | 65.4 dB | |
| SNR | 40.7 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | 12 μs to 1.25 sec | |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset, Rolling, and Trigger Rolling. | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 2 × 2 | |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply | |
| Power consumption | Typ. 2.7 W@5 VDC (USB3.0 provides power supply) | |
| Mechanical | Lens mount | C-mount |

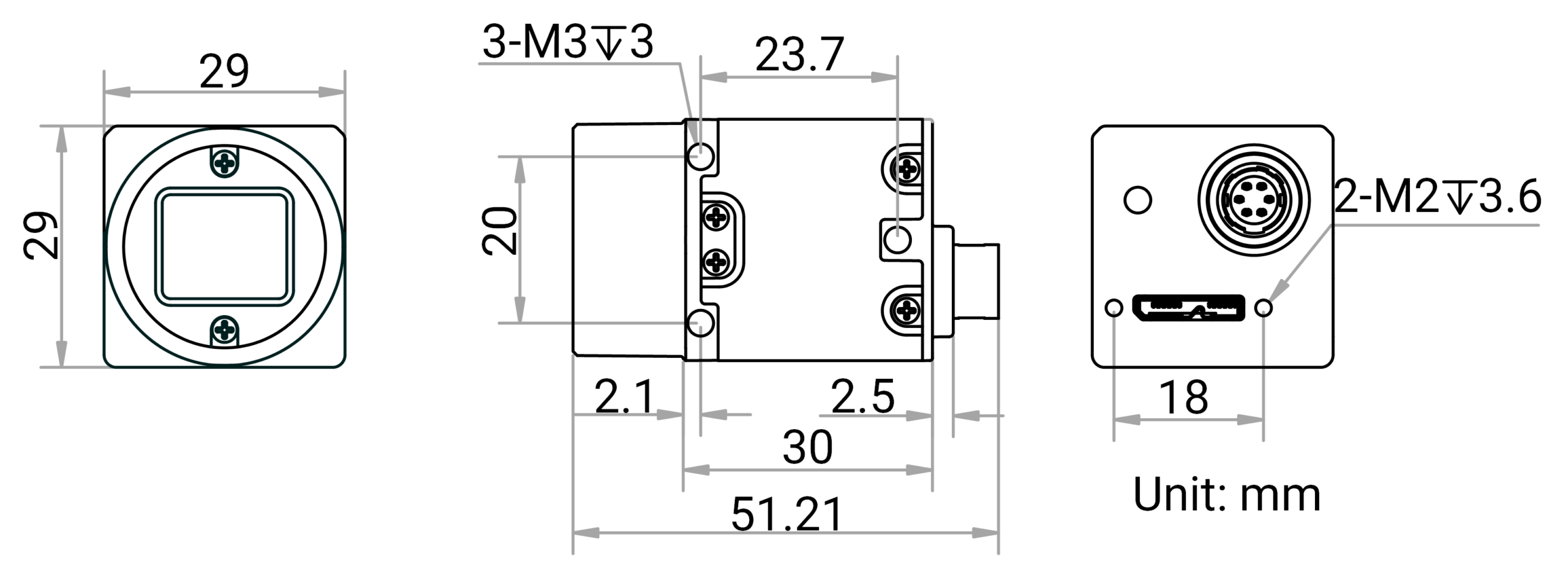

| Dimension | 29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″) | |
| Weight | Approx. 76 g (0.2 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 80% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | USB3 Vision, GenlCam | |
| Certification | CE, RoHS, KC |
