Hikrobot MV-CU020-90GC Area Scan Camera

Name: Hikrobot MV-CU020-90GC Area Scan Camera
Brand: Hikrobot
SKU: VS-4293
Availability: InStock

Hikrobot CU Area Scan Camera

Hikrobot MV-CU020-90GC Area Scan Camera

Hikrobot CU Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Düşük tüketimli ve istikrarlı performanslı tasarıma sahiptir.
Kazanç, pozlama süresi ve LUT, Gama düzeltmesi vb. ayarların otomatik veya manuel olarak ayarlanmasını destekler.
Özelleştirilmiş ROI’yi ve yatay ve dikey ters görüntü çıkışını destekler.
Küçük alan gereksinimlerini karşılamak için kompakt tasarıma sahiptir.
GigE Vision V2.0 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

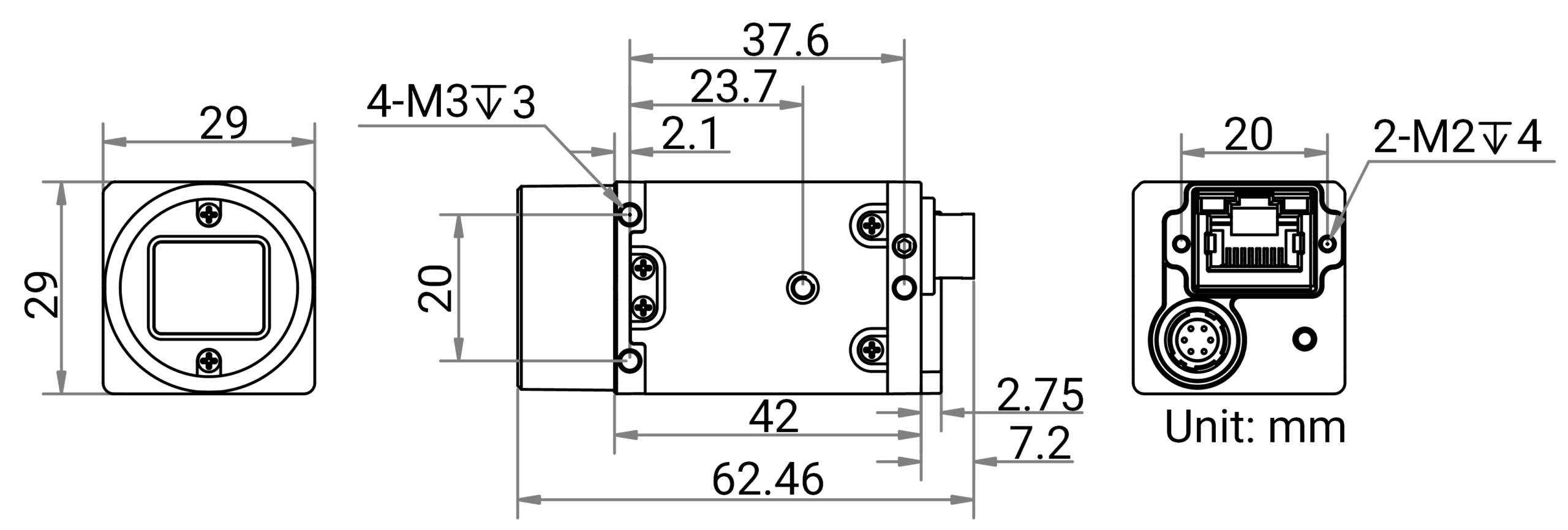

Ölçüler

Software

Model	Product Model	MV-CU020-90GC
Model	Type	2MP Area Scan Camera, GigE, GMAX4002, Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	GMAX4002
	Pixel size	4 μm × 4 μm
	Sensor size	1/1.7″
	Resolution	2048 × 1200
	Max. frame rate	49 fps @ 2048 × 1200 Bayer GB 8
	Dynamic range	66.9 dB
	SNR	40.8 dB
	Gain	0 dB to 11.1 dB
	Exposure time	4 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono	Color
	Pixel format	Bayer GB 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC
	Power consumption	Typ. 2 W @12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
