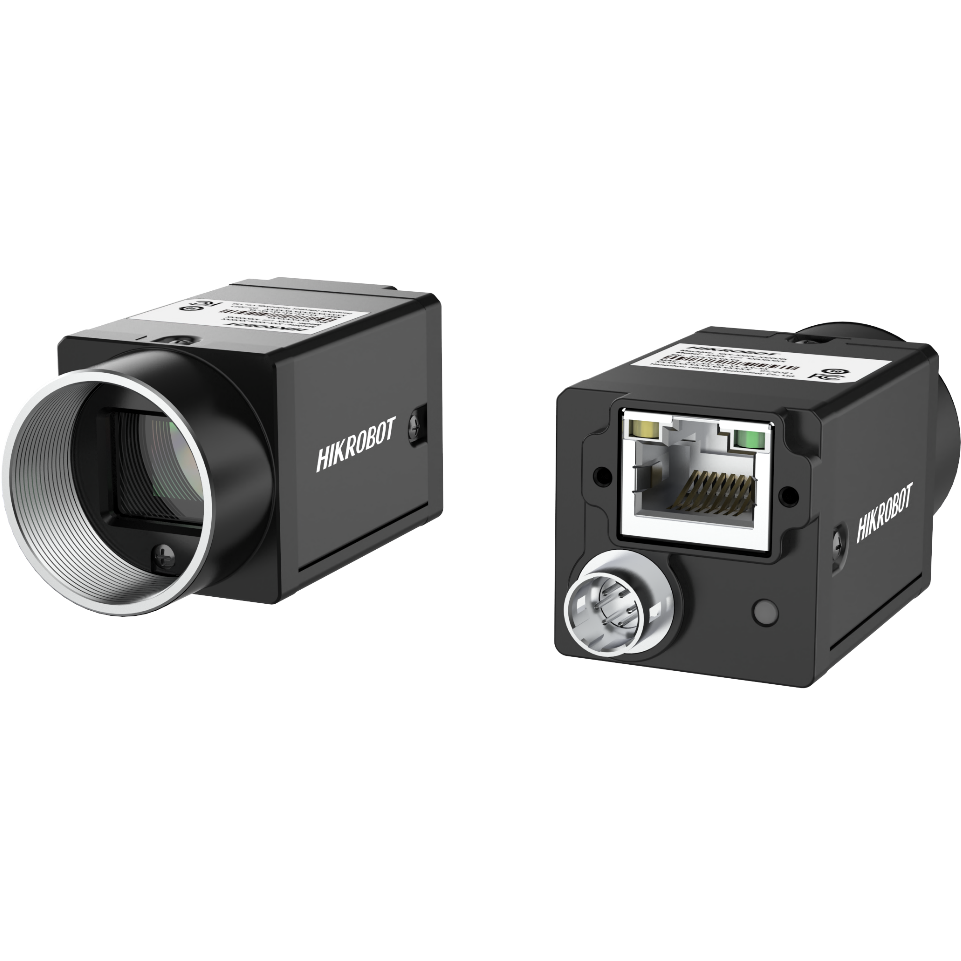

Hikrobot MV-CU050-90GC Area Scan Camera

Hikrobot CU Area Scan Camera

Hikrobot CU Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Güç tüketimini azaltmak için yepyeni bir tasarıma sahiptir.
Kazanç, pozlama süresi, LUT manuel ayarı, gama düzeltmesi vb. ayarların otomatik veya manuel olarak yapılmasını destekler.
Özelleştirilmiş ROI, yatay ve dikey ters görüntü çıktısını destekler.
Esnek kurulum için kompakt bir tasarıma sahiptir.
GigE Vision V2.0 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CU050-90GC
Model	Type	5MP Area Scan Camera, GigE, GMAX2505, Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	GMAX2505
	Pixel size	2.5 μm × 2.5 μm
	Sensor size	1/2″
	Resolution	2600 × 2160
	Max. frame rate	21 fps @2600 × 2160 Bayer BG 8
	Dynamic range	63.8 dB
	SNR	37 dB
	Gain	0 dB to 12 dB
	Exposure time	3 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Bayer BG 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, PoE is optional
	Power consumption	Typ. 2.5 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 47.6 mm (1.1″ × 1.1″ × 1.9″)
	Weight	Approx. 117 g (0.3 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
