Hikrobot MV-CU120-10UM Area Scan Camera

Name: Hikrobot MV-CU120-10UM Area Scan Camera
Brand: Hikrobot
SKU: VS-4410
Availability: InStock

Hikrobot CU Area Scan Camera

Hikrobot MV-CU120-10UM Area Scan Camera

Hikrobot CU Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Güç tüketimini azaltmak için yepyeni bir tasarıma sahiptir.
Kazanç, pozlama süresi, LUT manuel ayarı, gama düzeltmesi vb. ayarların otomatik veya manuel olarak yapılmasını destekler.
Özelleştirilmiş ROI, yatay ve dikey ters görüntü çıktısını destekler.
Küçük alan kurulumları için kompakt bir tasarıma sahiptir.
USB3 Vision Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

3D Çizimler

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

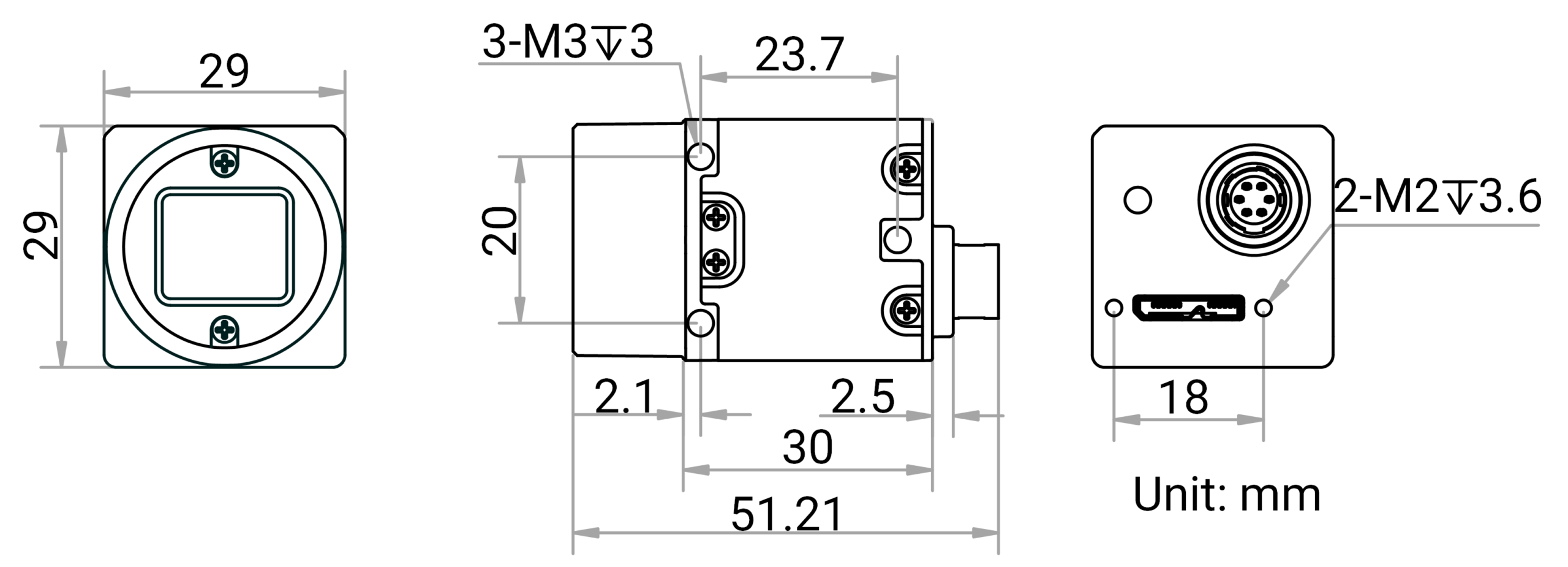

Ölçüler

Software

Model	Product Model	MV-CU120-10UM
Model	Type	12MP Area Scan Camera, USB3, IMX226, Mono
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	Sony® IMX226
	Pixel size	1.85 μm × 1.85 μm
	Sensor size	1/1.7″
	Resolution	4024 × 3036
	Max. frame rate	29.2 fps @4024 × 3036 Mono 8
	Dynamic range	69.4 dB
	SNR	40.3 dB
	Gain	0 dB to 24 dB
	Exposure time	20 μs to 0.5 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset and Rolling
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0, compatible with USB2.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Power consumption	Typ. 1.9 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
	Weight	Approx. 76 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
