Hikrobot MV-CU120-10GC Area Scan Camera

Name: Hikrobot MV-CU120-10GC Area Scan Camera
Brand: Hikrobot
SKU: VS-4405
Availability: InStock

Hikrobot CU Area Scan Camera

Hikrobot MV-CU120-10GC Area Scan Camera

Hikrobot CU Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Düşük güç tüketimi tasarımı ve istikrarlı performans sunar.
Kazanç, pozlama süresi vb. ayarların otomatik ve manuel olarak yapılmasını destekler.
Donanım tetikleme, yazılım tetikleme, serbest çalışma vb. özelliklerini destekler.
GigE arayüzünü kullanır ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
GigE Vision V2.0 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

Katalog

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

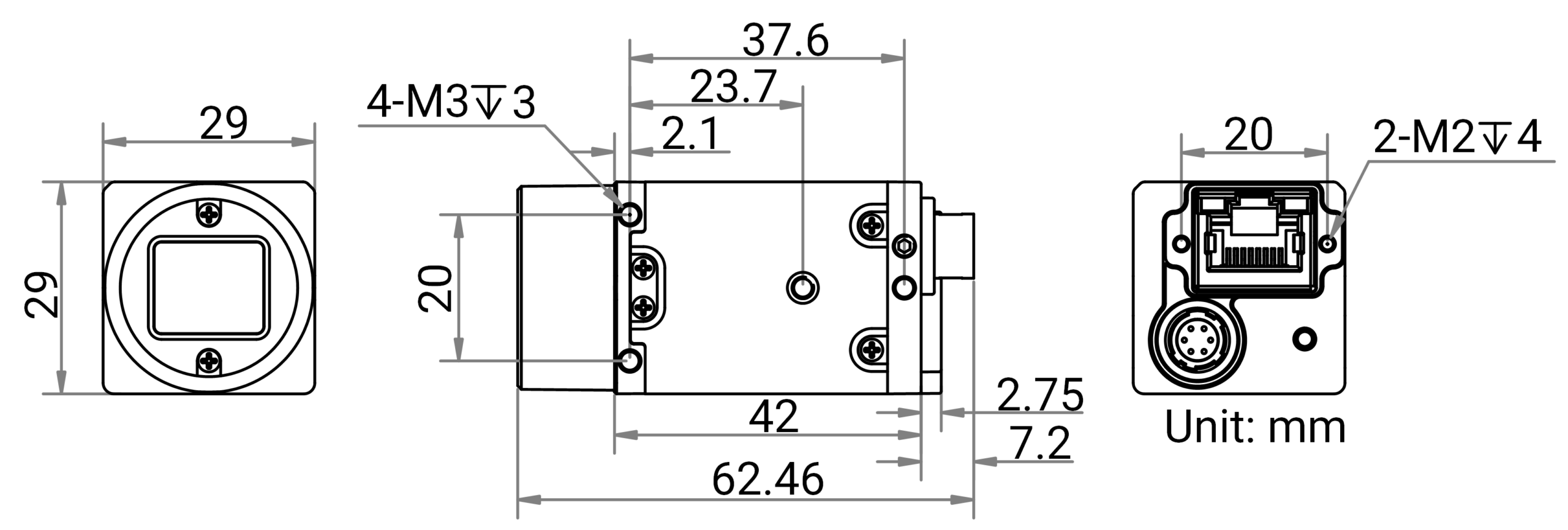

Ölçüler

Software

Model	Product Model	MV-CU120-10GC
Model	Type	12MP Area Scan Camera, GigE, IMX226, Color, with PoE
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	Sony® IMX226
	Pixel size	1.85 μm × 1.85 μm
	Sensor size	1/1.7″
	Resolution	4024 × 3036
	Max. frame rate	9.7 fps @4024 × 3036 Bayer RG 8
	Dynamic range	70.5 dB
	SNR	40.5 dB
	Gain	0 dB to 20 dB
	Exposure time	34 μs to 2 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Bayer RG 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	Gigabit Ethernet, compatible with Fast Ethernet
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, PoE is optional
	Power consumption	Typ. 1.82 W@12 VDC
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
