Hikrobot MV-CH050-10CC Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

  • Yüksek sinyal-gürültü oranı, geniş dinamik aralık ve yüksek kaliteli görüntü sağlayan global deklanşörlü CMOS sensör kullanır.
  • 2432 × 2048 çözünürlük ve 3,45 μm × 3,45 μm piksel boyutu.
  • Camera Link arayüzü üzerinden Base, Medium, Full ve 80-bit yapılandırma modlarını destekler. Esnek montaj için montaj deliklerine sahip kompakt tasarım.

PDF İndir 3D Çizimler Katalog PDF İndir Katalog Kullanım Kılavuzu PDF İndir Kullanım Kılavuzu
Ürün Özellikleri
Seriler

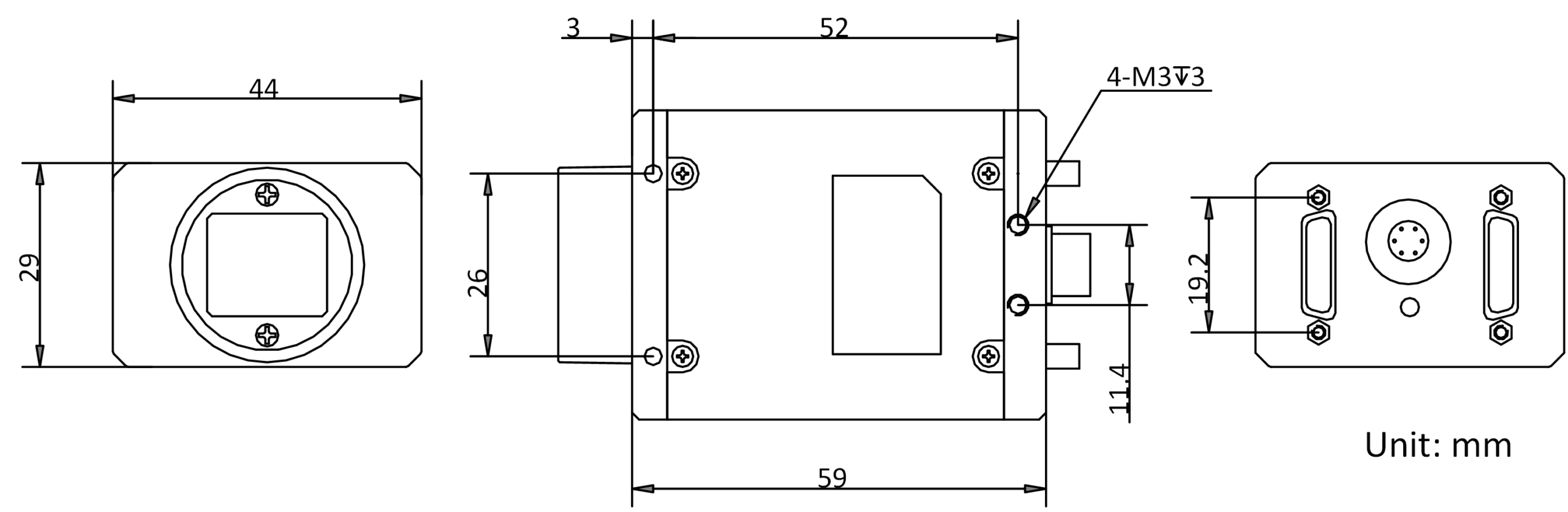

Ölçüler
Software
ModelProduct ModelMV-CH050-10CC
Type5MP Area Scan Camera,Camera Link,IMX250,Color
PerformanceSensor typeCMOS, global shutter
Sensor modelSony® IMX250
Pixel size3.45 μm × 3.45 μm
Sensor size2/3″
Resolution2432 × 2048
Max. frame rate140 fps @2432 × 2048
Configuration modeBase, Medium, Full, 80-bit
Tap geometry1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y
Tap number2 Taps, 4 Taps, 8 Taps, 10 Taps
Pixel clock60 MHz, 70 MHz, 85 MHz
Dynamic range75.4 dB
SNR40 dB
Gain0 dB to 17 dB
Exposure time15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatBayer RG 8/10/12, RGB 8
BinningNot support
DecimationNot support
Reverse imageSupports horizontal and vertical reverse image output
Electrical featureData interfaceCamera Link with SDR interface
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC
Power consumptionTyp. 3.41 W@12 VDC
MechanicalLens mountC-mount
Dimension44 mm × 29 mm × 59 mm (1.7″ × 1.1″ × 2.3″)
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 80% RH, non-condensing
GeneralClient softwareMVS or frame grabber software meeting with GenlCam Protocol
Operating system32/64-bit Windows XP/7/10
CompatibilityCamera Link V2.0, GenlCam
CertificationCE, RoHS, KC
