Hikrobot MV-CH1510-10FM-M72-TF Area Scan Camera

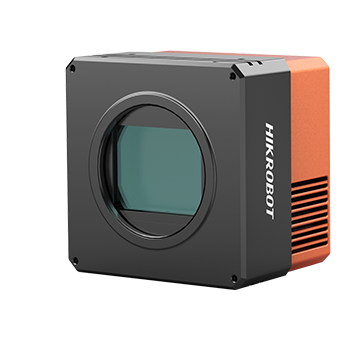

Hikrobot MV-CH1510-10FM-M72-TF Area Scan Camera - Ürün Görseli

Hikrobot CH Area Scan Camera

Hikrobot MV-CH1510-10FM-M72-TF Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Binning, LSC Sequencer, FFC ve diğer ISP işlevlerini destekler.
Veri iletimi için 10GigE fiber optik arayüzünü kullanır ve maksimum iletim mesafesi 300 metreye ulaşır.
Uzun pozlama koşullarında sensör sıcaklığını düşürmek ve yüksek kaliteli görüntüler sağlamak için TEC teknolojisini kullanır.
GigE Vision V2.0 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

Katalog PDF İndir

Kullanım Kılavuzu PDF İndir

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

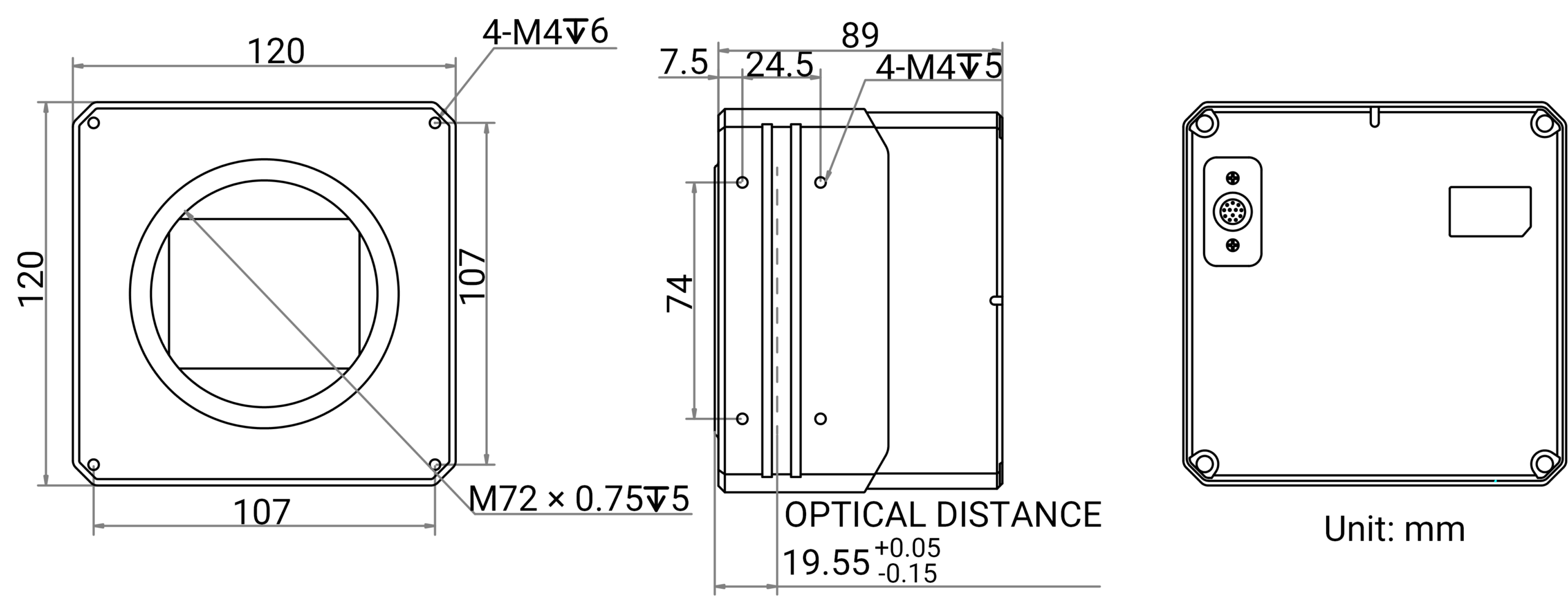

Ölçüler

Software

Model	Product Model	MV-CH1510-10FM-M72-TF
Model	Type	151MP Area Scan Camera, IMX411, 10G BASE-X, Mono, M72-mount, with TEC and fan
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	Sony® IMX411
	Pixel size	3.76 μm × 3.76 μm
	Sensor size	66.7 mm
	Resolution	14208 × 10640
	Max. frame rate	6.2 fps @ 14208 × 10640 Mono 8
	Dynamic range	78.8 dB
	SNR	45 dB
	Gain	0 dB to 36 dB
	Exposure time	30 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Rolling mode and Global Reset
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed/16
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
Electrical feature	Data interface	10 Gigabit Ethernet (10000 Mbit/s)
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
	Power supply	24 VDC
	Power consumption	Typ. 11.28 W @ 24 VDC (non-TEC mode) Typ. 48.96 W @ 24 VDC (TEC mode)
Mechanical	Lens mount	M72*0.75, flange back length 19.55 mm
	Dimension	120 mm × 120 mm × 89 mm (4.7″ × 4.7″ × 3.5″)
	Weight	Approx. 2.5 kg (5.5 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
