Hikrobot MV-CH120-60UC Area Scan Camera

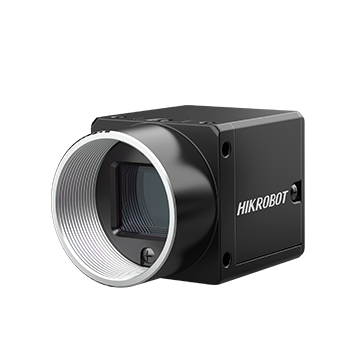

Hikrobot MV-CH120-60UC Area Scan Camera - Ürün Görseli

Hikrobot CH Area Scan Camera

Hikrobot MV-CH120-60UC Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Mantıksal kaynakları optimize etmek ve güç tüketimini azaltmak için yeni donanım platformunu benimser.
Kazanç, pozlama süresi, beyaz dengesi, LUT, Gama düzeltmesi vb. ayarların otomatik veya manuel olarak yapılmasını destekler.
CCM, Sequencer, Super Bayer, Super Palette vb. formatları destekler. Yepyeni bir yapı tasarımına sahiptir ve dört taraftan kurulumu destekler.
USB3 Vision Protokolü, GenlCam Standardı ve bu protokol ve standartlara dayalı üçüncü taraf yazılımlarla uyumludur.
USB3 Vision Protokolü, GenlCam Standardı ve bu protokol ve standartlara dayalı üçüncü taraf yazılımlarla uyumludur.

Katalog PDF İndir

Kullanım Kılavuzu PDF İndir

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

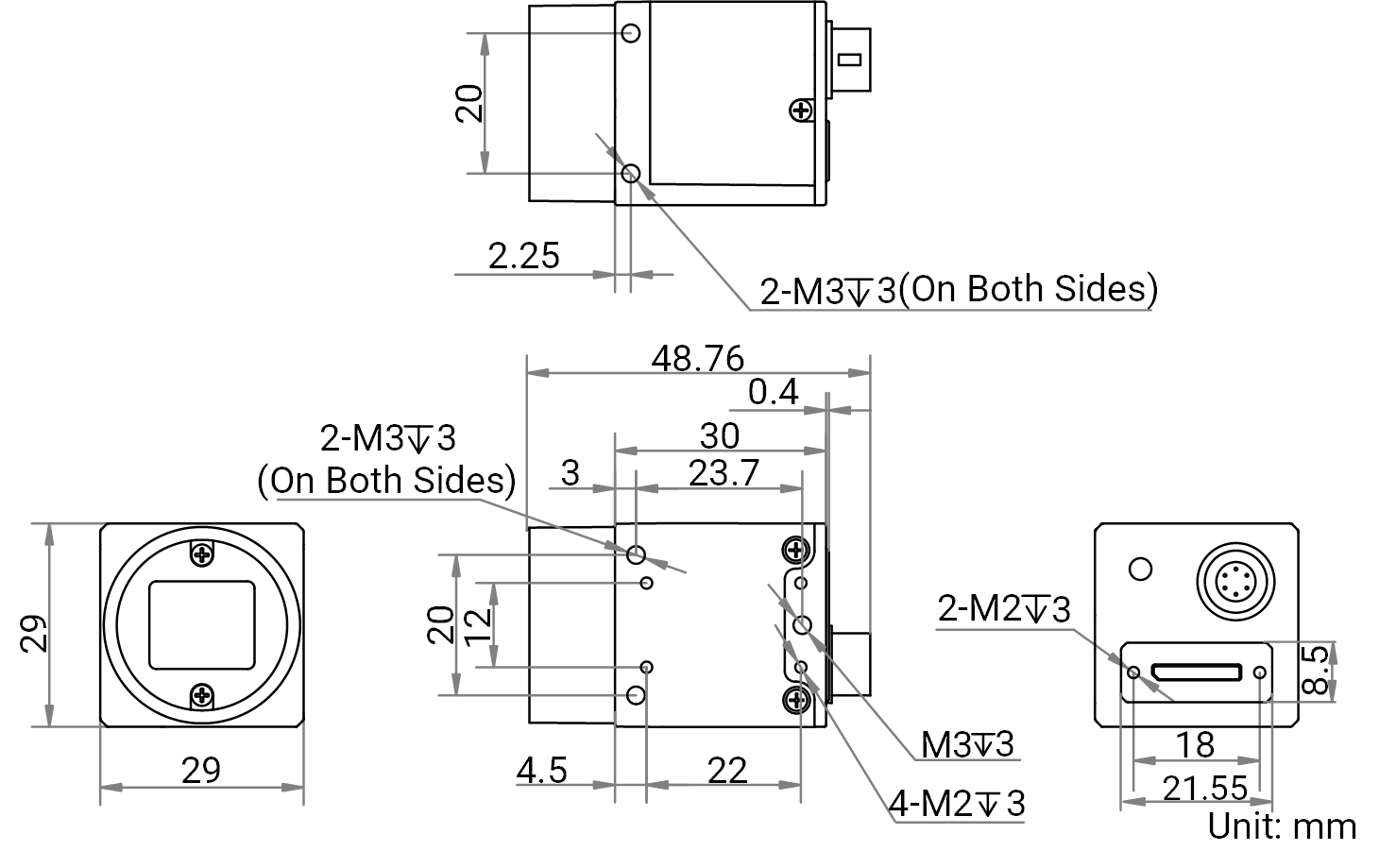

Ölçüler

Software

Model	Product Model	MV-CH120-60UC
Model	Type	12MP Area Scan Camera, Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	Stacked BSI
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1.1″
	Resolution	4096 × 3000
	Max. frame rate	30.7 fps @ 4096 × 3000 Bayer GB 8
	Dynamic range	67.5 dB
	SNR	44.2 dB
	Gain	0 dB to 12 dB
	Exposure time	45 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer GB 8/10/10Packed /12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB 3.0, compatible with USB 2.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports USB 3.0 power supply
	Power consumption	Typ. 2.4 W @ 5 VDC (USB 3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 30 mm (1.1″ × 1.1″ × 1.2″)
	Weight	Approx. 80 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: –10 °C to 50 °C (–14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	MVS or third-party software meeting with USB 3.0 Vision Protocol
	Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
