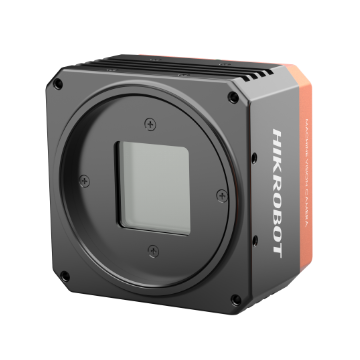

Hikrobot MV-CH250-20CM-M58S-NN Area Scan Camera
Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:
- 5120 × 5120 çözünürlük ve 4,5 μm × 4,5 μm piksel boyutu.
- Geniş dinamik aralık ve yüksek kaliteli görüntü sağlayan global deklanşörlü CMOS sensör kullanılmıştır.
- Camera Link arayüzü üzerinden Tam ve 80 bit yapılandırma modlarını destekler.
- Esnek montaj için montaj deliklerine sahip kompakt tasarım.
Ürün Özellikleri
Seriler
Ölçüler
Software
| Model | Product Model | MV-CH250-20CM-M58S-NN |
| Type | 25MP Area Scan Camera, Camera Link, PYTHON25K, Mono, M58-mount, without fan | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | OnSemi PYTHON25K | |
| Pixel size | 4.5 μm × 4.5 μm | |
| Sensor size | 23 mm × 23 mm | |
| Resolution | 5120 × 5120 | |
| Configuration mode | Full, 80-bit | |
| Tap geometry | 8X_1Y, 10X_1Y | |
| Tap number | 8 Taps, 10 Taps | |
| Max. frame rate | 31.3 fps @ 5120 × 5120 | |
| Pixel clock | 60 MHz, 70 MHz, 85 MHz | |
| Dynamic range | 59 dB | |
| SNR | 41 dB | |
| Gain | 0 dB to 32 dB | |
| Exposure time | 45 μs to 10 sec | |
| Mono | Mono | |
| Pixel format | Mono 8 | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Binning | Not support | |
| Decimation | Not support | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | Camera Link with SDR interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1; Camera Link connector provides I/O (CC1/CC2/CC3/CC4). | |
| Power supply | 9 VDC to 24 VDC | |
| Power consumption | Typ. 9.4 W @ 24 VDC | |
| Mechanical | Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 70 mm × 70 mm × 44.3 mm (2.8″ × 2.8″ × 1.7″) | |
| Weight | Approx. 380 g (0.8 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) | |
| Humidity | 20% RH to 95% RH (no condensation) | |
| General | Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 | |
| Compatibility | Camera Link V2.0, GenlCam | |
| Certification | CE, RoHS, KC |
