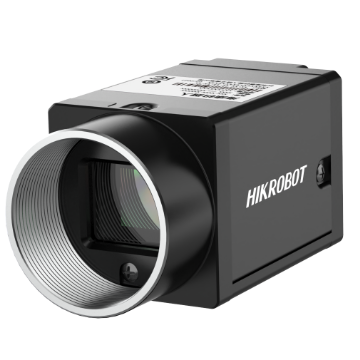

Hikrobot MV-CH089-10GC Area Scan Camera - Ürün Görseli

Ürünler

HİKROBOT OPS-AK6005L Color Smart Camera - Ürün GörseliHİKROBOT OPS-AK6005L Color Smart Camera Hikrobot OPS-SCO3000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot OPS-SCO3000 Serisi Görüntü Sensörü Hikrobot CA Area Scan Camera - Ürün GörseliHikrobot CA Area Scan Camera Hikrobot CE Area Scan Camera - Ürün GörseliHikrobot CE Area Scan Camera Hikrobot CI Area Scan Camera - Ürün GörseliHikrobot CI Area Scan Camera Hikrobot CH Area Scan Camera - Ürün GörseliHikrobot CH Area Scan Camera Hikrobot CU Area Scan Camera - Ürün GörseliHikrobot CU Area Scan Camera Hikrobot CS Area Scan Camera - Ürün GörseliHikrobot CS Area Scan Camera Hikrobot CT Area Scan Camera - Ürün GörseliHikrobot CT Area Scan Camera Hikrobot SC5000X Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC5000X Serisi Görüntü Sensörü Hikrobot SC6000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC6000 Serisi Görüntü Sensörü Hikrobot SC1000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC1000 Serisi Görüntü Sensörü Hikrobot SC2000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC2000 Serisi Görüntü Sensörü Hikrobot SC3000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC3000 Serisi Görüntü Sensörü

Serinin Diğer Ürünleri

Hikrobot MV-CH6040-10XM-M72-NF Area Scan Camera Hikrobot MV-CH1510-10FM-M72-TF Area Scan Camera Hikrobot MV-CH1030-90TC-M58S-NN Area Scan Camera Hikrobot MV-CH1030-90TM-M58S-NN Area Scan Camera Hikrobot MV-CH1010-10CM-M72-TF Area Scan Camera +104 ürün daha

Hikrobot CH Area Scan Camera

Hikrobot MV-CH089-10GC Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

  • LSC, Sequencer, pasif iletim vb. destekler.
  • Renkli kamera, Super Bayer, Super Palette vb. destekler.
  • 4 taraftan esnek montaj için panellerde montaj delikleri bulunan kompakt tasarım.
  • GigE arayüzünü benimser ve röle olmadan maksimum 100 metre iletim mesafesine sahiptir.
  • Donanım tetikleme, yazılım tetikleme, serbest çalışma vb. destekler.
  • GigE Vision Protokolü V2.0, GenlCam Standardı ve bu protokol ve standartlara dayalı üçüncü taraf yazılımlarla uyumludur.

Katalog PDF İndir Katalog Kullanım Kılavuzu PDF İndir Kullanım Kılavuzu
Ürün Özellikleri
Seriler
Ölçüler
Software
Model Product Model MV-CH089-10GC
Type 8.9MP Area Scan Camera, GigE, IMX267, Color, V4
Performance Sensor type CMOS, global shutter
Sensor model Sony® IMX267
Pixel size 3.45 μm × 3.45 μm
Sensor size 1″
Resolution 4096 × 2160
Max. frame rate 13.7 fps @ 4096 × 2160 Bayer RG 8
Dynamic range 70.8 dB
SNR 39.8 dB
Gain 0 dB to 24 dB
Exposure time UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode
Mono/color Color
Pixel format Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Binning Supports 1 × 1, 2 × 2, 4 × 4
Decimation Supports 1 × 1, 2 × 2, 4 × 4
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply 9 VDC to 24 VDC, supports PoE
Power consumption Typ. 2.4 W @ 12 VDC
Mechanical Lens mount C-mount
Dimension 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
Weight 100 g (0.2 lb.)
Ingress protection IP 40 (under proper lens installation and wiring)
Temperature Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity 20% RH to 95% RH (no condensation)
General Client software MVS or third-party software meeting with GigE Vision Protocol
Operating system 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility GigE Vision 2.0, GenlCam
Certification CE, RoHS, KC
