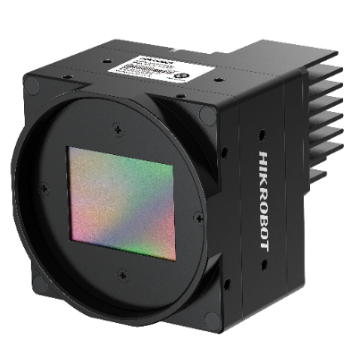

Hikrobot MV-CH120-40XM-M58S-NN Area Scan Camera
Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:
- 4096 × 3072 çözünürlük, 5,5 µm × 5,5 µm piksel boyutu.
- Yüksek dinamik aralık, sinyal-gürültü oranı ve yüksek kaliteli görüntüler sağlamak için global deklanşörlü CMOS sensör kullanılmıştır.
- LSC sıralayıcı yoklama fonksiyonunu destekler.
- Veri iletimi için CXP-6 arayüzü kullanılmıştır.
- CoaXPress Protokolü ve GenlCam Standardı ile uyumludur.
Ürün Özellikleri
Seriler

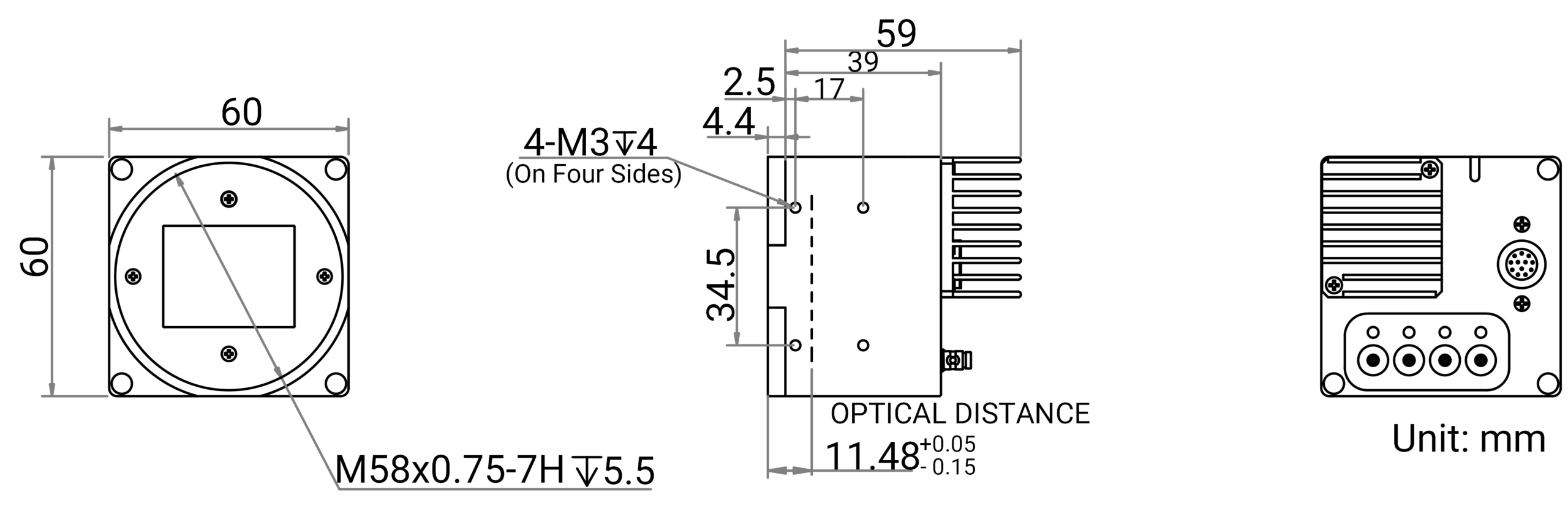

Ölçüler
Software
| Model | Product Model | MV-CH120-40XM-M58S-NN |
| Type | 12MP Area Scan Camera, CMV12000, CXP-6, Mono, M58-mount, Fanless | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | AMS CMV12000 | |
| Pixel size | 5.5 μm × 5.5 μm | |
| Sensor size | 22.5 mm × 16.9 mm | |
| Resolution | 4096 × 3072 | |
| Max. frame rate | 188 fps @ 4096 × 3072 Mono 8 | |
| Dynamic range | 55.2 dB | |
| SNR | 39.5 dB | |
| Gain | Supports 1.0 ×, 2.0 ×, 3.0 ×, 4.0 × | |
| Exposure time | 20 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono | Mono | |
| Pixel format | Mono 8/10 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. | |
| Power supply | 12 VDC to 24 VDC, CXP-1 and CXP-2 support PoCXP | |
| Power consumption | Typ. 11.6 W @ 12 VDC | |
| Mechanical | Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 60 mm × 60 mm × 59 mm (2.4″ × 2.4″ × 2.3″) | |
| Weight | Approx. 269 g (0.6 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 30 °C (32 °F to 86 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) | |
| Humidity | 20% RH to 95% RH (no condensation) | |
| General | Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux | |
| Compatibility | CoaXPress, GenlCam | |
| Certification | CE, RoHS, KC, UL |
