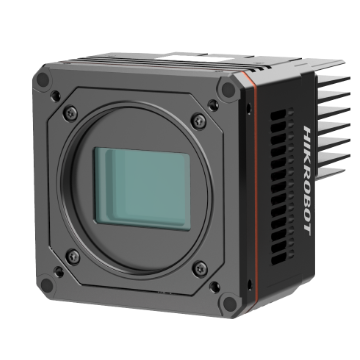

Hikrobot MV-CH650-90YC-M58S-NN Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

  • 9344 × 7000 çözünürlük, 3,2 µm × 3,2 µm piksel boyutu.
  • Yüksek dinamik aralık, sinyal-gürültü oranı ve yüksek kaliteli görüntüler sağlamak için global deklanşörlü CMOS sensör kullanılmıştır.
  • LSC sıralayıcı yoklama fonksiyonunu destekler.
  • Veri iletimi için CXP-12 arayüzünü kullanır.
  • Düz alan düzeltmesini destekler.
  • CoaXPress Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

Katalog PDF İndir Katalog Kullanım Kılavuzu PDF İndir Kullanım Kılavuzu
Ürün Özellikleri
Seriler
Ölçüler
Software
Model Product Model MV-CH650-90YC-M58S-NN
Type 65MP Area Scan Camera, CXP-12, GMAX3265, Color, M58-mount, without fan
Performance Sensor type CMOS, global shutter
Sensor model Gpixel GMAX3265
Pixel size 3.2 μm × 3.2 μm
Sensor size 29.9 mm × 22.4 mm
Resolution 9344 × 7000
Max. frame rate 71 fps @ 9344 × 7000
Dynamic range 66 dB
SNR 40 dB
Gain 1.25x
Exposure time 12 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode
Mono Color
Pixel format Bayer BG 8/10/12
Binning Supports 1 × 1, 2 × 2, 4 × 4
Decimation Supports 1 × 1, 2 × 2, 4 × 4
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface CoaXPress with Micro-BNC interface
Digital I/O 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
Power consumption Typ. 13.2 W@24 VDC
Mechanical Lens mount M58*0.75, flange back length 11.48 mm
Dimension 84 mm × 84 mm × 92.5 mm (3.3″ × 3.3″ × 3.6″)
Weight Approx. 650 g (1.4 lb.)
Ingress protection IP40 (under proper lens installation and wiring)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity 20% RH to 95% RH (no condensation)
General Client software MVS or frame grabber software meeting with CoaXPress Protocol
Operating system 32/64-bit Windows 7/10, 64-bit Windows 11 with 8 GB memory or above
Compatibility CoaXPress, GenlCam
Certification CE, RoHS, KC
