Hikrobot MV-CH089-10UM Area Scan Camera

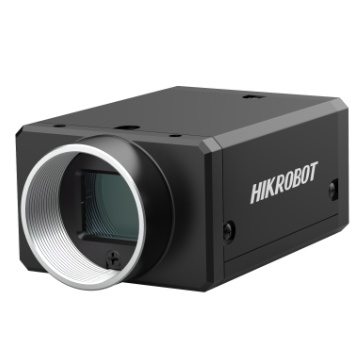

Hikrobot MV-CH089-10UM Area Scan Camera - Ürün Görseli

Hikrobot CH Area Scan Camera

Hikrobot MV-CH089-10UM Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Kazanç, pozlama kontrolü, LUT, gama düzeltmesi vb. için otomatik ve manuel ayarlamayı destekler.
Donanım tetikleme, yazılım tetikleme ve serbest çalışma modunu destekler.
USB3.0 arayüzüne bağlanan kabloyu sabitlemek için M2 vida delikleri kullanır.
USB3 Vision Protokolü, GenlCam Standardı ve bu protokol ve standartlara dayalı üçüncü taraf yazılımlarla uyumludur.

PDF İndir

Katalog PDF İndir

Kullanım Kılavuzu PDF İndir

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CH089-10UM
Model	Type	8.9MP Area Scan Camera, USB3,IMX267,Mono
Performance	Sensor type	CMOS, global shutter
	Sensor model	Sony® IMX267
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1″
	Resolution	4096 × 2160
	Max. frame rate	32 fps @ 4096 × 2160 Mono 8 32 fps @ 4096 × 2160 Bayer GR 8
	Dynamic range	72.5 dB
	SNR	40.1 dB
	Gain	0 dB to 20 dB
	Exposure time	UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB 3.0, compatible with USB 2.0
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	12 VDC, supports USB 3.0 power supply
	Power consumption	Typ. 3.27 W @ 5 VDC (USB 3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	44 mm × 29 mm × 59 mm (1.7″ × 1.1″ × 2.3″)
	Weight	Approx. 100 g (0.2 lb.)
	Ingress protection	IP30 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 80% RH (no condensation)
General	Client software	MVS or third-party software meeting with USB3.0 Vision Protocol
	Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
