Hikrobot MV-CH100-60UC Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

Kazanç, pozlama süresi, beyaz dengesi, LUT, gama düzeltmesi vb. ayarlarının otomatik veya manuel olarak yapılmasını destekler.
Özelleştirilmiş ROI, yatay ve dikey ters görüntü çıktısını destekler.
Donanım tetikleme, yazılım tetikleme, serbest çalışma vb. özelliklerini destekler.
USB3 Vision Protokolü, GenlCam Standardı ve bu protokol ve standartlara dayalı üçüncü taraf yazılımlarla uyumludur.

Katalog PDF İndir

Kullanım Kılavuzu PDF İndir

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

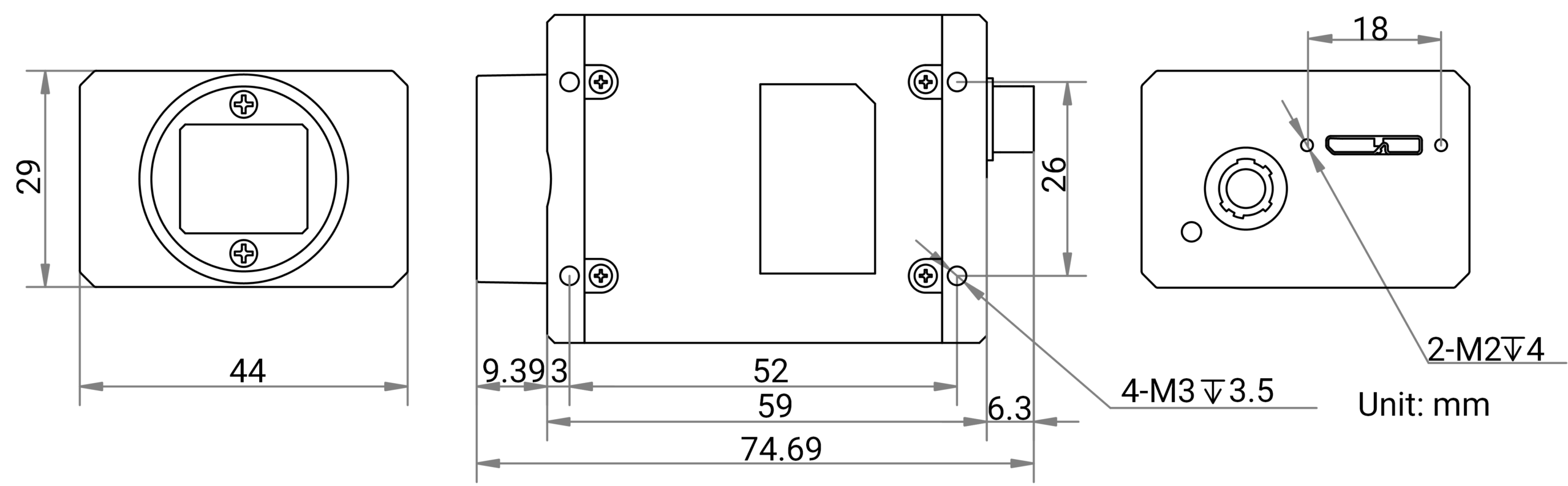

Ölçüler

Software

Model	Product Model	MV-CH100-60UC
Model	Type	10MP Area Scan Camera, Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	Stacked BSI
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	1″
	Resolution	4096 × 2460
	Max. frame rate	36 fps @ 4096 × 2460 Bayer GR 8
	Dynamic range	58.2 dB
	SNR	43 dB
	Gain	0 dB to 24 dB
	Exposure time	80 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer GR 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB 3.0, compatible with USB 2.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports USB power supply
	Power consumption	Typ. 4.0 W @ 5 VDC (USB 3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 44 mm × 59 mm (1.1″ × 1.7″ × 2.3″)
	Weight	Approx. 113 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
	Compatibility	USB3 Vision, GenICam
	Certification	CE, RoHS, KC
